A 5 kg block and a 1 kg block are stacked on top of a spring,...

Question

Question

A 5 kg block and a 1 kg block are stacked on top of a spring, causing it to compress by

0.2 m. The 1 kg block is then removed while the spring is kept compressed at 0.2m.

The 1 kg block is then dropped from 1.5 m above the 5 kg block. When the 1 kg block

hits the 5 kg block, the two blocks stick together. How much further does the spring

compress before the blocks come to a stop?

science physics

Answer 1

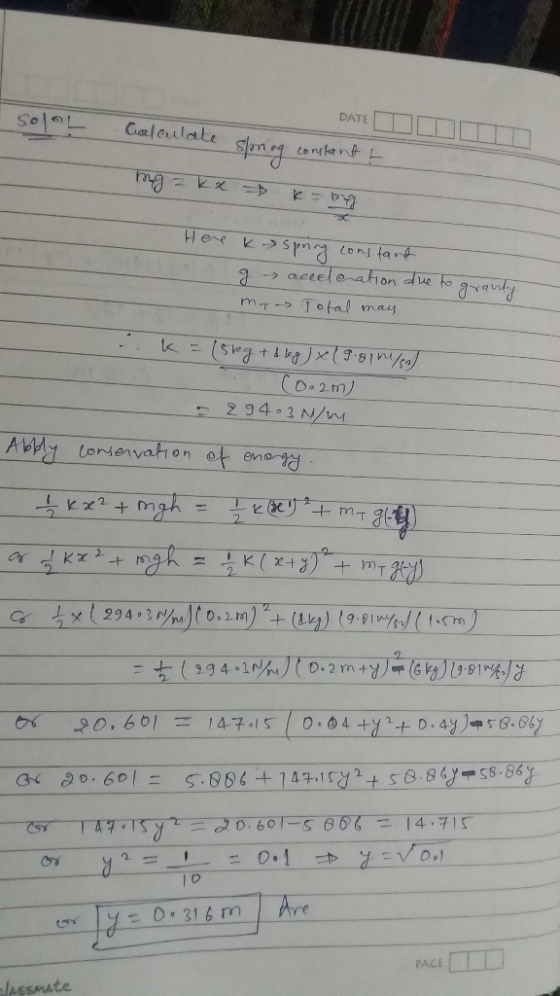

Answer #1

Answer 2
