A hiker ties his 22.0 kg food pack between two trees using two (massless, inextensible) ropes....

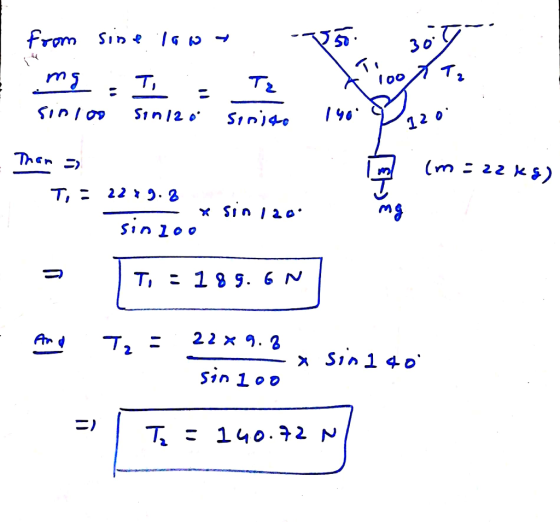

A hiker ties his 22.0 kg food pack between two trees using two (massless, inextensible) ropes. The rope on the left makes an angle of 50◦ with the horizontal, and the rope on the right makes a 30◦ angle with the horizontal. Calculate the tensions in the two ropes.
Homework Answers
Add Answer to:
A hiker ties his 22.0 kg food pack between two trees using two
(massless, inextensible) ropes....
A camper hangs 26-kg pack between two trees using separate ropes of different lengths, as shown...
A camper hangs 26-kg pack between two trees using separate ropes of different lengths, as shown in Flg. 5.32, Find the tension in each rope.
Bethany, who weighs 420 N, lies in a hammock suspended by ropes tied to two trees....
Bethany, who weighs 420 N, lies in a hammock suspended by ropes tied to two trees. The left rope makes an angle of 45∘ with the ground; the right one makes an angle of 30∘. Find the tension in the left rope. Find the tension in the right rope.
Bethany, who weighs 560 N, lies in a hammock suspended by ropes tied to two trees....
Bethany, who weighs 560 N, lies in a hammock suspended by ropes tied to two trees. The left rope makes an angle of 45∘ with the ground; the right one makes an angle of 30∘. A) Find the tension in the left rope. Express your answer with the appropriate units. B) Find the tension in the right rope. Express your answer with the appropriate units.
A 205 N sign is supported by two ropes. One rope pulls up and to the...
A 205 N sign is supported by two ropes. One rope pulls up and to the right ?1=25.5∘ above the horizontal with a tension ?1 , and the other rope pulls up and to the left ?2=47.5∘ above the horizontal with a tension ?2 , as shown in the figure. Find the tensions ?1 and ?2 . Exit sign suspended by two ropes. Rope 1 goes up and to the right, makes an angle theta subscript 1 with the horizontal,...
A 100 kg box is suspended from two ropes. The "left rope makes an angle of...
A 100 kg box is suspended from two ropes. The "left rope makes an angle of 20" degrees with the vertical, and the right rope makes an angle of 40 degrees. What is the tension (in Newtons) on the left rope?
A 3.00-m-long, 140-N, uniform rod at the zoo is held in a horizontal position by two ropes at its ends in (Figure 1)
A 3.00-m-long, 140-N, uniform rod at the zoo is held in a horizontal position by two ropes at its ends in (Figure 1). The left rope makes an angle of 150° with the rod and the right rope makes an angle 9 with the horizontal. A 90- N howler monkey (Alouatta seniculus) hangs motionless 0.50 m from the right end of the rod as he carefully. Make a free-body diagram of the rod. Draw the vectors starting at the black dots. The...
An 80-kg clown sits on a 20-kg bike on a tightrope attached between two trees. The...
An 80-kg clown sits on a 20-kg bike on a tightrope attached between two trees. The center of mass of the clown is 1.6 mabove the rope, and the center of mass of the bike is 0.70 mabove the rope. A load of what mass should be fixed onto the bike and hang 1.50 m below the rope so that the center of mass of the clown-bike-load system is 0.50 m below the rope? What is the force that the...
A nonuniform horizontal bar of mass 15 kg is supported by two massless wires against gravity....
A nonuniform horizontal bar of mass 15 kg is supported by two massless wires against gravity. The left wire makes an angle 35º with the horizontal, and the right wire makes an angle 60°. The bar has a length of 8 m. The bar is in equilibrium. Find: (a) the tension of the left wire (in N); (b) the tension of the right wire (in N); (c) the position of the center of mass of the bar (in m), measured...
A nonuniform horizontal bar of mass 15 kg is supported by two massless wires against gravity....
A nonuniform horizontal bar of mass 15 kg is supported by two massless wires against gravity. The left wire makes an angle 35° with the horizontal, and the right wire makes an angle 60°. The bar has a length of 8 m. The bar is in equilibrium. Find: (a) the tension of the left wire (in N); (b) the tension of the right wire (in N); (c) the position of the center of mass of the bar in m), measured...
A nonuniform horizontal bar of mass 15 kg is supported by two massless wires against gravity....
A nonuniform horizontal bar of mass 15 kg is supported by two massless wires against gravity. The left wire makes an angle 35° with the horizontal, and the right wire makes an angle 60'. The bar has a length of 8 m. The bar is in equilibrium. Find: (a) the tension of the left wire (in N); (b) the tension of the right wire (in N); (c) the position of the center of mass of the bar (in m), measured...
A camper hangs 26-kg pack between two trees using separate ropes of different lengths, as shown in Flg. 5.32, Find the tension in each rope.
A nonuniform horizontal bar of mass 15 kg is supported by two massless wires against gravity. The left wire makes an angle 35º with the horizontal, and the right wire makes an angle 60°. The bar has a length of 8 m. The bar is in equilibrium. Find: (a) the tension of the left wire (in N); (b) the tension of the right wire (in N); (c) the position of the center of mass of the bar (in m), measured...
A nonuniform horizontal bar of mass 15 kg is supported by two massless wires against gravity. The left wire makes an angle 35° with the horizontal, and the right wire makes an angle 60°. The bar has a length of 8 m. The bar is in equilibrium. Find: (a) the tension of the left wire (in N); (b) the tension of the right wire (in N); (c) the position of the center of mass of the bar in m), measured...
A nonuniform horizontal bar of mass 15 kg is supported by two massless wires against gravity. The left wire makes an angle 35° with the horizontal, and the right wire makes an angle 60'. The bar has a length of 8 m. The bar is in equilibrium. Find: (a) the tension of the left wire (in N); (b) the tension of the right wire (in N); (c) the position of the center of mass of the bar (in m), measured...
