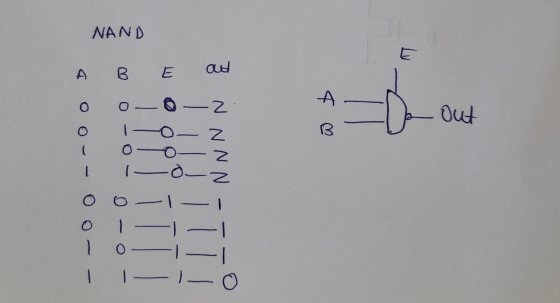

Draw a transistor-level tri-state NAND gate. (An enable should allow it to output a Z value.)

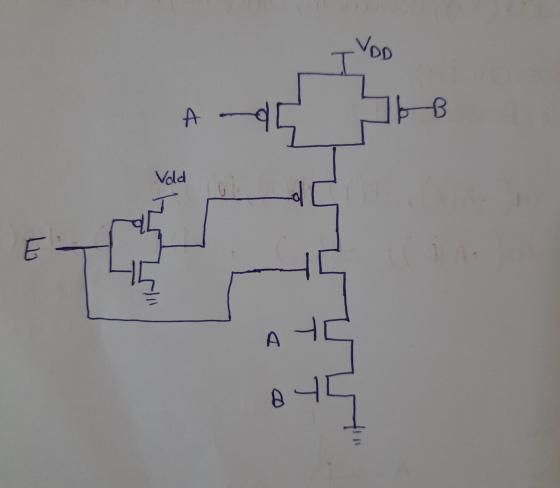

Draw a transistor-level tri-state NAND gate. (An enable should allow it to output a Z value.)
3. Consider a tri-state inverter with an active-high enable. (So the output of the buffer is enabled when the enable signal is high, and is in tri-state when the enable signal is low.) Complete the truth table. En A Out 0 0 0 1 10 AoOut En (active high) 4. Consider an open-collector buffer. Complete the truth table. A OU 1 AO-Out
1.) In a CMOS NAND gate, if only one PMOS is ON, the output is low voltage (logic 0) High voltage (logic high) depends on the state of NMOS none of the other choices 2.) An NMOS with the drain connected to a 10V and source connected to ground can be turned on by applying a gate to source voltage of VGS= 0V VGS= 10V VGS= -10V None of the other choices. 3.) For the operation of enhancement type n...
using 4 to 1 line multiplaxors that have tri-state outputs with an active low enable input,along with a 2 to 4 line active low output decoder, draw a schematic block diagram of a 16 to 1 multiplexor
2. Domino Logic Sketch the transistor level schematic of a single domino gate that implements the function Y-(A)+ (C-D). The dynamic section of the domino gate should use a foot transistor. (4 points) a) b) Size the transistors so that the dynamic section has the pull-down strength of a unit inverter and the high-skew inverter has the pull-up strength of a unit inverter. (5 points) c) What is the path logical effort G and path parasitic delay P for a...
a) Draw an SR-latch using only NAND gates. Label each input and output, and label all wires with a name if the wire does not connect to any input or output b) Describe the behavior of the latch when S and R are both 0. What is the output of each gate? c) Assuming that the latch starts with S = R = 0, write down the sequence of what happens when R = 1. Discuss changes at each point...
Please answer every part
1) Six Transistor CMOS Logic Circuit, Z-output; A, B, C are the inputs. 15 pts The three P-devices are connected as follows: Q2S-5V; Q2D-Q4S Q6S; Q4D-Q6D-Z. The three N-devices are connected as follows: QiS-GND Q3D-Q5S Q3S GNDQID-Q5D-Z The three inputs are connected as follows: A-QIG-Q2G; B-Q3G-Q4G; C Q5G Q6G. a) Draw the CMOS circuit. 3 pts b) Draw the function table for the three inputs, the six transistors and the output, Ζ. Use 0 for an...
Draw the gate level circuit schematic of a D flip-flop and a T flip-flop based on the cross-coupled NAND latch. Briefly discuss the timing behavior of a D flip-flop, a T flip-flop and a latch. (a) (8 Marks) circuit has three inputs, S, C and C2. S is the control input. When S-O, the circuit behaves like a D flip-flop, and when S-1, the circuit behaves like a T flip-flop. The input characteristics of the circuit are tabulated in Table...
Given the following truth table, where X, Y, and Z are input and
W is output, write the canonical expression and generate gate-level
logical circuit (draw the wire diagram).
Given the following truth table, where X, Y, and Z are input and W is output, write the canonical expression and generate gate-level logical circuit (draw the wire diagram). 0 01 0 0 100O 0 110 (0
design a logic gate level 14X1 multiplexer . your design should show the connections between the selection lines.the different inputs and output line input pins to the eight output pins using the required logic gate
(C) State the value of Q for each combination of X, Y, Z. In each
case give the value of
Q after there are no more changes due to gate delays.
I. Set X = 0, Y = 0, Z = 0. After all the changes due to gates
delays what is Q?
II. Change Z to 1. After all the changes due to gate delays what is
the value of Q?
III. Change Y to 1. After all the...
