Question

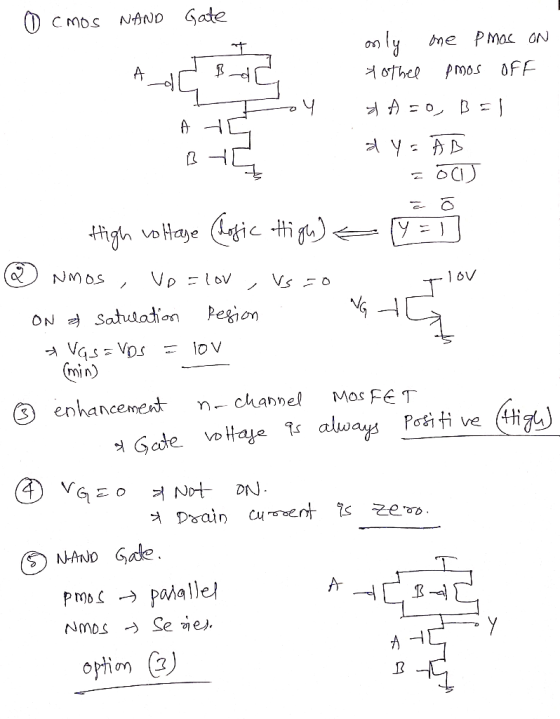

1.) In a CMOS NAND gate, if only one PMOS is ON, the output is low...

1.) In a CMOS NAND gate, if only one PMOS is ON, the output is

low voltage (logic 0)

High voltage (logic high)

depends on the state of NMOS

none of the other choices

2.) An NMOS with the drain connected to a 10V and source connected to ground can be turned on by applying a gate to source voltage of

VGS= 0V

VGS= 10V

VGS= -10V

None of the other choices.

3.) For the operation of enhancement type n channel MOSFET, the value of the gate voltage must be

High positive

High negative

Low positive

Zero

4.) With the enhancement type MOSFET when gate input voltage is zero, drain current is

at saturation

zero

IDSS

widening the channel

5.) A CMOS NAND gate can be constructed by connecting PMOS in ______ and NMOS in _______

Series, series

Series, parallel

Parallel, series

Parallel, parallel

NO SOLUTIONS NEEDED. Thank you!
