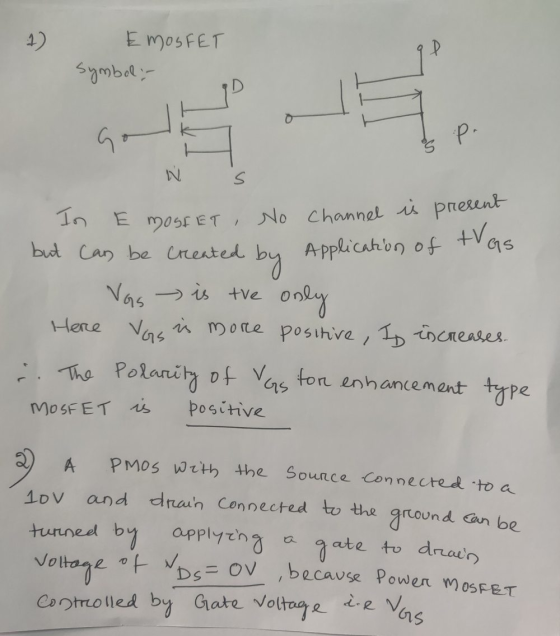

1) The polarity of VGS for enhancement type MOSFET is _________

Positive

Negative

Zero

Depends on p channel or n channel

Zero

Depends on p channel or n channel

2.) A PMOS with the source connected to a 10V and drain connected to ground, can be turned on by applying a gate to drain voltage of _______

VDS= 0V

VDS=10V

VDS=20V

None of the other choices

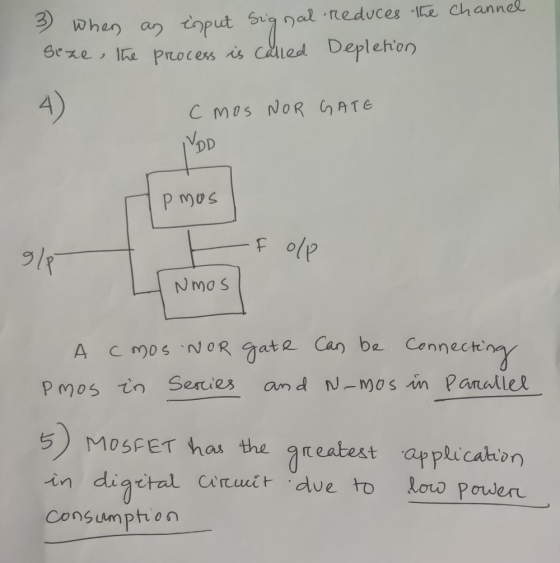

3.) When an input signal reduces the channel size, the process is called

Enhancement

substrate connecting

gate charge

depletion

4.) A CMOS NOR gate can be constructed by connecting PMOS in _______ and NMOS in ________

Series, series

Series, parallel

Parallel, series

Parallel,parallel

5.) MOSFET has the greatest application in digital circuit due to

low power consumption

less noise

Small amount of space it takes on a chip

All of the choices
