Question

A bridge-connected rectifier is fed from a 230 kV/120 kV transformer from the 230 kV supply....

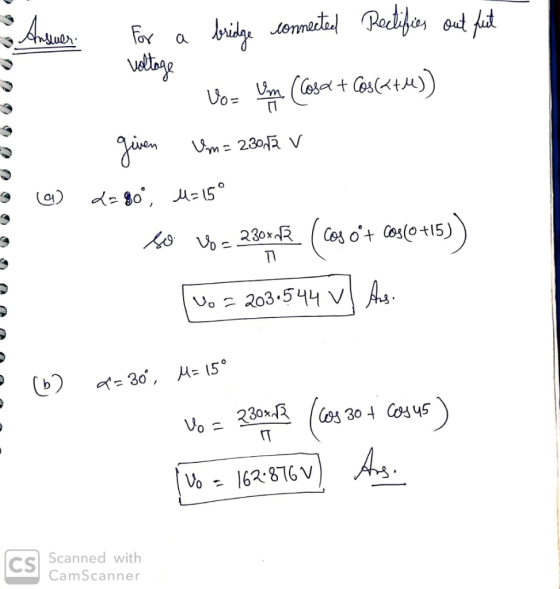

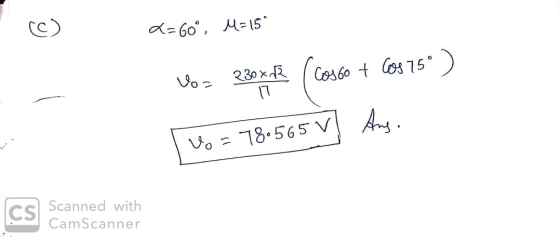

A bridge-connected rectifier is fed from a 230 kV/120 kV transformer from the 230 kV supply. Calculate the direct voltage output when the commutation angle is 15° and the delay angle is (a) 0°; (b) 30°; (c) 60°.

0 0
Add a comment Improve this question Transcribed image text
Know the answer?
Add Answer to:
A bridge-connected rectifier is fed from a 230 kV/120 kV transformer from the 230 kV supply....
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions
  • The three-phase bridge rectifier is designed to produce 650kV of the output voltage from 450 kv/s5o kv, 50 Hz of the tr...

    The three-phase bridge rectifier is designed to produce 650kV of the output voltage from 450 kv/s5o kv, 50 Hz of the transmission transformer. Then c) determine; The firing angle α required for the rectifier's valve if no commutation ./i/ angle is involved. The new necessary line secondary voltage of the transformer, if a- and u 60 are being applied. If the new transformer reactance is 2.8 H, determine the load DC current of this rectifier (consider the firing angle same...

  • A 3-j semi-controlled bridge rectifier is fed from a delta-star transformer 66 kVA, 60 Hz, 13800 ...

    A 3-j semi-controlled bridge rectifier is fed from a delta-star transformer 66 kVA, 60 Hz, 13800 V/? (the secondary voltage is unknown). The load of the rectifier is highly inductive. The following measurements at a specified firing angle have been recorded: Ith RMS 70.71 A I line RMS (transformer secondary) 76.40 A Draw the complete circuit diagram and calculate; i. Load current Io. ii. Firing angle α. iii. Transformer secondary line voltage (RMS). iiii. Average output voltage (at the calculated...

  • A 3-j semi-controlled bridge rectifier is fed from a delta-star transformer 66 kVA, 60 Hz, 13800...

    A 3-j semi-controlled bridge rectifier is fed from a delta-star transformer 66 kVA, 60 Hz, 13800 V/? (the secondary voltage is unknown). The load of the rectifier is highly inductive. The following measurements at a specified firing angle have been recorded: Ith RMS 70.71 A I line RMS (transformer secondary) 76.40 A Draw the complete circuit diagram and calculate; i. Load current Io. ii. Firing angle α. iii. Transformer secondary line voltage (RMS). iiii. Average output voltage (at the calculated...

  • Question 4 (15 marks) Figure 4 shows a single-phase diode bridge rectifier supplied from the 230...

    Question 4 (15 marks) Figure 4 shows a single-phase diode bridge rectifier supplied from the 230 V, 50 Hz mains via a step- down transformer D2 D SW + n: 1 + 230 V 33mF 20 0 Vo 50 Hz D3 D4 Figure 4 (a) Assuming that the switch SW is open, explain the operation of the rectifier in figure 4 with the aid of the waveforms of the input and output voltages (v, and v) [4 marks (b) With...

  • Capacitor is connected to secondary (1) A fullwave bridge rectifier power supply is powered from the secondary of a transformer which has a peak secondary voltage of 22V. The primary of the transforme...

    Capacitor is connected to secondary (1) A fullwave bridge rectifier power supply is powered from the secondary of a transformer which has a peak secondary voltage of 22V. The primary of the transformer is connected to a 50Hz, 230Vus power supply. A 2700μF filter capacitor is used. A current of 1.5 Amp is drawn from the supply (i) Sketch a schematic diagram of the setup (ii) Calculate the mean dc output voltage (ii) Assume that each diode conducts for one-twelfth...

  • D *4.80 It is required to use a peak rectifier to design a de power supply...

    D *4.80 It is required to use a peak rectifier to design a de power supply that provides an average de output voltage of 12 V on which a maximum of ±1-V ripple is allowed. The rectifier feeds a load of 200 2. The rectifier is fed from the line voltage (120 V rms, 60 Hz) through a transformer. The diodes available have 0.7-V drop when conducting. If the designer opts for the half-wave circuit: (a) Specify the rms voltage...

  • i want the answer with detales Single-Phase Controlled Rectifier Exercise Derive the expressions of the average...

    i want the answer with detales Single-Phase Controlled Rectifier Exercise Derive the expressions of the average load voltage and current in single-phase half-wave controlled rectifiers and resistive load. Draw the waveforms of supply voltage. output voltage, output current, thyristor voltage and thyristor current Exercise In a single-phase half-wave controlled rectifier and resistive kad, it is desired to get an average load voltage of 80 V. Determine the firing angle if the ac supply voltage is 230 V. If the load...

  • can you calculate and explain why? thanks A single-phase thyristor rectifier as 50 Hz source. The...

    can you calculate and explain why? thanks A single-phase thyristor rectifier as 50 Hz source. The rectifier delivers a DC voltage of 150 V to a highly inductive depicted in Figure 1 is fed from a 220 V rms, 1. load with a resistive value of 10 Q. SCR, T SCR2 + is Vo SCR3 SCR T Figure 1 (a) for a delay angle component indicating its phase shift with respect to the input voltage v, Sketch the net rectifier...

  • 1) A classical rectifier uses a standard 120 V/25.2 V 60 Hz transformer. What ideal output...

    1) A classical rectifier uses a standard 120 V/25.2 V 60 Hz transformer. What ideal output DC voltage will result if a single-phase full-wave diode bridge is used with a large capacitor and the input is exactly 120 Vrms? Assume each diode's forward voltage drop is 1 V. Design a capacitor if the load is 50 W and the voltage ripple is 1 V peak-peak?

  • In a full wave bridge rectifier, input voltage is 110sin(2pi60t) V, Vd=0.7V. The transformer turn ratio...

    In a full wave bridge rectifier, input voltage is 110sin(2pi60t) V, Vd=0.7V. The transformer turn ratio is 10:1. What is the amplitude of output voltage? What is the maximum voltage across diode which is off? For load of 5kohm, calculate C for Vr of 1V.
