Design the following types of counters using only D

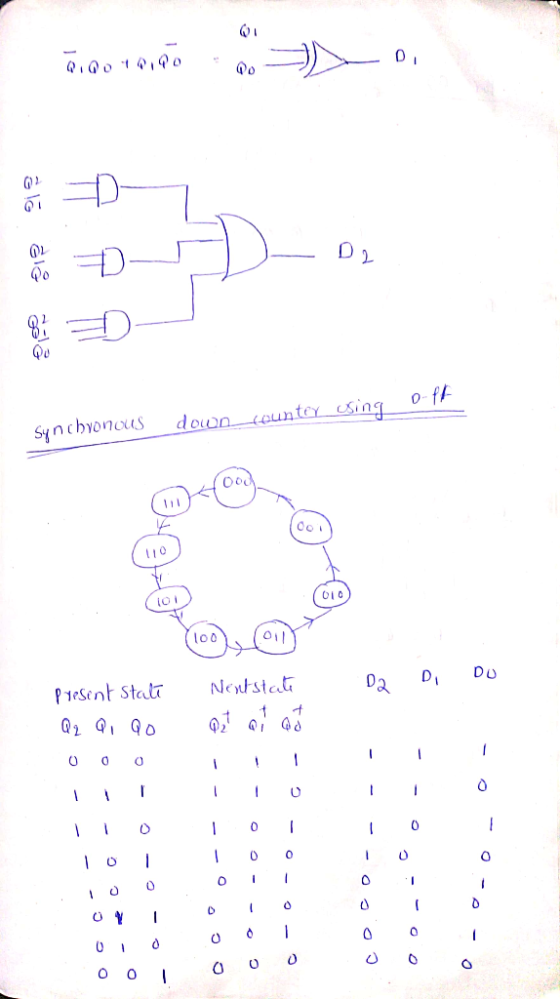

flip flops:

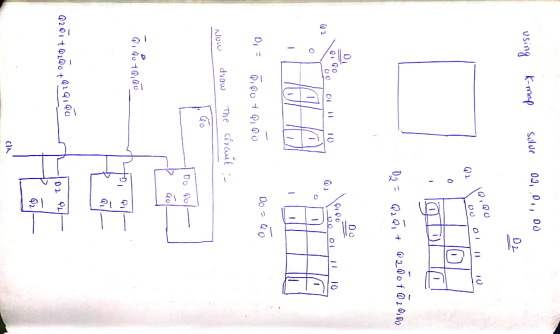

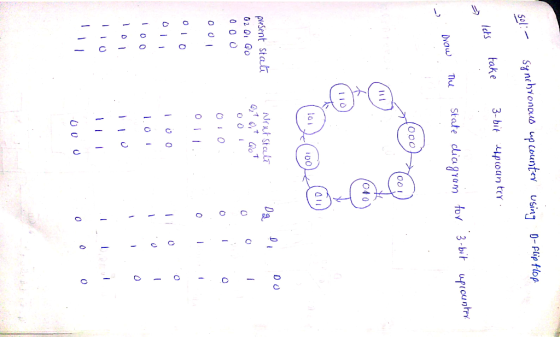

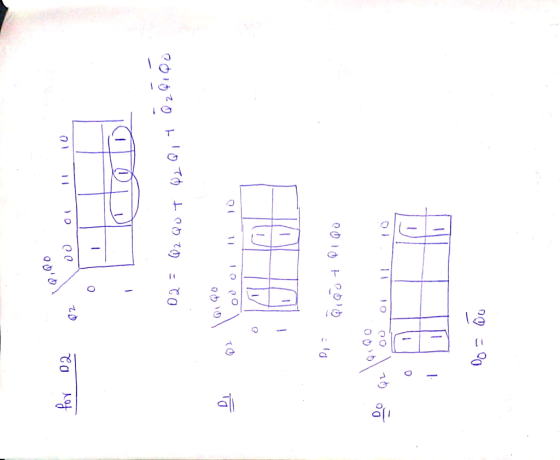

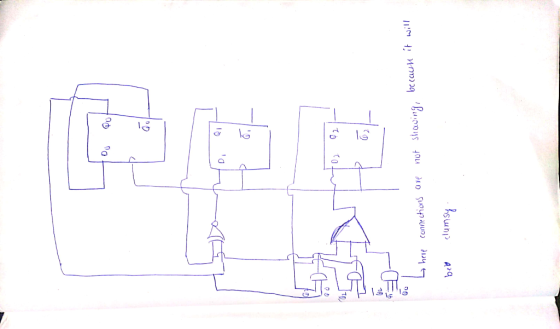

(A) synchronous binary up counter
(B)synchronous binary down counter

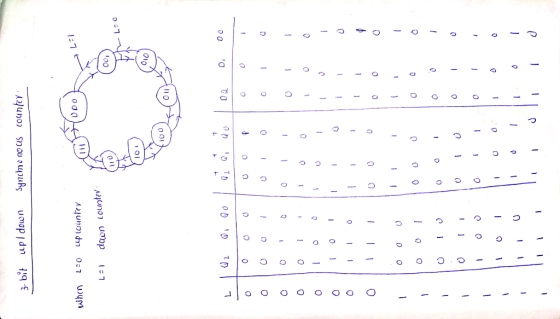

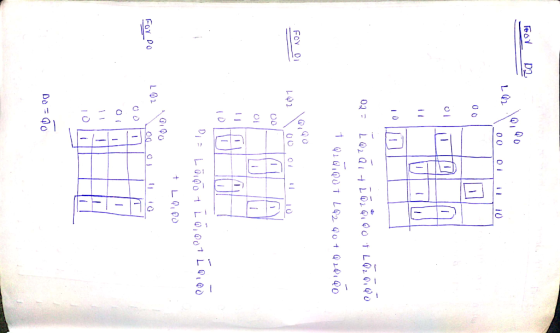

(C)synchronous binary up-down counter
Design the following types of counters using only D flip flops: (A) synchronous binary up counter...
Design a Synchronous 3 bits UP Counter using D type flip flops. 1- Complete table 1, 2- Draw k map 3- Draw the 3 bits up counter circuit using D type flipflop
2. Synchronous Counters: a. Design a count up/count down counter that counts from 0 up to 4, then 4 down to 0 using D flip flop. b. Design a count up counter that counts from 0 up to 12 using JK flip flops.
Q2) 4-bit Synchronous Counter Using Proteus, design Synchronous 4 bit Up binary counter using JK flip flops (Use 74HC76 JK flipflop). The circuit count from 0000 to 1111, etc. Experiment procedure: طريقة اجراء التجربة a) Complete the circuit. You can use external gates based on the following conditions: o Flipflop A switches every clock. o Flipflop B switches when the output of flipflop A=1 o Flipflop C switches when the outputs of A-B=1 o Flipflop D switches when the outputs of A=B=C=1 b) What is the typical feature of...
(a) Design an asynchronous Binary Coded Decimal (BCD) count-up counter using JK flip-flops. Draw the counter circuit clearly showing the configuration of the JK flip-flops and the necessary logic gate(s). Sketch the input and output waveforms of this counter (7 Marks) (b) The binary up/down counter for a cargo lift controller in a 7-storey building has an up-down (UID) control input and a buzzer output (B). The buzzer will sound B 1) when the lift is at level 1 or...
Design serial (asynchronous) counter modulo 7 using synchronous flip-flops (T, D or JK). The counter should count up.
Design a two-bit up/down binary counter using D flip-flops that can count in binary from 0 to 7. When the control input x is 0, the circuit counts down, and when it is 1, the circuit counts up. (a) Obtain the state table of the two-bit counter. (b) Obtain the state diagram (c) Draw the logic diagram of the circuit.

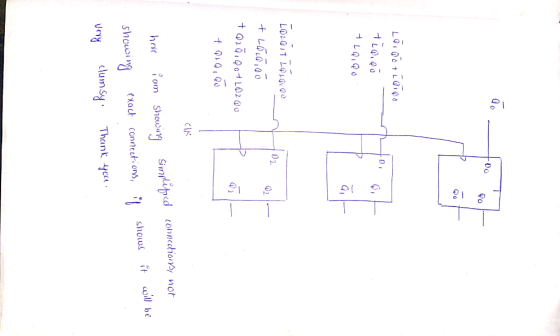

4 (30 pts): Synchronous 3-digit counters based on T flip-flops Write down the input logic functions for three T flip-flops for 3-digit synchronous up-counter. 2) Write down the input logic functions for three T flip-flops for 3-digit synchronous down- counter. 3) Draw the schematic of a synchronous 3-digit up/down counter, which can count either upward or downward, controlled by a control signal up/down
Design a 4-bit binary up counter (like the following state diagram) using JK flip flops. State diagram. 0000 0001 11111 (a) Draw the state table with the input values for J K flip flops(b) Simplify the input equations by K map (c) Draw the logic diagram
Design a non-sequential synchronous counter using a positive
edge triggered JK Flip Flops for the following output
0?2?3?5?4?7?6?0
Design a non-sequential synchronous counter using positive edge triggered JK Flip Flops for the following output 0 rightarrow 2 rightarrow 3 rightarrow 5 rightarrow 4 rightarrow 7 rightarrow 6 rightarrow 0
9) Using JK flip flops and in the space below, design a synchronous counter that counts up from 0 to 5 and recycles to 0. (Positive edge triggered, PRE & CLR active low) Show all connections except the power and ground inputs to the flip flops.
