subject: (digital circuit: REGISTER, SYNCHRONOUS COUNTER AND ASYNCHRONOUS COUNTER.) Question: 1. Explain about SISO, SIPO, PISO,...
subject: (digital circuit: REGISTER, SYNCHRONOUS COUNTER
AND
ASYNCHRONOUS COUNTER.)
Question:

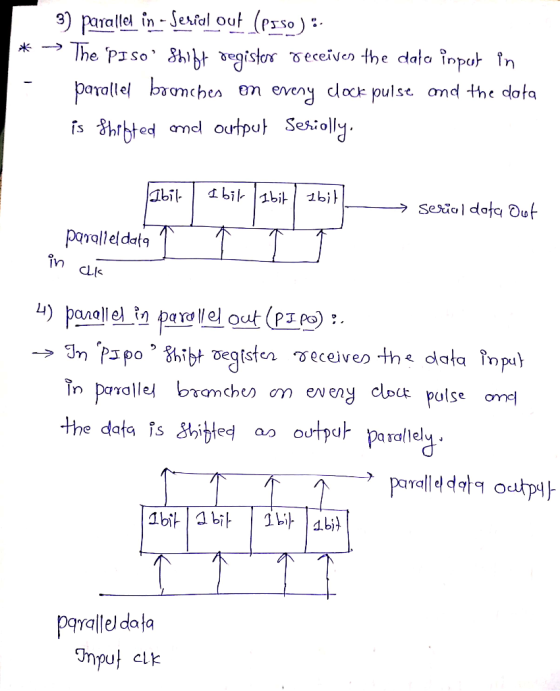

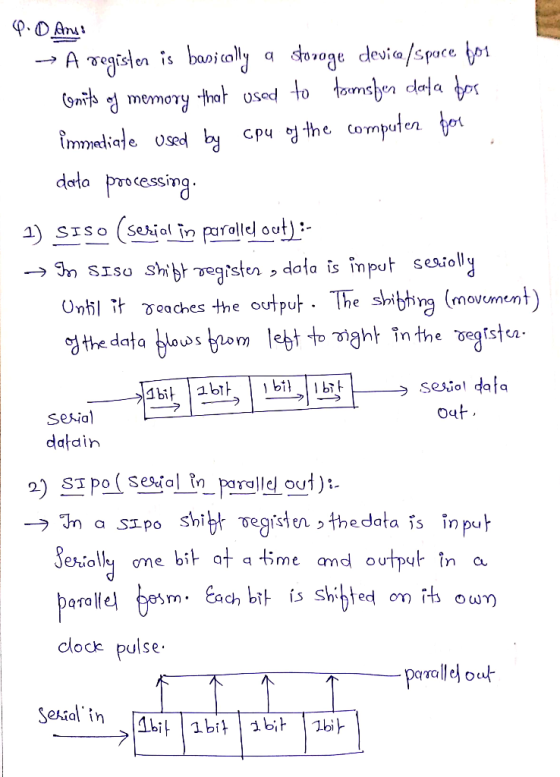

1. Explain about SISO, SIPO, PISO, PIPO, and how it works!
Simulate!

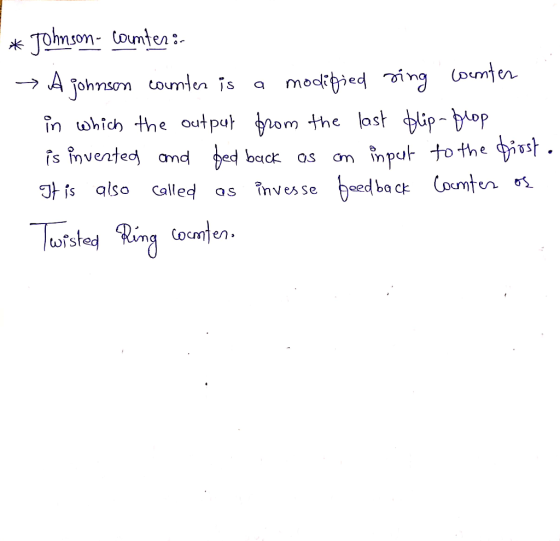

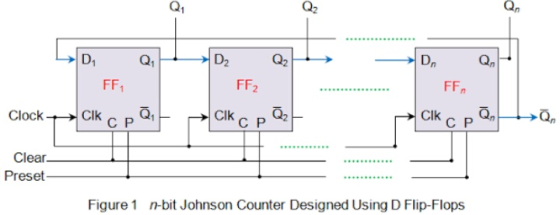

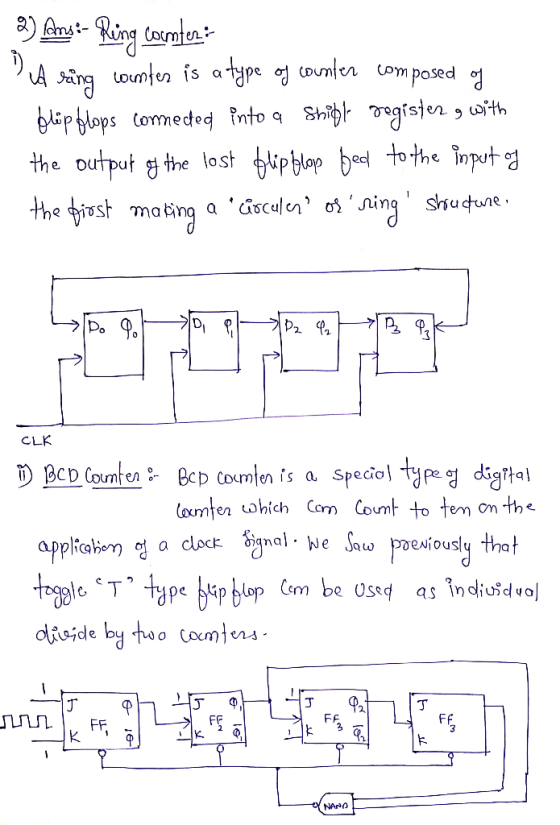

2. Create a series of Shift Register Ring Counter, BCD Counter, and
Johnson Counter!
Homework Answers
Add Answer to:
subject: (digital circuit: REGISTER, SYNCHRONOUS COUNTER
AND
ASYNCHRONOUS COUNTER.)
Question:
1. Explain about SISO, SIPO, PISO,...
17. The 74195 in Figure 17 is a synchronous load, 4-bit parallel-access shift register. For this exercise, the input data is loaded at the first active clock edge. (12 pts) 74195 DSTM2 SH/LD QB 1...
17. The 74195 in Figure 17 is a synchronous load, 4-bit parallel-access shift register. For this exercise, the input data is loaded at the first active clock edge. (12 pts) 74195 DSTM2 SH/LD QB 13 QC QD DSTMI 10t CLK ㅡㅡㅡ CLR Figure 17 Use the circuit of Figure 17 to answer the following questions: a. Is this a ring counter or a Johnson counter? (2 pts) b. How many different states are available? (2 pts) Draw the timing diagram...
17. The 74195 in Figure 17 is a synchronous load, 4-bit parallel-access shift register. For this exercise, the input data is loaded at the first active clock edge. (12 pts) 74195 DSTM2 SH/LD 2 15...
17. The 74195 in Figure 17 is a synchronous load, 4-bit parallel-access shift register. For this exercise, the input data is loaded at the first active clock edge. (12 pts) 74195 DSTM2 SH/LD 2 15 QC DSTMI 10 CLK CLR Figure 17 Use the circuit of Figure 17 to answer the following questions: a. Is this a ring counter or a Johnson counter? (2 pts) b. How many different states are available? (2 pts) Draw the timing diagram (four clock...
subject: (digital circuit: Sequential LOGIC CIRCUIT.) Question: 1. Write the program code in VHDL to create...
subject: (digital circuit: Sequential LOGIC CIRCUIT.) Question: 1. Write the program code in VHDL to create a simple OR application with 3 input , complete with its library, entity and architecture! 2. Explain the working principle of PAL and GAL! Search the IC GAL22V10D datasheet! and also Draw and explain the function of the legs of IC GAL22V10D!
Consider the circuit in Figure 1. It is a 4-bit (QQ2Q3) synchronous counter which uses four T-typ...
Consider the circuit in Figure 1. It is a 4-bit (QQ2Q3) synchronous counter which uses four T-type flip-flops. The counter increases its value on each positive edge of the clock if the Enable signal is asserted. The counter is reset to 0 by setting the Clear signal low. You are to implement an 8-bit counter of this type Enable T Q Clock Clear Figure 1. 4-bit synchronous counter (but you need to implement 8-bit counter in this lab) Specific notes:...
Question 1 (20 Mark) a) Construct a 5 bit ring counter using rising edge triggered D Flip-flops b...
This is digital electronics subject. answer all subquestions
Question 1 (20 Mark) a) Construct a 5 bit ring counter using rising edge triggered D Flip-flops b) Sketch the output waveform for this ring counter for two complete cycles, given that the (7 Mark) initial value is 00001 (10 Mark) c) Explain the weaknesses of a ring counter and suggest how weaknesses of a ring counter can be overcome? (3 Mark)
Question 1 (20 Mark) a) Construct a 5 bit ring...
Subject - Fluid Power Control Request - Please explain how the below circuit works in detail understandable way A(1....
Subject - Fluid Power Control
Request - Please explain how the below circuit works in detail
understandable way
A(1.0) B(2.0) a0 a1 bo 61 1.1 2.1 2 2 B- 4 4 A B+ A- Start FriY CHtA SV 3 A1 1 Group 2 Group 1 II I G2 a1 (line1) ao (line2) b1 (line 3) bo (line 4) bo b1 a0 a1 2 al & b1 Connected to group X ao & bo Connected to group X
A(1.0) B(2.0) a0...
Determine the period number of the ufk-4 cos(K+TT/2) discrete time signal! Select one: O A. 34 O ...
Determine the period number of the ufk-4 cos(K+TT/2) discrete time signal! Select one: O A. 34 O D. Non periodic O E. 34/3 A coil (L 5 mH) is parallel connected to two serially connected resistors (6 kΩ and 4 k2). Calculate the time constant of the above two-pole! Select one: Ο Α.0.5s OC. 5 s Ο D. 0.5 με Ο Ε.0.5 Ms Consider the following sequential network: Z2 Di Ct ㄍ洼 S2 Q2 CLK Choose which function does this...
A retaining wall is to be constructed in a normally consolidated clayey sand deposit in the...
A retaining wall is to be constructed in a normally consolidated clayey sand deposit in the figure below. Ground water table is lmbelow the bottom of the excavation. A 20 kN/m2 surcharge pressure is applied over a wide area at the ground surface. Assume the wall moves into the excavation. Consider long-tem analysis (as it is usually the more critical analysis in excavation problems). Ignore capillarity as shown 20 kPa Clayey sand T17 kNm Y-20 kNm 5 m c'-10 kPa...
Please see the articles below… 1. What is your opinion on the subject? 2. Which ethical views (i.e.,...
Please see the articles below… 1. What is your opinion on the subject? 2. Which ethical views (i.e., utilitarian view, moral rights view, justice view, practical view) you feel are being used by both sides of the argument (i.e., for and against downloading) to justify their positions? High Court Enters File-Sharing Spat; Justices Must Determine Software Providers' Liability For Copyright Violations by Anne Marie Squeo. Wall Street Journal. (Eastern edition). New York, N.Y.: Mar 30, 2005. pg. A.2 WASHINGTON -- The Supreme...
please help answer these Financial Analysis Exercise #1 You are the newest Financial Analyst in Investments,...
please help answer these Financial Analysis Exercise #1 You are the newest Financial Analyst in Investments, you need to demonstrate your prowess in Excel, your outstanding written skills and ability to communicate. Mr. Richards is the Executive Vice President and Chief Investment officer in your new firm. You are being asked to complete a series of “pet” projects for Mr. Richards. You have been told not to try to impress him, just do the work and stick to the facts....
17. The 74195 in Figure 17 is a synchronous load, 4-bit parallel-access shift register. For this exercise, the input data is loaded at the first active clock edge. (12 pts) 74195 DSTM2 SH/LD QB 13 QC QD DSTMI 10t CLK ㅡㅡㅡ CLR Figure 17 Use the circuit of Figure 17 to answer the following questions: a. Is this a ring counter or a Johnson counter? (2 pts) b. How many different states are available? (2 pts) Draw the timing diagram...
17. The 74195 in Figure 17 is a synchronous load, 4-bit parallel-access shift register. For this exercise, the input data is loaded at the first active clock edge. (12 pts) 74195 DSTM2 SH/LD 2 15 QC DSTMI 10 CLK CLR Figure 17 Use the circuit of Figure 17 to answer the following questions: a. Is this a ring counter or a Johnson counter? (2 pts) b. How many different states are available? (2 pts) Draw the timing diagram (four clock...
Consider the circuit in Figure 1. It is a 4-bit (QQ2Q3) synchronous counter which uses four T-type flip-flops. The counter increases its value on each positive edge of the clock if the Enable signal is asserted. The counter is reset to 0 by setting the Clear signal low. You are to implement an 8-bit counter of this type Enable T Q Clock Clear Figure 1. 4-bit synchronous counter (but you need to implement 8-bit counter in this lab) Specific notes:...
This is digital electronics subject. answer all subquestions
Question 1 (20 Mark) a) Construct a 5 bit ring counter using rising edge triggered D Flip-flops b) Sketch the output waveform for this ring counter for two complete cycles, given that the (7 Mark) initial value is 00001 (10 Mark) c) Explain the weaknesses of a ring counter and suggest how weaknesses of a ring counter can be overcome? (3 Mark)
Question 1 (20 Mark) a) Construct a 5 bit ring...
Subject - Fluid Power Control
Request - Please explain how the below circuit works in detail
understandable way
A(1.0) B(2.0) a0 a1 bo 61 1.1 2.1 2 2 B- 4 4 A B+ A- Start FriY CHtA SV 3 A1 1 Group 2 Group 1 II I G2 a1 (line1) ao (line2) b1 (line 3) bo (line 4) bo b1 a0 a1 2 al & b1 Connected to group X ao & bo Connected to group X
A(1.0) B(2.0) a0...
Determine the period number of the ufk-4 cos(K+TT/2) discrete time signal! Select one: O A. 34 O D. Non periodic O E. 34/3 A coil (L 5 mH) is parallel connected to two serially connected resistors (6 kΩ and 4 k2). Calculate the time constant of the above two-pole! Select one: Ο Α.0.5s OC. 5 s Ο D. 0.5 με Ο Ε.0.5 Ms Consider the following sequential network: Z2 Di Ct ㄍ洼 S2 Q2 CLK Choose which function does this...
A retaining wall is to be constructed in a normally consolidated clayey sand deposit in the figure below. Ground water table is lmbelow the bottom of the excavation. A 20 kN/m2 surcharge pressure is applied over a wide area at the ground surface. Assume the wall moves into the excavation. Consider long-tem analysis (as it is usually the more critical analysis in excavation problems). Ignore capillarity as shown 20 kPa Clayey sand T17 kNm Y-20 kNm 5 m c'-10 kPa...
