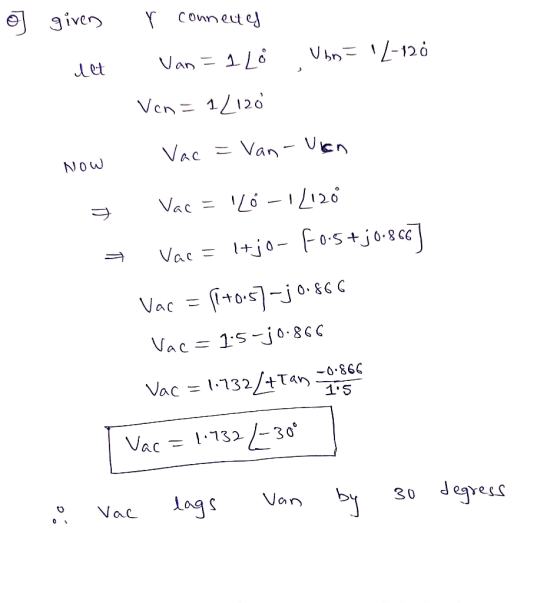

1 In a star-connected three-phase circuit, the line voltage Vac lags the phase voltage Van by...
1 In a star-connected three-phase circuit, the line voltage Vac lags the phase voltage Van by
a)30
b)90
c)180
d)210
the answer is a but how?
Homework Answers
Add Answer to:
1 In a star-connected three-phase circuit, the line voltage Vac
lags the phase voltage Van by...
