industrial power plant requires 3.301 lb of dry saturated steam per second at 329 F for...

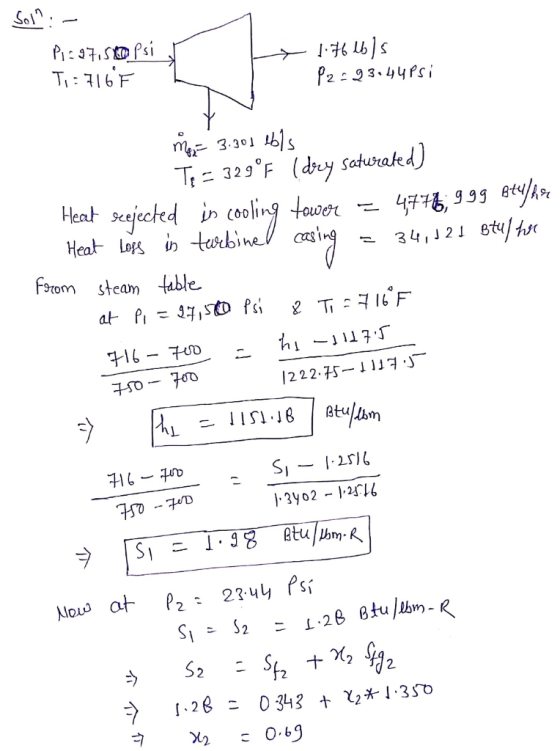

industrial power plant requires 3.301 lb of dry saturated steam
per second at 329 F for a heating pur
poses. This steam
may be supplied from an extraction turbine which receives steam at
27,580 psi and 716 F and is
exhausted to a condenser at the rate of 1.76 lb/s of steam at 23.44
psi while
rejecting 4,776,999.00 Btu/hr to the cooling tower. If the
mechanical efficiency of the
turbine- generator is 95% and that the heat loss in the turbine

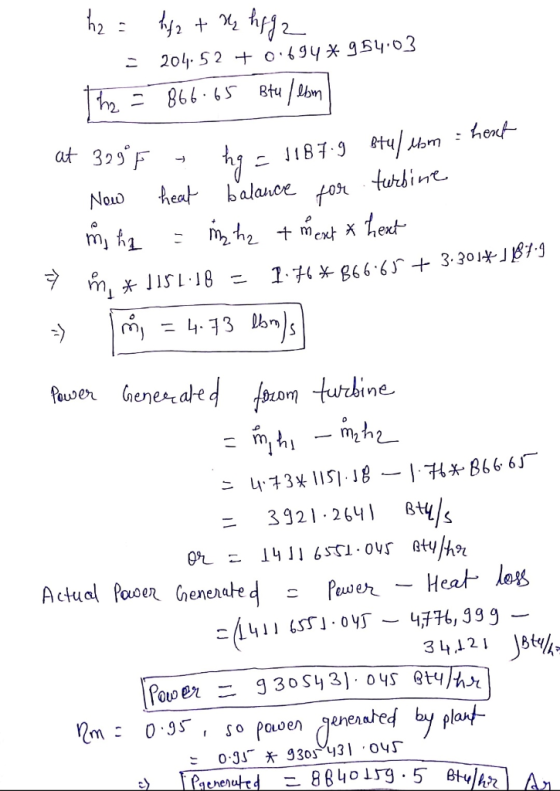

casing is 34,121.00 Btu/Hr, Calculate h
e power generated by the plant.
Homework Answers
