When you connect a standalone battery to a voltmeter the voltmeter reads 5 V. (a) Assuming...
-
When you connect a standalone battery to a voltmeter the voltmeter reads 5 V.
-
(a) Assuming the voltmeter has a very high resistance, what is the approximate elec- tromotive force in the battery?
-
(b) When you hook the same battery up to a circuit with a 15 Ohm resistor, you hook up the voltmeter to read the terminal voltage across the battery and it now reads 4.688 V instead of 5 V. What is the internal resistance of the battery?
-

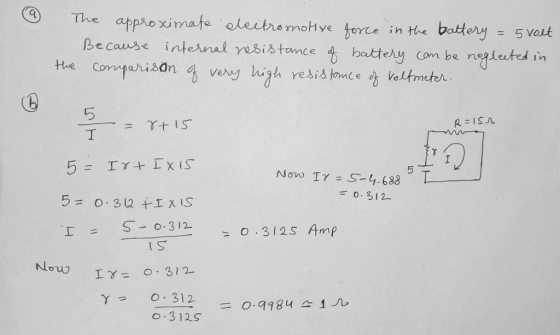

Homework Answers
Internal resistance of the
battery = 1 ohmAdd Answer to:
When you connect a standalone battery to a voltmeter the
voltmeter reads 5 V.
(a) Assuming...
When switch S in the figure is open, the voltmeter V of the battery reads 3.06...
When switch S in the figure is open, the voltmeter V of the battery reads 3.06 V. When the switch is closed, the voltmeter reading drops to 2.96 V, and the ammeter A reads 1.6 A. Find the internal resistance of the battery. Assume that the two meters are ideal, so they don't affect the circuit. (Give your answer in decimal with 3 digits after the decimal point using Ohm (Ω) as unit)
When a battery voltage is measured by placing a high-resistance voltmeter across the terminals of the...
When a battery voltage is measured by placing a high-resistance voltmeter across the terminals of the battery, the voltmeter reads 6.3V. With the voltmeter leads still attached, the battery terminals are then connected to a resistor in series with an ammeter. In this arrangement, the ammeter reads 150 mA, and the voltmeter reads 5.9V. What are the emf and the internal resistance of the battery?
When switch S in the figure is open, the voltmeter V of the battery reads 3.09 V...
When switch S in the figure is open, the voltmeter V of
the battery reads 3.09 V . When the switch is closed, the voltmeter reading drops
to 2.96 V , and the ammeter A reads 1.66 A . Assume that the two
meters are ideal, so they do not affect the circuit. (Figure 1) -
From that we find that emf E = 3.09 V.Find the internal resistance r of the battery.
*** Problem 3 When switch S in Figure 1 is open, the voltmeter V reads 3.08...
*** Problem 3 When switch S in Figure 1 is open, the voltmeter V reads 3.08 V. When the switch is closed, the voltmeter reading drops to 2.97 V, and the ammeter reads 1.65 A. (Note: r is internal resistance of the battery.) fr Figure 1: Assume that the two meters are ideal so they don't affect the current in the circuit. a What is the EMF, V, produced by the battery? b) What is the liternal cesistance, r, of...
9, A complete series circuit consists of a 12.0 V battery, a 4.70 Ω resistor, and...
9, A complete series circuit consists of a 12.0 V battery, a 4.70 Ω resistor, and a switch in the (1 point) closed position. The internal resistance of the battery is 0.30 2. What does an ideal voltmeter read when placed across the terminals of the battery? O12.0 V 024.0 V 02.40 V 11.3 10. A 1500 ΜΩ resistor is placed across the terminals of a battery, and a terminal voltage of 2.50 (1 point) V is measured, when this...
Imagine that you connect a 10 ohm resistor and a 1 megaohm resistor in series to...
Imagine that you connect a 10 ohm resistor and a 1 megaohm resistor in series to a battery. If you use a voltmeter that has a 1 megaohm internal resistance to measure the voltage across each resistor. Which measurement will affected most by the internal resistance of the ohm meter? the voltage across the 10 ohm resistor. the voltage across the 1 megaohm resistor. both measurement will be affected the same.
A voltmeter is connected across the terminals of a 15.0 V battery and a 75 ohm...
A voltmeter is connected across the terminals of a 15.0 V battery and a 75 ohm appliances connected across its terminals. If the voltmeter reads 11.3 V How much power is dissipated by the appliance? What is the internal resistance of the battery?
When switch S in the figure (Figure 1)is open, the voltmeter Vof the battery reads...
When switch S in the figure (Figure 1)is open, the voltmeter V
of the battery reads 3.13 V . When the switch is closed, the
voltmeter reading drops to 2.99 V , and the ammeter A reads 1.70 A
. Assume that the two meters are ideal, so they don't affect the
circuit.1) Find the emf.2) Find the internal resistance of the battery.3) Find the circuit resistance R.
A 6.0 V battery is connected to two 7.70 kilo-Ohm resistors in series. An ammeter of...
A 6.0 V battery is connected to two 7.70 kilo-Ohm resistors in series. An ammeter of internal resistance 0.570 Ohm measures the current and at the same time a voltmeter with internal resistance 15.2 kilo-Ohm measures the voltage across one of the 7.70 kilo-Ohm resistors in the circuit. What does the ammeter read? What does the voltmeter read?
An ideal voltmeter V is connected to a 2.0 O resistor and a battery with emf...
An ideal voltmeter V is connected to a 2.0 O resistor and a
battery with
emf 5.0 V and internal resistance 0.5 O as shown in the figure on
the
right. (a) What is the current in the 2.0 O resistor? (b) What is
the terminal
voltage of the battery? (c) What is the reading on the voltmeter?
Explain
your answers.
When a battery voltage is measured by placing a high-resistance voltmeter across the terminals of the battery, the voltmeter reads 6.3V. With the voltmeter leads still attached, the battery terminals are then connected to a resistor in series with an ammeter. In this arrangement, the ammeter reads 150 mA, and the voltmeter reads 5.9V. What are the emf and the internal resistance of the battery?
When switch S in the figure is open, the voltmeter V of
the battery reads 3.09 V . When the switch is closed, the voltmeter reading drops
to 2.96 V , and the ammeter A reads 1.66 A . Assume that the two
meters are ideal, so they do not affect the circuit. (Figure 1) -
From that we find that emf E = 3.09 V.Find the internal resistance r of the battery.
*** Problem 3 When switch S in Figure 1 is open, the voltmeter V reads 3.08 V. When the switch is closed, the voltmeter reading drops to 2.97 V, and the ammeter reads 1.65 A. (Note: r is internal resistance of the battery.) fr Figure 1: Assume that the two meters are ideal so they don't affect the current in the circuit. a What is the EMF, V, produced by the battery? b) What is the liternal cesistance, r, of...
9, A complete series circuit consists of a 12.0 V battery, a 4.70 Ω resistor, and a switch in the (1 point) closed position. The internal resistance of the battery is 0.30 2. What does an ideal voltmeter read when placed across the terminals of the battery? O12.0 V 024.0 V 02.40 V 11.3 10. A 1500 ΜΩ resistor is placed across the terminals of a battery, and a terminal voltage of 2.50 (1 point) V is measured, when this...
A voltmeter is connected across the terminals of a 15.0 V battery and a 75 ohm appliances connected across its terminals. If the voltmeter reads 11.3 V How much power is dissipated by the appliance? What is the internal resistance of the battery?
When switch S in the figure (Figure 1)is open, the voltmeter V
of the battery reads 3.13 V . When the switch is closed, the
voltmeter reading drops to 2.99 V , and the ammeter A reads 1.70 A
. Assume that the two meters are ideal, so they don't affect the
circuit.1) Find the emf.2) Find the internal resistance of the battery.3) Find the circuit resistance R.
An ideal voltmeter V is connected to a 2.0 O resistor and a
battery with
emf 5.0 V and internal resistance 0.5 O as shown in the figure on
the
right. (a) What is the current in the 2.0 O resistor? (b) What is
the terminal
voltage of the battery? (c) What is the reading on the voltmeter?
Explain
your answers.
