Imagine that you are compressing a piston full of steam (vapor), where the specific volume (v...

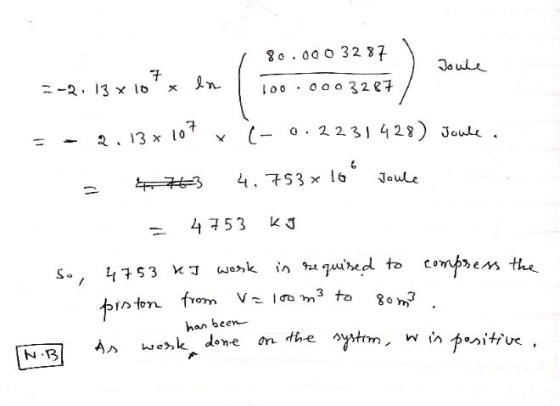

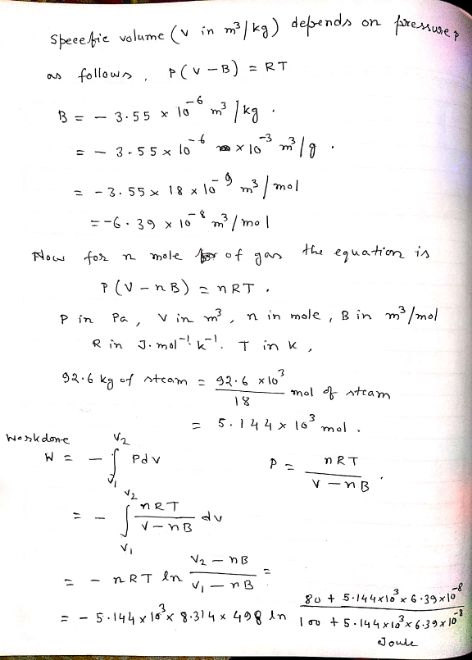

Imagine that you are compressing a piston full of steam (vapor), where the specific volume (v in m3/kg) depends on the pressure P as follows (at T= 498 K): P(v–B) =RT with B= ‐3.55 x 10-6m3/kg, where P has units of Pascal. How much work is required to compress the piston from V= 100 m3 to V= 80 m3 if you have 92.6 kg of steam in the piston? Assume the temperature stays constant at T = 498 K.
Homework Answers
Add Answer to:
Imagine that you are compressing a piston full of steam (vapor),
