Question

What are the advantages and what are the challenges would you expect to encounter in the application of multiphase circuits and machines?

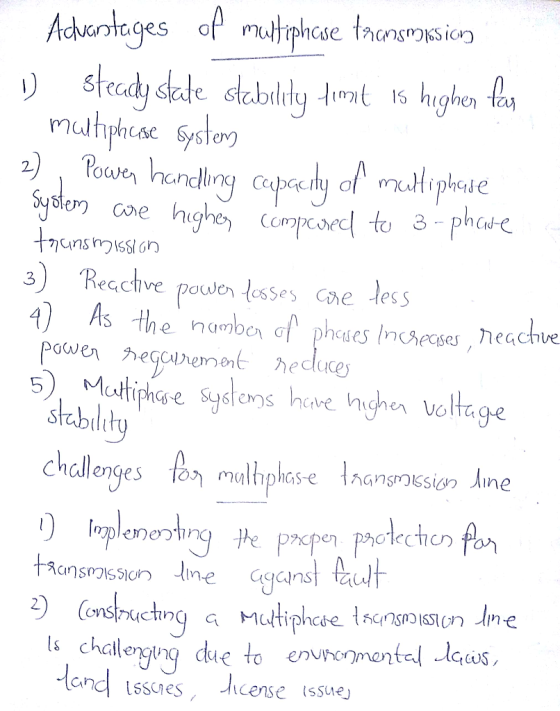

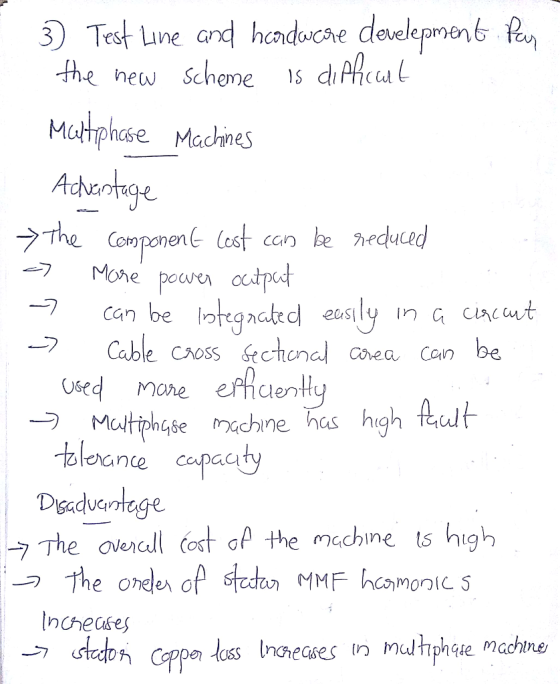

Answer 1

Answer 2

In the application of polyphase circuits and machines, there are several advantages and challenges, which are detailed as follows:

Advantages

• Higher Power Transmission Efficiency: Polyphase systems, such as three - phase systems, can transmit more power with lower losses compared to single - phase systems. This is because the power in a polyphase system is more evenly distributed among the phases, resulting in a more efficient use of the conductors and reducing the amount of heat generated due to resistive losses.

• Smooth Torque Generation: In polyphase machines, like three - phase induction motors, the interaction of the magnetic fields from different phases produces a smooth and continuous torque. This is beneficial for applications that require a consistent and reliable mechanical output, enabling the motors to start and run more smoothly with less vibration and noise.

• Compact Design: Polyphase machines can be designed to be more compact for a given power rating. The arrangement of multiple phases allows for a more efficient use of the magnetic and electrical space within the machine, resulting in a smaller size and weight compared to single - phase machines of the same power capacity. This is advantageous in applications where space and weight are critical factors, such as in industrial equipment and transportation.

Challenges

• Complex Circuit Configuration: Polyphase circuits are more complex than single - phase circuits. They require a more elaborate wiring system and control mechanisms to ensure the proper operation of each phase. The complexity increases the difficulty of installation, maintenance, and troubleshooting, requiring trained technicians with a good understanding of polyphase systems.

• Balancing Issues: Maintaining a balanced load across all phases is crucial in polyphase systems. An unbalanced load can lead to uneven distribution of current and voltage, resulting in increased losses, reduced efficiency, and potential damage to the equipment. Achieving and maintaining balance requires careful design and monitoring of the system, especially in applications where the load can vary dynamically.

• Harmonic Distortion: Polyphase systems can be susceptible to harmonic distortion, which is caused by non - linear loads such as power electronics devices. Harmonics can distort the voltage and current waveforms, leading to additional losses, overheating of components, and interference with other electrical equipment. Mitigating harmonic distortion requires the use of filters and proper design of the power system to minimize the impact of non - linear loads.
