A yo-yo Due in 6 hours, 20 minutes A 0.320-kg yo-yo consists of two solid disks...

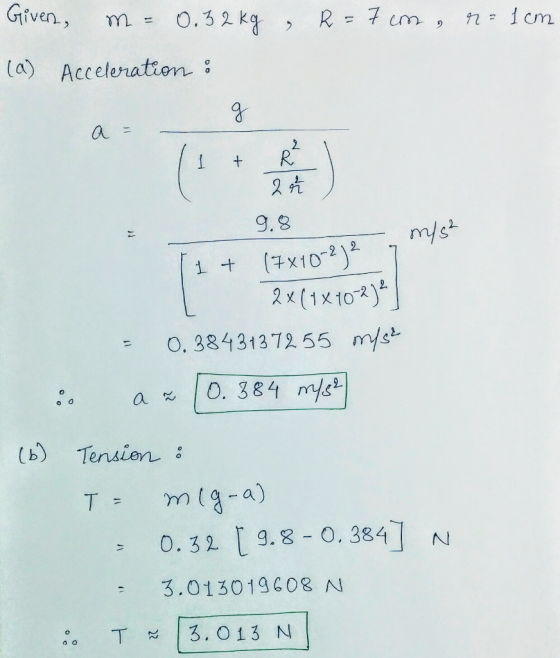

A yo-yo Due in 6 hours, 20 minutes A 0.320-kg yo-yo consists of two solid disks of radius 7.00cm joined together by a massless rod of radius 1.00 cm and a string wrapped around the rod. One end of the string is held fixed and is under constant tension T as the yo-yo is released. Find the acceleration of the yo-yo Tries 0/10 Find the tension T. Tries 0/10
Homework Answers
Add Answer to:
A yo-yo Due in 6 hours, 20 minutes A 0.320-kg yo-yo consists of
two solid disks...
A 0.2 kg yo-yo consists of two solid disks of radius 5.6 cm joined together by...
A 0.2 kg yo-yo consists of two solid disks of radius 5.6 cm joined together by a massless rod of radius 1 cm and a string wrapped around the rod. One end of the string is held fixed and is under constant tension T as the yo-yo is released. (a) Find the acceleration of the yo-yo (b) Find the tension T
front view side view FT 1 R Ms Pulling the yo-yo [9pt] A non-intuitive motion that...
front view side view FT 1 R Ms Pulling the yo-yo [9pt] A non-intuitive motion that combines translation and rotation is pulling a wheel with a string wrapped around it, as shown in the figure above. Depending on what angle the string is pulled, you can obtain three kinds of motion: the yo-yo accelerating in the direction of the applied tension force and winding up, the yo-yo accelerating in the opposite direction of tension and unwinding, and the yo-yo sliding...
front view side view FT R. ول Pulling the yo-yo [9pt] A non-intuitive motion that combines...
front view side view FT R. ول Pulling the yo-yo [9pt] A non-intuitive motion that combines translation and rotation is pulling a wheel with a string wrapped around it, as shown in the figure above. Depending on what angle the string is pulled, you can obtain three kinds of motion: the yo-yo accelerating in the direction of the applied tension force and winding up, the yo-yo accelerating in the opposite direction of tension and unwinding, and the yo-yo sliding at...
How to do problem number 34 from chapter 8? This problem is from College Physics 9th...
How to do problem number 34
from chapter 8? This problem is from College Physics 9th edition
textbook.
34. GP An oversized yo-yo is made from two identical solid disks each of mass M 2.00 kg and radius R - 10.0 cm. The two disks are joined by a solid cylinder 01 radius γ 4.00 cm and mass m 1.00 kg as in Fig ure P8.34. Take the center of the cylinder as the axis of the system, with positive...
torque on a cylinder Cylinder drop (2) A uniform cylinder of mass m - 2 kg....
torque on a cylinder
Cylinder drop (2) A uniform cylinder of mass m - 2 kg. radius r = 0. 1 m (and I = 1/2mr^2) has a massless, frictionless string wrapped around the outside, and is subsequently dropped from rest. The cylinder will fall and the string will unwind like a yo-yo. The string will haw some tension T during this process. Find the net force acting on the cylinder (in terms of T if necessary). Find the net...
Two metal disks, one with radius R1 = 2.54 cm and mass M1 = 0.850 kg...
Two metal disks, one with radius R1 = 2.54 cm and mass M1 = 0.850 kg and the other with radius R2 = 5.04 cm and mass M2 = 1.58 kg , are welded together and mounted on a frictionless axis through their common center. (Figure 1). Part A Part complete A light string is wrapped around the edge of the smaller disk, and a 1.50 kg block, suspended from the free end of the string. If the block is...
Two metal disks, one with radius R1 = 2.54 cm and mass M1 = 0.850 kg...
Two metal disks, one with radius R1 = 2.54 cm and mass M1 = 0.850 kg and the other with radius R2 = 5.04 cm and mass M2 = 1.58 kg , are welded together and mounted on a frictionless axis through their common center. (Figure 1). Part A Part complete A light string is wrapped around the edge of the smaller disk, and a 1.50 kg block, suspended from the free end of the string. If the block is...
Two metal disks, one with radius R1 = 2.50 cm and mass M1 = 0.800 kg and the other with radius R2 = 5.10 cm and mass M2 = 1.70 kg
Two metal disks, one with radius R1 = 2.50 cm and mass M1 = 0.800 kg and the other with radius R2 = 5.10 cm and mass M2 = 1.70 kg, are welded together and mounted on a frictionless axis through their common center (Figure 1). Part A What is the total moment of inertia of the two disks? Part B A light string is wrapped around the edge of the smaller disk, and a 1.50 kg block is suspended from the free end...
Constants Two metal disks, one with radius Ri = 2.44 cm and mass M = 0.820...
Constants Two metal disks, one with radius Ri = 2.44 cm and mass M = 0.820 kg and the other with radius R2 = 5.07 cm and mass M2 = 1.66 kg, are welded together and mounted on a frictionless axis through their common center. (Figure 1). Part A What is the total moment of inertia of the two disks? I = 2.38 10-3 kg. m² Submit Previous Answers Correct Part B A light string is wrapped around the edge...
A solid, frictionless cylinder reel of mass M= 2.95 kg and radius R = 0.392 m is...
A solid, frictionless cylinder reel of mass M= 2.95 kg and radius R = 0.392 m is used to draw water from a well (see Figure (a)). A bucket of mass m= 1.82 kg is attached to a cord that is wrapped around the cylinder. (Indicate the direction with the sign of your answer.)(a) Find the tension T in the cord and acceleration a of the bucket. T = ??? N a = ?? m/s2 (b) If the bucket starts from...
front view side view FT 1 R Ms Pulling the yo-yo [9pt] A non-intuitive motion that combines translation and rotation is pulling a wheel with a string wrapped around it, as shown in the figure above. Depending on what angle the string is pulled, you can obtain three kinds of motion: the yo-yo accelerating in the direction of the applied tension force and winding up, the yo-yo accelerating in the opposite direction of tension and unwinding, and the yo-yo sliding...
front view side view FT R. ول Pulling the yo-yo [9pt] A non-intuitive motion that combines translation and rotation is pulling a wheel with a string wrapped around it, as shown in the figure above. Depending on what angle the string is pulled, you can obtain three kinds of motion: the yo-yo accelerating in the direction of the applied tension force and winding up, the yo-yo accelerating in the opposite direction of tension and unwinding, and the yo-yo sliding at...
How to do problem number 34
from chapter 8? This problem is from College Physics 9th edition
textbook.
34. GP An oversized yo-yo is made from two identical solid disks each of mass M 2.00 kg and radius R - 10.0 cm. The two disks are joined by a solid cylinder 01 radius γ 4.00 cm and mass m 1.00 kg as in Fig ure P8.34. Take the center of the cylinder as the axis of the system, with positive...
torque on a cylinder
Cylinder drop (2) A uniform cylinder of mass m - 2 kg. radius r = 0. 1 m (and I = 1/2mr^2) has a massless, frictionless string wrapped around the outside, and is subsequently dropped from rest. The cylinder will fall and the string will unwind like a yo-yo. The string will haw some tension T during this process. Find the net force acting on the cylinder (in terms of T if necessary). Find the net...
Constants Two metal disks, one with radius Ri = 2.44 cm and mass M = 0.820 kg and the other with radius R2 = 5.07 cm and mass M2 = 1.66 kg, are welded together and mounted on a frictionless axis through their common center. (Figure 1). Part A What is the total moment of inertia of the two disks? I = 2.38 10-3 kg. m² Submit Previous Answers Correct Part B A light string is wrapped around the edge...
