14) The real electron experiment was preformed by A Tonomura in 1989. The electrons were accelerated...

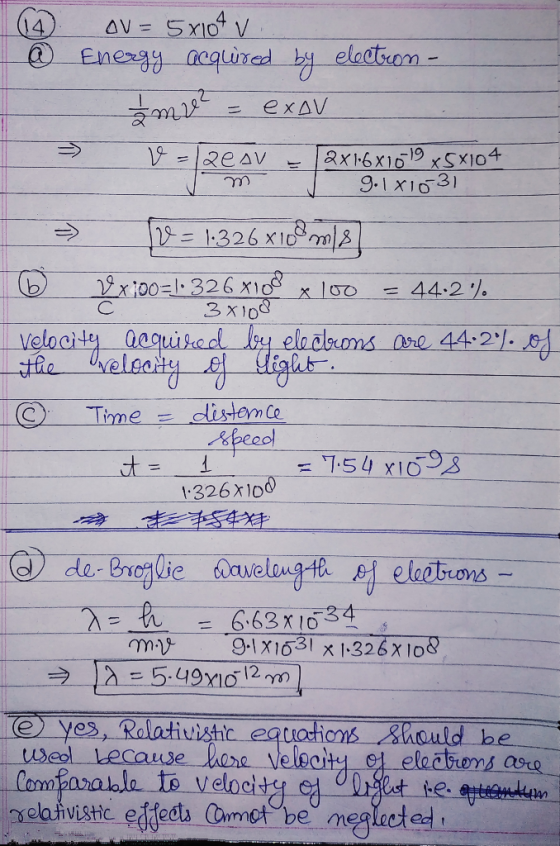

14) The real electron experiment was preformed by A Tonomura in 1989. The electrons were accelerated by a potential difference of 5 x 104 m/s V. Do the following calculations non-relativistically.
- How fast were these electrons moving?
- How fast is that compared to the speed of light?
- How long would they take to cross the 1 m apparatus?
- What was the wavelength of these electrons?
- Should relativistic equations be used?
Homework Answers
