a. A Capacitor- 1 micro Farad is connected in series with a 2 Kohm resistor and...

a. A Capacitor- 1 micro Farad is connected in series with a 2 Kohm resistor and a 6 V DC source. Approximately, how long will it take for the capacitor to charge fully?

b. If the 6 V DC source is disconnected from the circuit (above), how long will it take for the capacitor to discharge to 0 V?

engineering   Electrical-Engineering
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

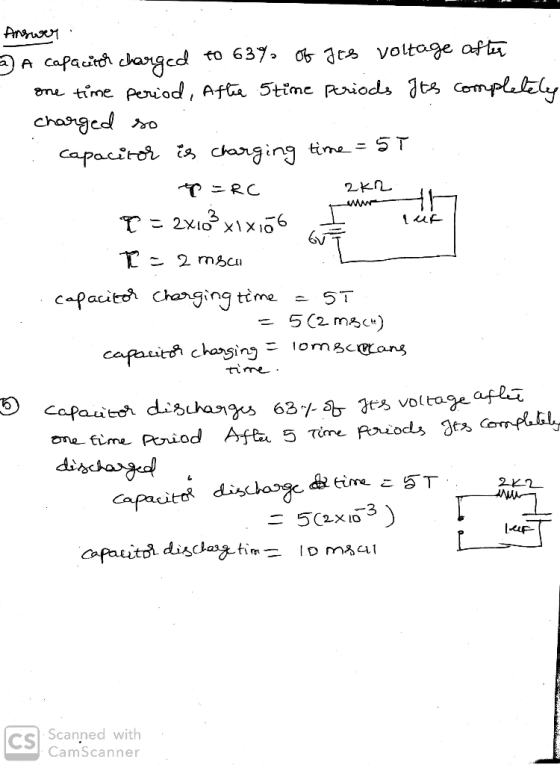

Answer #1

0 0
Add a comment
