A certain LR circuit with a battery has an inductor with L = 65 mH &...

A certain LR circuit with a battery has an inductor with L = 65 mH & τ = 6 ms. It is known that when t = 4.5 ms, I = 0.09 A. Determine the resistance of the resistor and the voltage of the battery.
R = Ω
Vo =

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

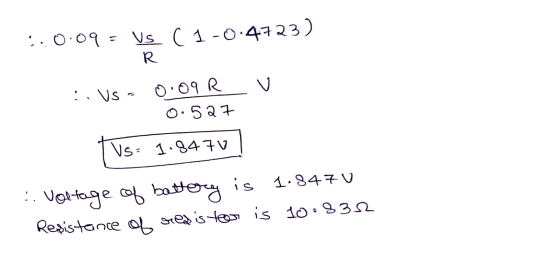

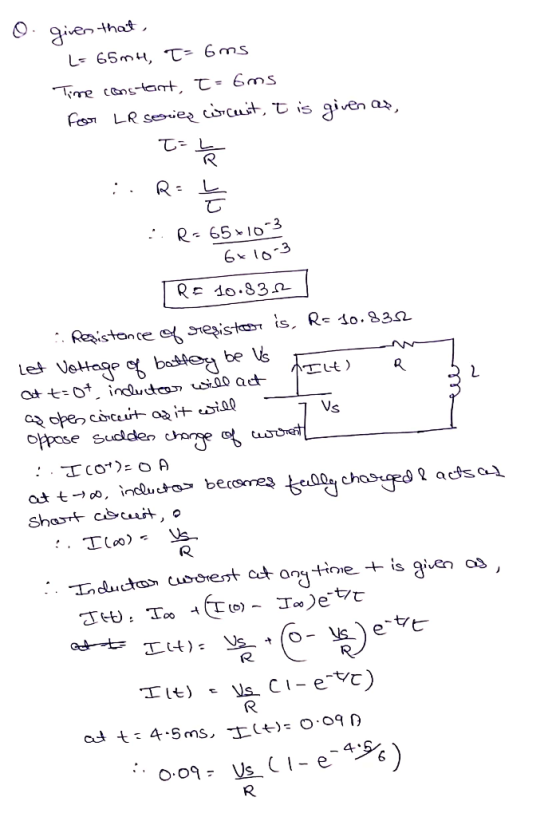

Answer #1


0 0
Add a comment
Know the answer?
Add Answer to:
A certain LR circuit with a battery has an inductor with L = 65 mH &...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • A certain LR circuit with a battery has an inductor with L = 37 mH &...

    A certain LR circuit with a battery has an inductor with L = 37 mH & τ = 6 ms. It is known that when t = 12 ms, I = 0.11 A. Determine the resistance of the resistor and the voltage of the battery. The armature of a 60 Hz ac generator rotates in a 0.19 T B-field. If the area of the coils is 0.03 m2, how many loops must the coil contain if the peak output is...

  • An LR circuit includes a resistor of resistance R, an inductor of inductance L and a...

    An LR circuit includes a resistor of resistance R, an inductor of inductance L and a battery of emf E = 10 V. At time t = 0 the current in the circuit is I = 0. At time t = 6.1 ms the current is I = 0.66 A. What are the values of L and R?

  • An LR circuit includes a resistor of resistance R, an inductor of inductance L and a...

    An LR circuit includes a resistor of resistance R, an inductor of inductance L and a battery of emf E = 10 V. At time t = 0 the current in the circuit is I = 0. At time t = 6.1 ms the current is I = 0.66 A. Assume R = 100ohms, find L.

  • In the given circuit an inductor of L = 8.45-mH and a resistor of R =...

    In the given circuit an inductor of L = 8.45-mH and a resistor of R = 16.9-Ω resistor are connected in series with a dc battery of E = 5.10-V. What is the current in the inductor after the switch has been closed for a long time?

  • In a decaying LR series circuit we have: R = 9 Ohm, L = 3 mH,...

    In a decaying LR series circuit we have: R = 9 Ohm, L = 3 mH, epsilon = 36 v. The switch disconnecting the power supply is closed at t draining the current I(t). Find; a. The time constant tau b. The initial current I_f (at t rightarrow infinity) c. The initial energy stored in the inductor. d. The voltage across the inductor at t = 1.5 tau e. The power dissipated by the resistor at t = 1.5 tau

  • A 4.5 mH inductor is initially connected to a 5.9 V battery at t = 0...

    A 4.5 mH inductor is initially connected to a 5.9 V battery at t = 0 through a 4.5 Ω resistor. Once the inductor is fully energized, the battery is removed and the 4.5 Ω resistor is connected between the two terminals of the inductor. Find the current flowing through the resistor 17.0 µsec after the inductor begins to be de-energized.

  • An ideal inductor of inductance 7.7 mH is connected in parallel with a resistor of resistance...

    An ideal inductor of inductance 7.7 mH is connected in parallel with a resistor of resistance 141 Ω. This parallel combination is then connected in series with a second ideal inductor of inductance 4.5 mH. The sinusoidal voltage source for the circuit is 102 V, 71.6 Hz. Sketch the circuit and find the magnitude of the current, I, flowing through the resistor.

  • A 8.2-V battery is connected in series with a 38-mH inductor, a 150-Ω resistor, and an...

    A 8.2-V battery is connected in series with a 38-mH inductor, a 150-Ω resistor, and an open switch.A 8.2-V battery is connected in series with a 38-mH inductor, a 150-Ω resistor, and an open switch. Part A What is the current in the circuit 0.110 ms after the switch is closed? unit (mA) Part B How much energy is stored in the inductor at this time? unit(micro J)

  • Exercise 1: (8 pts) Current begins to build up in a series circuit consisting of a...

    Exercise 1: (8 pts) Current begins to build up in a series circuit consisting of a 10 V battery, a coil of 15 mH and a resistance of 10 Ω. (a) What is the time constant τ of the circuit? (b) What is the current in the coil after a time of 4.5 ms? (c) What is the voltage across the resistor after 4.5 ms? (d) What is the voltage across the coil after 4.5 ms?

  • In the circuit shown below, the emf of the battery is 19.0V, L = 1.20 H,...

    In the circuit shown below, the emf of the battery is 19.0V, L = 1.20 H, R1 = R2 = R, and R3 = 2R, where R = 8.00 Ω. Initially, the switch is open. At t is closed 0, the switch Ri (a) What is the time constant of this circuit? 0.09 (b) Determine the current flowing through the inductor at t 3.25 ms. mA (c) How much current flows out of the battery at t 3.25 ms?
