Two 25.0 −cm -focal-length converging lenses are placed 16.0 cm apart. An object is placed 30.0...
Two 25.0 −cm -focal-length converging lenses are placed 16.0 cm apart. An object is placed 30.0 cm in front of one lens.
Part A. Where will the final image formed by the second lens be located?
Part B. What is the total magnification?

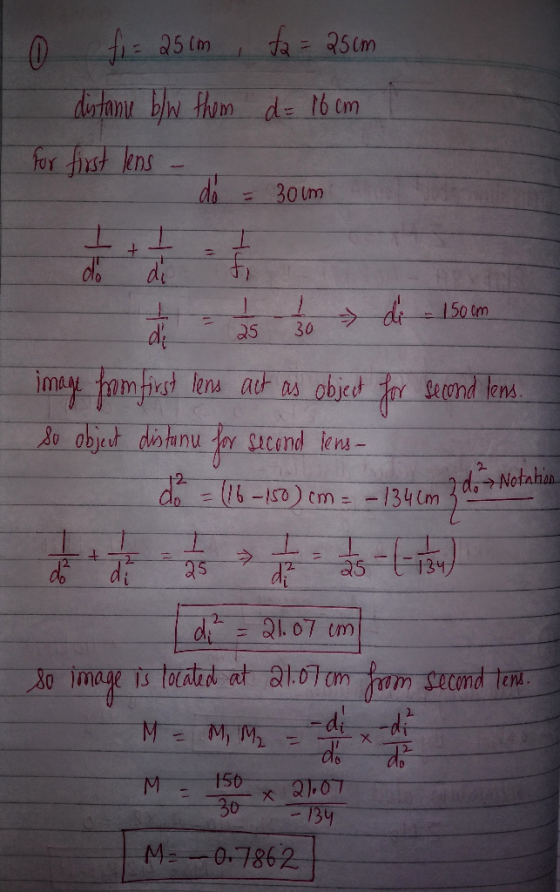

Homework Answers
Add Answer to:
Two 25.0 −cm -focal-length converging lenses are placed 16.0 cm
apart. An object is placed 30.0...
wo converging lenses, each of focal length 14.8 cm, are placed 39.6 cm apart, and an...
wo converging lenses, each of focal length 14.8 cm, are placed 39.6 cm apart, and an object is placed 30.0 cm in front of the first lens. Where is the final image formed? The image is located cm ---Location---behind the second lens.in front of the first lens.in front of the second lens. What is the magnification of the system? M = ✕
Two converging lenses, each of focal length 15.0 cm, are placed 40.0 cm apart, and an...
Two converging lenses, each of focal length 15.0 cm, are placed 40.0 cm apart, and an object is placed 30.0 cm in front of the first lens. Where is the final image formed, and what is the magnification of the system?
Two converging lenses are placed 20 cm apart. An object is placed on the left of...
Two converging lenses are placed 20 cm apart. An object is placed on the left of the first lens, at a distance of 30 cm. The first lens has a focal point of 10 cm and the second lens has a focal length of 20 cm. a) Using a ray diagram determine the type of image formed by the first lens. b) Calculate the position of the image formed by the first lens. c) Find the magnification of the image...
Two lenses, one converging with focal length 20.0 cm and one diverging with focal length -10.0...
Two lenses, one converging with focal length 20.0 cm and one diverging with focal length -10.0 cm are placed 20 cm apart. An object is placed 60 cm in front of converging lens. Determine (a) the position and (b) the magnification of the final image formed (c) sketch a ray diagram for this system.
Two lenses, one converging with focal length 20.0 cm and one diverging with focal length 10.0...
Two lenses, one converging with focal length 20.0 cm and one diverging with focal length 10.0 cm , are placed 25.0 cm apart. An object is placed 60.0 cm in front of the converging lens. Part A Find the final image distance from second lens. Follow the sign conventions. Express your answer to two significant figures and include the appropriate units. OD Å ? di2 = 1 cm Submit Previous Answers Request Answer X Incorrect; Try Again; 5 attempts remaining...
Problem 23.59 12 of 15 Part A Constants Two 21.7-cm-focal-length converging lenses ar placed 16.5 cm...
Problem 23.59 12 of 15 Part A Constants Two 21.7-cm-focal-length converging lenses ar placed 16.5 cm apart. An object is placed 35.0 cm in front of one lens. Where will the final image formed by the second lens be located? Determine the image distance from the second lens. Follow the sign conventions. Express your answer to three significant figures and include the appropriate units dp-Value Units Submit Request Answer Part B What is the total magnification? Follow the sign conv...
Two converging lenses are placed 81.5 cm apart. An object is placed 1.18 m to the...
Two converging lenses are placed 81.5 cm apart. An object is placed 1.18 m to the left of the first lens, which has a focal length of 23.6 cm. The final image is located 13.2 cm to the right of the second lens. What is the focal length of the second lens? Submit Answer Tries o/99 What is the total magnification? Suomit Answer Tries 0/99
Problem 23.61 Two lenses, one converging with focal length 20.5 cm and one diverging with focal...
Problem 23.61 Two lenses, one converging with focal length 20.5 cm and one diverging with focal length 11.5 cm , are placed 25.0 cm apart An object is placed 60.0 cm in front of the converging lens. Part A Find the final image distance from second lens. Follow the sign conventions. Express your answer to two significant figures and include the appropriate units. d2 13 cm ubmit Previous Answers Correct Part B Determine the magnification of the final image formed....
Part A Two converging lenses are placed 35.5 cm apart. The focal length of the lens...
Part A Two converging lenses are placed 35.5 cm apart. The focal length of the lens on the right is 19.5 cm and the focal length of the lens on the left is 13.0 cm. An object is placed to the left of the 13.0 cm focal-length lens. A final image from both lenses is inverted and located halfway between the two lenses. How far to the left of the 13.0 cm focal-length lens is the original object? A2 -...
A converging lens is placed 32.0 cm to the right of a diverging lens of focal...
A converging lens is placed 32.0 cm to the right of a diverging lens of focal length 13.0 cm. A beam of paralel light enters the diverging lens from the left, and the beam is agai parallel when it emerges from the converging lens. Calculate the focal length of the converging lens. Need Help? 24 -3 points SerCP10 23 P041.Wi My Notes Ask Your Two converging lenses, each of focal length 15.2 cm, are placed 40.9 cm apart, and an...
Two lenses, one converging with focal length 20.0 cm and one diverging with focal length 10.0 cm , are placed 25.0 cm apart. An object is placed 60.0 cm in front of the converging lens. Part A Find the final image distance from second lens. Follow the sign conventions. Express your answer to two significant figures and include the appropriate units. OD Å ? di2 = 1 cm Submit Previous Answers Request Answer X Incorrect; Try Again; 5 attempts remaining...
Problem 23.59 12 of 15 Part A Constants Two 21.7-cm-focal-length converging lenses ar placed 16.5 cm apart. An object is placed 35.0 cm in front of one lens. Where will the final image formed by the second lens be located? Determine the image distance from the second lens. Follow the sign conventions. Express your answer to three significant figures and include the appropriate units dp-Value Units Submit Request Answer Part B What is the total magnification? Follow the sign conv...
Two converging lenses are placed 81.5 cm apart. An object is placed 1.18 m to the left of the first lens, which has a focal length of 23.6 cm. The final image is located 13.2 cm to the right of the second lens. What is the focal length of the second lens? Submit Answer Tries o/99 What is the total magnification? Suomit Answer Tries 0/99
Problem 23.61 Two lenses, one converging with focal length 20.5 cm and one diverging with focal length 11.5 cm , are placed 25.0 cm apart An object is placed 60.0 cm in front of the converging lens. Part A Find the final image distance from second lens. Follow the sign conventions. Express your answer to two significant figures and include the appropriate units. d2 13 cm ubmit Previous Answers Correct Part B Determine the magnification of the final image formed....
Part A Two converging lenses are placed 35.5 cm apart. The focal length of the lens on the right is 19.5 cm and the focal length of the lens on the left is 13.0 cm. An object is placed to the left of the 13.0 cm focal-length lens. A final image from both lenses is inverted and located halfway between the two lenses. How far to the left of the 13.0 cm focal-length lens is the original object? A2 -...
A converging lens is placed 32.0 cm to the right of a diverging lens of focal length 13.0 cm. A beam of paralel light enters the diverging lens from the left, and the beam is agai parallel when it emerges from the converging lens. Calculate the focal length of the converging lens. Need Help? 24 -3 points SerCP10 23 P041.Wi My Notes Ask Your Two converging lenses, each of focal length 15.2 cm, are placed 40.9 cm apart, and an...
