A 8 kg block sits on a ramp inclined at 12 degrees that has a coefficient...

A 8 kg block sits on a ramp inclined at 12 degrees that has a coefficient of friction of 0.5. A string runs from the block over a pulley at the top of the ramp and then hangs straight down to a suspended weight. If the block slides up the ramp at constant velocity, find the mass of the suspended weight.

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

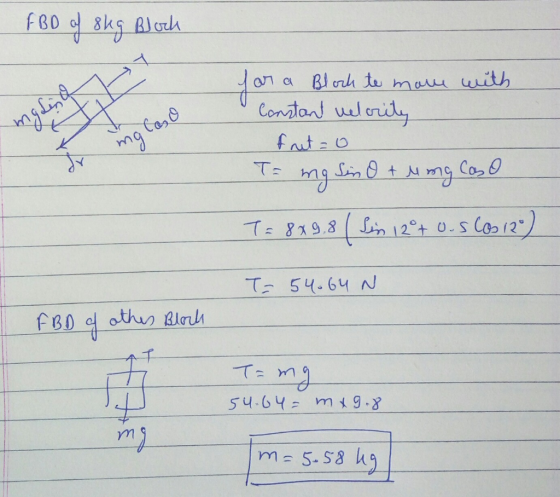

Answer #1

0 0
Add a comment
