A ray of light is pointed at the surface of a block of fluorite at an...

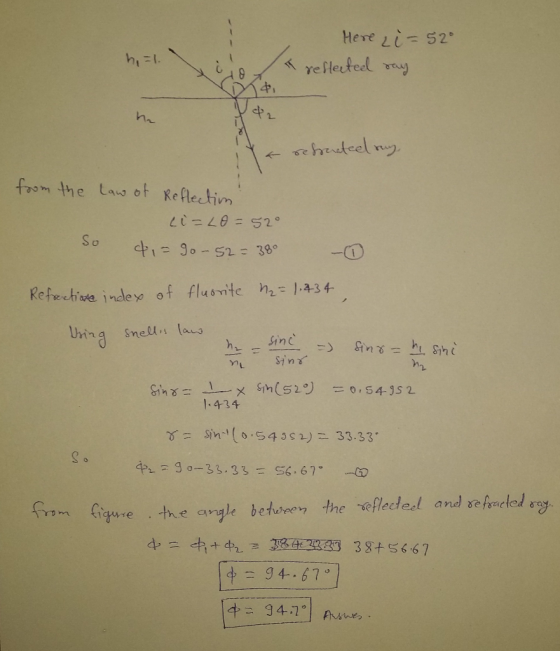

A ray of light is pointed at the surface of a block of fluorite at an angle of 52.0° with respect to the normal (a line perpendicular to the surface at the spot where the ray hits the block).
Part of the light is reflected and the rest refracted. What is the angle (in degrees) between the reflected and refracted rays?
?
Homework Answers
Add Answer to:
A ray of light is pointed at the surface of a block of fluorite
at an...
A ray of light is incident on the surface of a block of clear ice at...
A ray of light is incident on the surface of a block of clear ice at an angle of 44.0° with the normal. Part of the light is reflected and part is refracted. Find the angle between the reflected and refracted light. °
A ray of light is incident on the surface of a block of clear ice (n...
A ray of light is incident on the surface of a block of clear ice (n = 1.33) at an angle of 11.1" with the surface. Part of the light is reflected, and part is refracted. Find the angle between the reflected and refracted light. Answer: ODegrees
Question 2 20 points A ray of light from air is incident on the surface of...
Question 2 20 points A ray of light from air is incident on the surface of the water and is reflected and refracted. If the angle of refraction is 30° and the index of refraction for water is 1.33 what is the angle in degrees between the reflected and refractad rays?
3a. Light traveling in air encounters a flat side of a solid block of a transparent...
3a. Light traveling in air encounters a flat side of a solid block of a transparent material that is completely immersed in air, i.e., it is completely surrounded by the air. Some of the incident light is reflected back into the air and some enters the material. If the angle of incidence that the light makes at the flat side is 16.8 degrees, what is the angle that the light is reflected back into the air relative to a perpendicular...
1. A ray of light (ray a) in air strikes a flat piece of glass at...
1. A ray of light (ray a) in air strikes a flat piece of glass at an angle of po =60.94° with respect to the normal, as shown in the figure. The index of refraction of the glass is 1.498. What is the angle 0 between the reflected ray (ray b) and refracted ray (ray c) rays? a air glass
Here is a figure that shows a light ray that is H=23cm parallel to and above...
Here is a figure that shows a light ray that is H=23cm parallel
to and above the ground.
The light ray goes through a medium with an index of refraction
of n1=1.2, and some of it reflects and some of it
refracts.
The refracting part goes into a medium with an index of
refraction of n2=1.5.
If the angle ? = 30 degrees:
What is the distance between point A and point B (in
cm)?
What is the angle between...
A ray of light is incident on a flat surface of a block of ice that...
A ray of light is incident on a flat surface of a block of ice that is surrounded by water. The angle of refraction is 22.0°. Find the angle of reflection. Need Help? Talk to a Tutor Submit Answer Save ProgressPractice Another Version +-15 points SerPSE7 35.P.014 My Notes Ask Your Teacher A laser beam with vacuum wavelength 627 nm is incident from air onto a block of Lucite as shown in the figure below. The line of sight of...
This is due at 1:10pm 1) A light ray coming with 20 degrees with the normal...
This is due at 1:10pm
1) A light ray coming with 20 degrees with the normal from glass hits a diamond surface. Find the angle of the refracted and reflected beam. Trace the ray diagram. Index of refraction of glass is 1.5 and for diamond it is 2.4
Imagine a light ray traveling from a vacuum (medium 1) into another medium containing an unknown...
Imagine a light ray traveling from a vacuum (medium 1) into another medium containing an unknown substance (medium 2). When the light hits the interface between the two media, the initial angle of incidence is 40 degrees (measured from a line perpendicular to the boundary surface), and it is then refracted by an angle of 29 degrees (again, measured relative to a line perpendicular to the boundary surface). What is the speed of light (in units of meters per second)...
A ray of light traveling in air is incident on the flat surface of a piece...
A ray of light traveling in air is incident on the flat surface of a piece of glass at an angle of 64.0° with respect to the normal to the surface of the glass. If the ray refracted into the glass makes an angle of 34.3° with respect to the normal, what is the refractive index of the glass?
A ray of light is incident on the surface of a block of clear ice (n = 1.33) at an angle of 11.1" with the surface. Part of the light is reflected, and part is refracted. Find the angle between the reflected and refracted light. Answer: ODegrees
Question 2 20 points A ray of light from air is incident on the surface of the water and is reflected and refracted. If the angle of refraction is 30° and the index of refraction for water is 1.33 what is the angle in degrees between the reflected and refractad rays?
3a. Light traveling in air encounters a flat side of a solid block of a transparent material that is completely immersed in air, i.e., it is completely surrounded by the air. Some of the incident light is reflected back into the air and some enters the material. If the angle of incidence that the light makes at the flat side is 16.8 degrees, what is the angle that the light is reflected back into the air relative to a perpendicular...
1. A ray of light (ray a) in air strikes a flat piece of glass at an angle of po =60.94° with respect to the normal, as shown in the figure. The index of refraction of the glass is 1.498. What is the angle 0 between the reflected ray (ray b) and refracted ray (ray c) rays? a air glass
Here is a figure that shows a light ray that is H=23cm parallel
to and above the ground.
The light ray goes through a medium with an index of refraction
of n1=1.2, and some of it reflects and some of it
refracts.
The refracting part goes into a medium with an index of
refraction of n2=1.5.
If the angle ? = 30 degrees:
What is the distance between point A and point B (in
cm)?
What is the angle between...
A ray of light is incident on a flat surface of a block of ice that is surrounded by water. The angle of refraction is 22.0°. Find the angle of reflection. Need Help? Talk to a Tutor Submit Answer Save ProgressPractice Another Version +-15 points SerPSE7 35.P.014 My Notes Ask Your Teacher A laser beam with vacuum wavelength 627 nm is incident from air onto a block of Lucite as shown in the figure below. The line of sight of...
This is due at 1:10pm
1) A light ray coming with 20 degrees with the normal from glass hits a diamond surface. Find the angle of the refracted and reflected beam. Trace the ray diagram. Index of refraction of glass is 1.5 and for diamond it is 2.4
