Question No. 1-A simply supported rectangular beam 400 mm wide having an effective depth of 700...

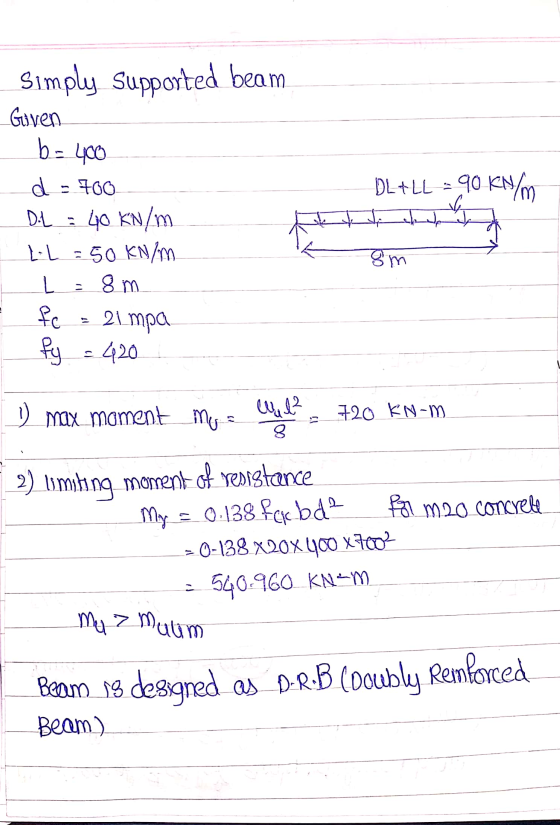

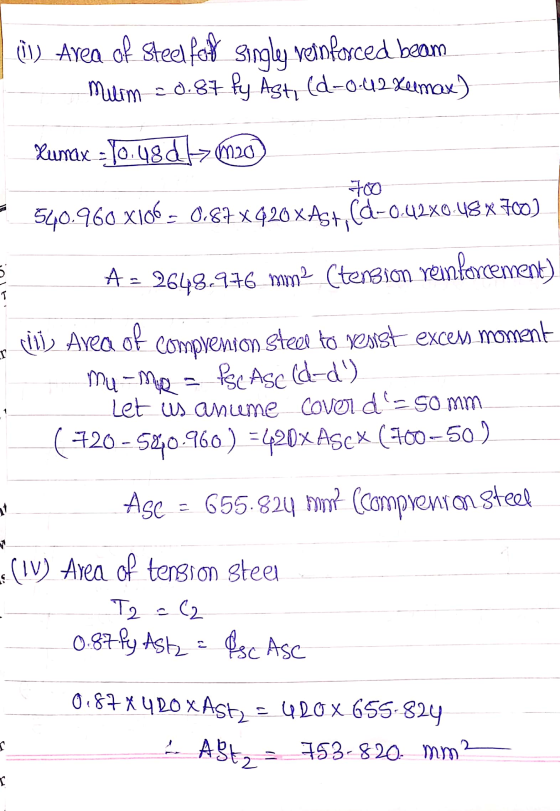

Question No. 1-A simply supported rectangular beam 400 mm wide having an effective depth of 700 mm carries a superimposed dead load of 40 KN/m and a service live load of 50 KN/m over a 8 m clear span. Using fc’ = 21 MPa and fy = 420 MPa, Design the web reinforcement.
Homework Answers

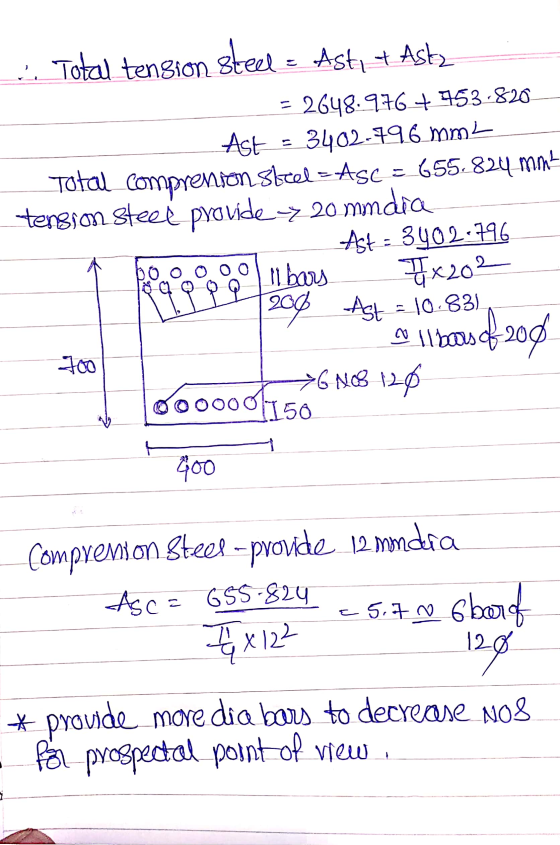

diameter
of bars is not fixed based on the availability we can change the
diameter of bars so kindly change the diagram of your requirement
as it is not mentioned in question
Add Answer to:
Question No. 1-A simply supported rectangular beam 400 mm wide
having an effective depth of 700...
