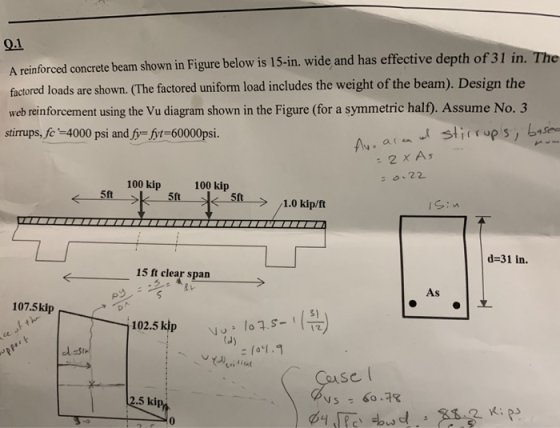

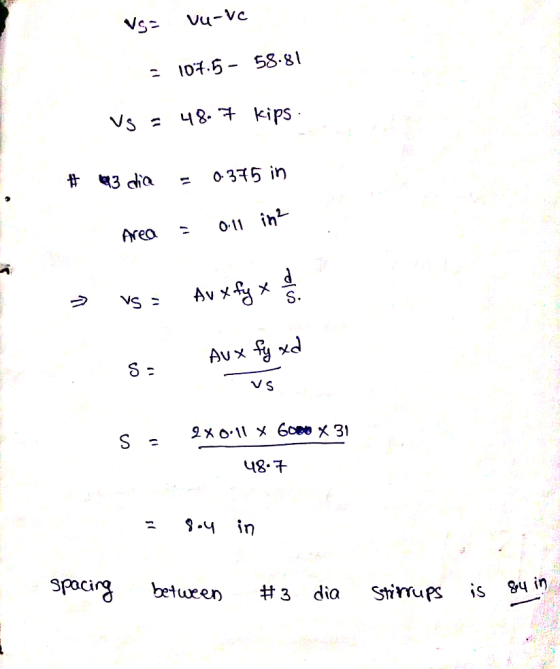

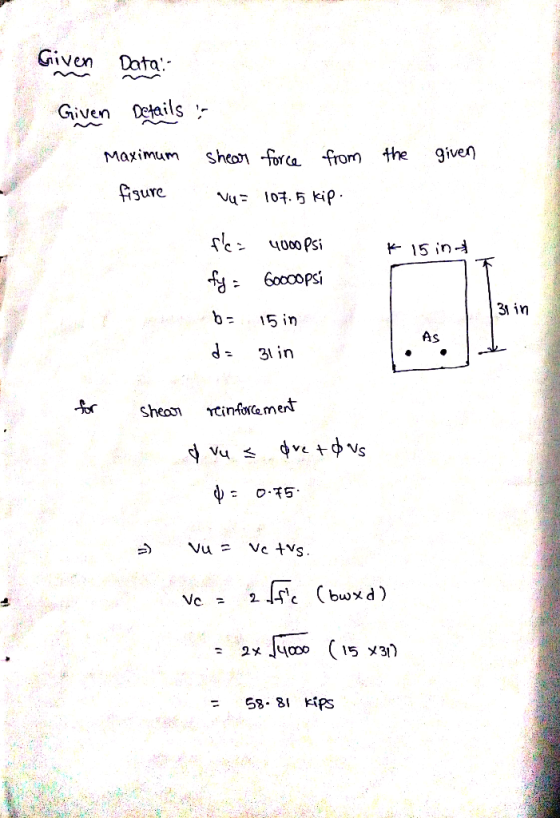

A reinforced concrete beam shown in Figure below is 15-in. wide and has effective depth of31 in. ...
A reinforced concrete beam has the following properties: Beam width, b = 320 mm Effective depth,...
A reinforced concrete beam has the following properties:
Beam width, b = 320 mm
Effective depth, d = 640 mm
Concrete strength, f’c = 21 MPa
Reinforcing steel strength, fy = 400 MPa
If the factored shear force at the critical section is 210,000 N,
compute the nominal shear carried
by the shear reinforcement.
EXERCISE - USD SHEAR 1. A reinforced concrete beam has the following properties: Beam width, b = 320 mm Effective depth, d = 640 mm Concrete...
Problem 1: A reinforced concrete beam having the cross section shown is on a simple span...
Problem 1: A reinforced concrete beam having the cross section shown is on a simple span of 26.5ft. It has already been estimated that the applied factored moment, Mu, is 700 k-ft. Assume 60ksi. interior exposure, #3 stirrups, f'e 3ksi, fy Required: 1) Analyze if the beam is adequate for moment only. (3 points) Solution: 91 34.4" d 38" 6u-7 4.#9 (4)
Problem 1: A reinforced concrete beam having the cross section shown is on a simple span of 26.5ft....
Problem 1 (50% 16.0 The normal weight reinforced concrete beam shown has a 15' cantilever span...
Problem 1 (50% 16.0 The normal weight reinforced concrete beam shown has a 15' cantilever span and the following properties fc 3000 psi fy - 40 ksi 18.0 6-10 bars (a) (10%) Determine the cracking moment of the beam. 24.0 Do not complete any code checks (min/max steel, min. beam width, etc.) 3.0
Problem 2 (25 points) A rectangular reinforced concrete beam has a width b-15 inches and effecti...
Problem 2 (25 points) A rectangular reinforced concrete beam has a width b-15 inches and effecti Concrete com ve depth d-24 inches. orcement fy- 60 ksi. imate load - 6 k/R pressive strength fe -4,000 psi and yield stress of steel reinf The beam is simply supported and subjected to a uniformly distributed ulti that includes the weight of the beam. Span is 28 feet. Assume interior exposure. s and show the proposed shear reinforcement Design the beam for shear...
Reinforced concrete Problem #1 (40 points): A beam with x-section shown in the figure is made...
Reinforced concrete
Problem #1 (40 points): A beam with x-section shown in the figure is made out of concrete with compressive strength fc = 4000 psi and the steel reinfrocemnt is of Grade 60 (fy 60000psi). Determine 1 The maximum compressive stress in the concrete f and the tensils stress in the steel , if the section is subjected to a bending moment of 130 ft-k (assume n 8) N.A._ 23" 23-х 4 #10 (5.06 in. 3" 18"
Concrete design Problem #2: Determine the appropriate shear reinforcement required for the beam shown (spacing of...
Concrete design
Problem #2: Determine the appropriate shear reinforcement required for the beam shown (spacing of stirrups). Do not consider different loading cases for live loads and the dead load shown includes the beam's weight. Assumere 4000 psi, fy-60000 psi, and use # 3 U-shaped stirrups Note: Divide the beam into segments, 36" each where appropriate. 20k () 30k(L) 0-4 255 sy 5 #10
Design a reinforced concrete beam that has a rectangular cross section with a width b =...
Design a reinforced concrete beam that has a rectangular cross section with a width b = 24 in. The depth h is limited by architectural reasons to 16 in. It has to carry a factored moment Mu = 360 kip- ft. including the self-weight. The design should satisfy ACI 318 for tension controlled members. Use Grade 60 steel and a specified concrete compressive strength = 4,000 psi. Determine the flexural reinforcement for the beam, and use compression steel if needed....
The T-beam shown in Figure 1 supports the un-factored dead load of 1.4 kips/ft and live...
The T-beam shown in Figure 1 supports the un-factored dead load
of 1.4 kips/ft and live load of 1.5 kips/ft. The dead load does not
include the self-weight of the beam. The material properties are as
follows: fc’=3000 psi; fy=60,000 psi. Design the shear
reinforcement (stirrups). Plot the stirrups distribution along the
span of the beam.
DL= 1.4 kips/ft ; L2=1.5 kips/Ft * 75 Sz=7 X * b=3616. hr-6in k ) انا امه hw-lain + * bw=12 in
Name: Date: 2. (+35) Design a typical interior tension-reinforced T-beam to resist positive moment. Beam dimension...
Name: Date: 2. (+35) Design a typical interior tension-reinforced T-beam to resist positive moment. Beam dimension is given. The service loads are 150 psf dead load (doesn't include the beam weight) and 350 psf live load. The beam is on a simple span of 20 ft. Use f:=4000 psi for strength concrete and fy=60000 psi for steel reinforcement. 8-0* (typ.)
simply supported reinforced concrete beam of rectangular section is hung on the left end by a 400mm square post working in tension, as shown in the figure below. The beam supports a uniform dead l...
simply supported reinforced concrete beam of rectangular section is hung on the left end by a 400mm square post working in tension, as shown in the figure below. The beam supports a uniform dead load (DL) gf 100 KN/m (excluding its own weight) and upiform live load LL) of 40KN/m. The beam is reinforced with 025 longitudinal rebars with 40mm cleat cover to the stirrups. Material properties: fy 420 MPa, fe 25 MPa. Beam dimension b 400mm and h 600mm....
A reinforced concrete beam has the following properties:
Beam width, b = 320 mm
Effective depth, d = 640 mm
Concrete strength, f’c = 21 MPa
Reinforcing steel strength, fy = 400 MPa
If the factored shear force at the critical section is 210,000 N,
compute the nominal shear carried
by the shear reinforcement.
EXERCISE - USD SHEAR 1. A reinforced concrete beam has the following properties: Beam width, b = 320 mm Effective depth, d = 640 mm Concrete...
Problem 1: A reinforced concrete beam having the cross section shown is on a simple span of 26.5ft. It has already been estimated that the applied factored moment, Mu, is 700 k-ft. Assume 60ksi. interior exposure, #3 stirrups, f'e 3ksi, fy Required: 1) Analyze if the beam is adequate for moment only. (3 points) Solution: 91 34.4" d 38" 6u-7 4.#9 (4)
Problem 1: A reinforced concrete beam having the cross section shown is on a simple span of 26.5ft....
Problem 1 (50% 16.0 The normal weight reinforced concrete beam shown has a 15' cantilever span and the following properties fc 3000 psi fy - 40 ksi 18.0 6-10 bars (a) (10%) Determine the cracking moment of the beam. 24.0 Do not complete any code checks (min/max steel, min. beam width, etc.) 3.0
Problem 2 (25 points) A rectangular reinforced concrete beam has a width b-15 inches and effecti Concrete com ve depth d-24 inches. orcement fy- 60 ksi. imate load - 6 k/R pressive strength fe -4,000 psi and yield stress of steel reinf The beam is simply supported and subjected to a uniformly distributed ulti that includes the weight of the beam. Span is 28 feet. Assume interior exposure. s and show the proposed shear reinforcement Design the beam for shear...
Reinforced concrete
Problem #1 (40 points): A beam with x-section shown in the figure is made out of concrete with compressive strength fc = 4000 psi and the steel reinfrocemnt is of Grade 60 (fy 60000psi). Determine 1 The maximum compressive stress in the concrete f and the tensils stress in the steel , if the section is subjected to a bending moment of 130 ft-k (assume n 8) N.A._ 23" 23-х 4 #10 (5.06 in. 3" 18"
Concrete design
Problem #2: Determine the appropriate shear reinforcement required for the beam shown (spacing of stirrups). Do not consider different loading cases for live loads and the dead load shown includes the beam's weight. Assumere 4000 psi, fy-60000 psi, and use # 3 U-shaped stirrups Note: Divide the beam into segments, 36" each where appropriate. 20k () 30k(L) 0-4 255 sy 5 #10
The T-beam shown in Figure 1 supports the un-factored dead load
of 1.4 kips/ft and live load of 1.5 kips/ft. The dead load does not
include the self-weight of the beam. The material properties are as
follows: fc’=3000 psi; fy=60,000 psi. Design the shear
reinforcement (stirrups). Plot the stirrups distribution along the
span of the beam.
DL= 1.4 kips/ft ; L2=1.5 kips/Ft * 75 Sz=7 X * b=3616. hr-6in k ) انا امه hw-lain + * bw=12 in
Name: Date: 2. (+35) Design a typical interior tension-reinforced T-beam to resist positive moment. Beam dimension is given. The service loads are 150 psf dead load (doesn't include the beam weight) and 350 psf live load. The beam is on a simple span of 20 ft. Use f:=4000 psi for strength concrete and fy=60000 psi for steel reinforcement. 8-0* (typ.)
simply supported reinforced concrete beam of rectangular section is hung on the left end by a 400mm square post working in tension, as shown in the figure below. The beam supports a uniform dead load (DL) gf 100 KN/m (excluding its own weight) and upiform live load LL) of 40KN/m. The beam is reinforced with 025 longitudinal rebars with 40mm cleat cover to the stirrups. Material properties: fy 420 MPa, fe 25 MPa. Beam dimension b 400mm and h 600mm....
