Add Answer to:

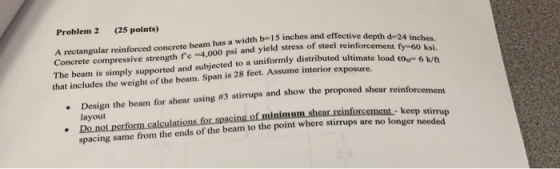

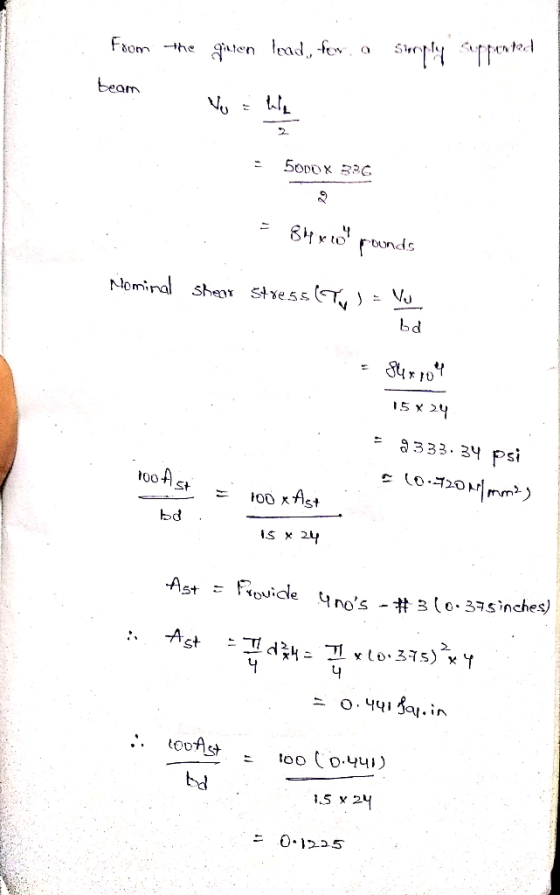

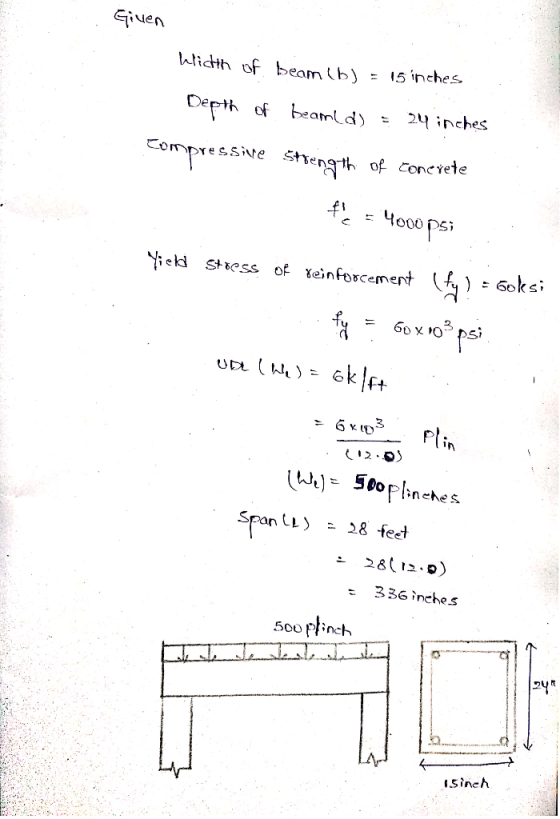

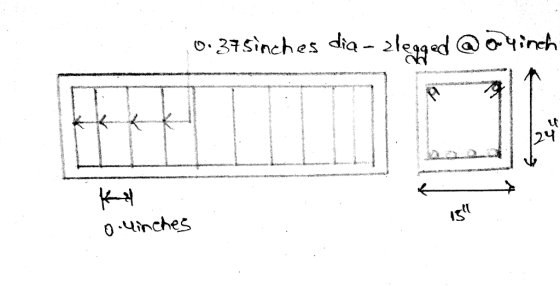

Problem 2 (25 points) A rectangular reinforced concrete beam has a width b-15 inches and effecti...
A rectangular reinforced concrete beam of span 16 ft supports a concentrated load of 40 kips...
A rectangular reinforced concrete beam of span 16 ft supports a concentrated load of 40 kips at mid-point of the beam and a uniformly-distributed load of 4 kips/ft over the entire span. Given: (a) The breadth of the beam is 18 inches. (b) Concrete compressive strength, fc, is 3500 psi. (c) Rebar is Grade 40 steel i) Determine the maximum moment and maximum shear acting on the beam. ii) Determine the minimum effective depth 'd' of the beam section (rounded...
A rectangular reinforced concrete beam of span 16 ft supports a concentrated load of 40 kips...
A rectangular reinforced concrete beam of span 16 ft supports a concentrated load of 40 kips at mid-point of the beam and a uniformly-distributed load of 4 kips/ft over the entire span. Given: (a) The breadth of the beam is 18 inches. (b) Concrete compressive strength, f 'c, is 3500 psi. (c) Rebar is Grade 40 steel i) Determine the maximum moment and maximum shear acting on the beam. ii) Determine the minimum effective depth 'd' of the beam section...
simply supported reinforced concrete beam of rectangular section is hung on the left end by a 400mm square post working in tension, as shown in the figure below. The beam supports a uniform dead l...
simply supported reinforced concrete beam of rectangular section is hung on the left end by a 400mm square post working in tension, as shown in the figure below. The beam supports a uniform dead load (DL) gf 100 KN/m (excluding its own weight) and upiform live load LL) of 40KN/m. The beam is reinforced with 025 longitudinal rebars with 40mm cleat cover to the stirrups. Material properties: fy 420 MPa, fe 25 MPa. Beam dimension b 400mm and h 600mm....
Design a reinforced concrete beam that has a rectangular cross section with a width b =...
Design a reinforced concrete beam that has a rectangular cross section with a width b = 24 in. The depth h is limited by architectural reasons to 16 in. It has to carry a factored moment Mu = 360 kip- ft. including the self-weight. The design should satisfy ACI 318 for tension controlled members. Use Grade 60 steel and a specified concrete compressive strength = 4,000 psi. Determine the flexural reinforcement for the beam, and use compression steel if needed....
1.Design reinforcement for a rectangular R.C. beam 250mm wide simply supported over an effective span of...
1.Design reinforcement for a rectangular R.C. beam 250mm wide simply supported over an effective span of 4m loaded with service load of 50kN/m including self weight. 2.A simply supported rectangular beam 230mmX415mm (eff..) is subjected to a factored shear of 150kN. Find spacing of 8mm dia. 2 legged Fe 415 steel grade stirrups if beam is reinforced with 0.85% steel. Take M20 concrete grade.
A rectangular beam having b=16 in and d=26 in spans 28 ft face to face of...
A rectangular beam having b=16 in and d=26 in spans 28 ft face
to face of simple supports. It is reinforced for flexure with 6#11
bars that continue uninterrupted to the ends of the span. It is to
carry service dead load 2.0 kips/ft (including self weight) and
service live load 3.6 kips/ft, both uniformly distributed along the
span. Design the shear reinforcement using vertical U stirrups.
Economize the spacing of stirrups in appropriate number of bands.
Material strengths are...
Problem 1: A reinforced concrete beam having the cross section shown is on a simple span...
Problem 1: A reinforced concrete beam having the cross section shown is on a simple span of 26.5ft. It has already been estimated that the applied factored moment, Mu, is 700 k-ft. Assume 60ksi. interior exposure, #3 stirrups, f'e 3ksi, fy Required: 1) Analyze if the beam is adequate for moment only. (3 points) Solution: 91 34.4" d 38" 6u-7 4.#9 (4)
Problem 1: A reinforced concrete beam having the cross section shown is on a simple span of 26.5ft....
Reinforced Concrete Design Please answer it with good write . Problem 1: The reinforced concrete cantilever beam shown is subjected to a concentrated load P- 2 kips, at its free end. Determine th...
Reinforced Concrete Design
Please answer it with good write .
Problem 1: The reinforced concrete cantilever beam shown is subjected to a concentrated load P- 2 kips, at its free end. Determine the development length of the shown bars using the detailed and simplified methods for the following cases: a) straight bars b) 90 hooks c )180, hooks The column width is 22 inches. Concrete cover is measured from the concrete surface to the center of the reinforcement. fc 4...
1. A simply supported rectangular concrete beam has a clear span of 6m has a width...
1. A simply supported rectangular concrete beam has a clear span of 6m has a width of 400mm and has an effective depth of 625mm. The beam supports a total factored load of 168kN/m which includes the weight of the beam. Use fc’=28MPa, fy=414MPa. Use normal weight of concrete with 1.0. Determine approximately the total number of stirrups needed for the beam. 2. A rectangular beam reinforced for tension only has b=200mm and d=350mm. The tension steel area provided is...
A reinforced concrete beam shown in Figure below is 15-in. wide and has effective depth of31 in. ...
A reinforced concrete beam shown in Figure below is 15-in. wide and has effective depth of31 in. The factored loads are shown. (The factored uniform load includes the weight of the beam). Design the web reinforcement using the Vu diagram shown in the Figure (for a symmetric half). Assume No. 3 stirrups,fc '-4000 psi and fy=fyt-60000psi. 100 kip 100 kip d-31 in. 15 ft clear span As s) 102.5 kip se 2.5 ki @y、阪、もw cl.* 3..-K: ps
A reinforced concrete...
A rectangular reinforced concrete beam of span 16 ft supports a concentrated load of 40 kips at mid-point of the beam and a uniformly-distributed load of 4 kips/ft over the entire span. Given: (a) The breadth of the beam is 18 inches. (b) Concrete compressive strength, fc, is 3500 psi. (c) Rebar is Grade 40 steel i) Determine the maximum moment and maximum shear acting on the beam. ii) Determine the minimum effective depth 'd' of the beam section (rounded...
simply supported reinforced concrete beam of rectangular section is hung on the left end by a 400mm square post working in tension, as shown in the figure below. The beam supports a uniform dead load (DL) gf 100 KN/m (excluding its own weight) and upiform live load LL) of 40KN/m. The beam is reinforced with 025 longitudinal rebars with 40mm cleat cover to the stirrups. Material properties: fy 420 MPa, fe 25 MPa. Beam dimension b 400mm and h 600mm....
A rectangular beam having b=16 in and d=26 in spans 28 ft face
to face of simple supports. It is reinforced for flexure with 6#11
bars that continue uninterrupted to the ends of the span. It is to
carry service dead load 2.0 kips/ft (including self weight) and
service live load 3.6 kips/ft, both uniformly distributed along the
span. Design the shear reinforcement using vertical U stirrups.
Economize the spacing of stirrups in appropriate number of bands.
Material strengths are...
Problem 1: A reinforced concrete beam having the cross section shown is on a simple span of 26.5ft. It has already been estimated that the applied factored moment, Mu, is 700 k-ft. Assume 60ksi. interior exposure, #3 stirrups, f'e 3ksi, fy Required: 1) Analyze if the beam is adequate for moment only. (3 points) Solution: 91 34.4" d 38" 6u-7 4.#9 (4)
Problem 1: A reinforced concrete beam having the cross section shown is on a simple span of 26.5ft....
Reinforced Concrete Design
Please answer it with good write .
Problem 1: The reinforced concrete cantilever beam shown is subjected to a concentrated load P- 2 kips, at its free end. Determine the development length of the shown bars using the detailed and simplified methods for the following cases: a) straight bars b) 90 hooks c )180, hooks The column width is 22 inches. Concrete cover is measured from the concrete surface to the center of the reinforcement. fc 4...
A reinforced concrete beam shown in Figure below is 15-in. wide and has effective depth of31 in. The factored loads are shown. (The factored uniform load includes the weight of the beam). Design the web reinforcement using the Vu diagram shown in the Figure (for a symmetric half). Assume No. 3 stirrups,fc '-4000 psi and fy=fyt-60000psi. 100 kip 100 kip d-31 in. 15 ft clear span As s) 102.5 kip se 2.5 ki @y、阪、もw cl.* 3..-K: ps
A reinforced concrete...
