The current in a long solenoid of radius 4 cm and 17 turns/cm is varied with...

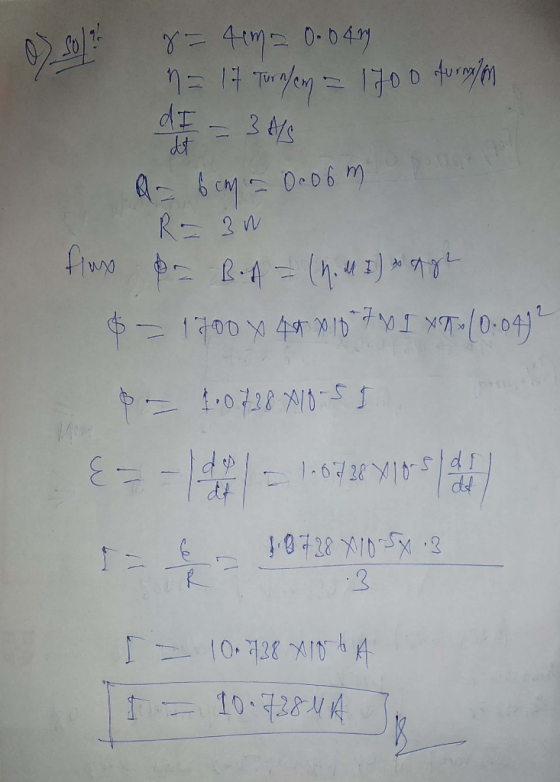

The current in a long solenoid of radius 4 cm and 17 turns/cm is varied with time at a rate of 3 A/s. A circular loop of wire of radius 6 cm and resistance 3 Ω surrounds the solenoid. Find the electrical current induced in the loop (in µA).
Homework Answers
PAdd Answer to:
The current in a long solenoid of radius 4 cm and 17 turns/cm is
varied with...
PLEASE SHOW WORK! The current in a long solenoid of radius 3 cm and 471 turns...
PLEASE SHOW WORK!
The current in a long solenoid of radius 3 cm and 471 turns per meter is varied with time at a rate of 2 A/s. A circular loop of wire of radius 5 cm and resistance 2 1 surrounds the solenoid. Find the electrical current induced in the loop in microamperes. Please enter a numerical answer below. Accepted formats are numbers or "e" based scientific notation e.g. 0.23, -2, 126, 5.23e-8 Enter answer here 0.533 ☺ uA...
solenoid current 4. A long solenoid with n turns per unit length and radius a is...
solenoid current
4. A long solenoid with n turns per unit length and radius a is surrounded by a single loop of wire of radius r, and resistance R. (The loop and solenoid are concentric, and r>a). The current in the solenoid varies aslo e-at. Find an expression for the current induced in the loop.
A coil of 15 turns and radius 10.0 cm surrounds a long solenoid of radius 2.30...
A coil of 15 turns and radius 10.0 cm surrounds a long solenoid of radius 2.30 cm and 1.00 times 10^3 turns/meter (see figure below). The current in the solenoid changes as I = 8.00 sin 120 t, where I is in amperes and t is in seconds. Find the induced emf (in volts) in the 15-turn coil as a function of time sigma =
A coil of 15 turns and radius 10.0 cm surrounds a long solenoid of radius 1.70 cm
A coil of 15 turns and radius 10.0 cm surrounds a long solenoid of radius 1.70 cm and 1.00 × 10³ turns/meter (see figure below). The current in the solenoid changes as I=5.00 sin 120 t, where I is in amperes and t is in seconds. Find the induced emf (in volts) in the 15-turn coil as a function of time.ɛ= _______
A coil of 15 turns and radius 10.0 cm surrounds a long solenoid of radius 2.10...
A coil of 15 turns and radius 10.0 cm surrounds a long solenoid of radius 2.10 cm and 1.00 103 turns/meter (see figure below). The current in the solenoid changes as I = 2.00 sin 120 t, where I is in amperes and t is in seconds. Find the induced emf (in volts) in the 15-turn coil as a function of time.
A coil of 15 turns and radius 10.0 cm surrounds a long solenoid of radius 2.50...
A coil of 15 turns and radius 10.0 cm surrounds a long solenoid of radius 2.50 cm and 1.00x 103 turns/meter (see figure below). The current in the solenoid changes as I -5.00 sin 120 t, where I is in amperes and t is in seconds. Find the induced emf (in volts) in the 15-turn coil as a function of time. 15-turn coil Need Help? RedtWatch
A coil with 230 turns, a radius of 3.4 cm , and a resistance of 19...
A coil with 230 turns, a radius of 3.4 cm , and a resistance of 19 Ω surrounds a solenoid with 170 turns/cm and a radius of 2.7 cm (Figure 1) . The current in the solenoid changes at a constant rate from 0 to 1.9 A in 0.16 s . a) Calculate the magnitude of the induced current in the coil. b Calculate the direction of the induced current in the coil. -from right to left through the resistor...
A solenoid of length 20 cm and diameter 4 cm is constructed with 400 turns of...
A solenoid of length 20 cm and diameter 4 cm is constructed with 400 turns of wire The resistance of the wire can be neglected. A currenti is supplied to the solenoid in such a wav tha increases from zero to 0.5 A at a uniform rate over 2 seconds. Th 0.5 A. Calculate: e current then stays constant at (a) the inductance of the solenoid, (b) the maximum magnetic field in the solenoid, (c) the potential difference across the...
Problem 3 Part A A copper wire with resistance 0.010 Ω is shaped into a complete circle of radius R 10 cm and placed in a long solenoid so that the axis of the solenoid and the axis of the wire loop...
Problem 3 Part A A copper wire with resistance 0.010 Ω is shaped into a complete circle of radius R 10 cm and placed in a long solenoid so that the axis of the solenoid and the axis of the wire loop coincide. The current in the solenoid is turned on and then slowly decreased. The magnetic field strength is initially B 0.750 T and subsequently decreases in time at the constant rate -0.035 T/s. (a) Calculate the induced emf...
In figure (a), a circular loop of wire with a radius of 6.00 cm surrounds a...
In figure (a), a circular loop of wire with a radius of 6.00 cm surrounds a concentric solenoid with a radius of 2.00 cm and 8000 windings per meter. Figure (b) shows the current in the solenoid as a function of time. Figure (c) shows the cumulative amount of thermal energy generated in the outer loop as a function of time (due to the induced current and the resistance of the outer loop). What is the resistance of the outer...
PLEASE SHOW WORK!
The current in a long solenoid of radius 3 cm and 471 turns per meter is varied with time at a rate of 2 A/s. A circular loop of wire of radius 5 cm and resistance 2 1 surrounds the solenoid. Find the electrical current induced in the loop in microamperes. Please enter a numerical answer below. Accepted formats are numbers or "e" based scientific notation e.g. 0.23, -2, 126, 5.23e-8 Enter answer here 0.533 ☺ uA...
solenoid current
4. A long solenoid with n turns per unit length and radius a is surrounded by a single loop of wire of radius r, and resistance R. (The loop and solenoid are concentric, and r>a). The current in the solenoid varies aslo e-at. Find an expression for the current induced in the loop.
A coil of 15 turns and radius 10.0 cm surrounds a long solenoid of radius 2.30 cm and 1.00 times 10^3 turns/meter (see figure below). The current in the solenoid changes as I = 8.00 sin 120 t, where I is in amperes and t is in seconds. Find the induced emf (in volts) in the 15-turn coil as a function of time sigma =
A coil of 15 turns and radius 10.0 cm surrounds a long solenoid of radius 2.50 cm and 1.00x 103 turns/meter (see figure below). The current in the solenoid changes as I -5.00 sin 120 t, where I is in amperes and t is in seconds. Find the induced emf (in volts) in the 15-turn coil as a function of time. 15-turn coil Need Help? RedtWatch
A solenoid of length 20 cm and diameter 4 cm is constructed with 400 turns of wire The resistance of the wire can be neglected. A currenti is supplied to the solenoid in such a wav tha increases from zero to 0.5 A at a uniform rate over 2 seconds. Th 0.5 A. Calculate: e current then stays constant at (a) the inductance of the solenoid, (b) the maximum magnetic field in the solenoid, (c) the potential difference across the...
Problem 3 Part A A copper wire with resistance 0.010 Ω is shaped into a complete circle of radius R 10 cm and placed in a long solenoid so that the axis of the solenoid and the axis of the wire loop coincide. The current in the solenoid is turned on and then slowly decreased. The magnetic field strength is initially B 0.750 T and subsequently decreases in time at the constant rate -0.035 T/s. (a) Calculate the induced emf...
In figure (a), a circular loop of wire with a radius of 6.00 cm surrounds a concentric solenoid with a radius of 2.00 cm and 8000 windings per meter. Figure (b) shows the current in the solenoid as a function of time. Figure (c) shows the cumulative amount of thermal energy generated in the outer loop as a function of time (due to the induced current and the resistance of the outer loop). What is the resistance of the outer...
