1. A step-down chopper is connected to a 150VDC source and a 3Ω resistive load. The...

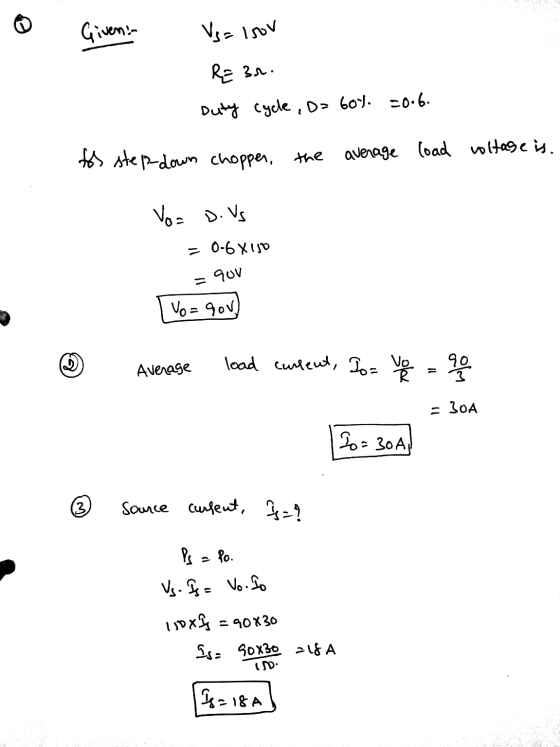

1. A step-down chopper is connected to a 150VDC source and a 3Ω resistive load. The chopper switching frequency is 5kHz with a 60% duty-cycle (D) Average load voltage?
2, A step-down chopper is connected to a 150VDC source and a 3Ω resistive load. The chopper switching frequency is 5kHz with a 60% duty-cycle (D) Average load current ?
3. A step-down chopper is connected to a 150VDC source and a 3Ω resistive load. The chopper switching frequency is 5kHz with a 60% duty-cycle (D) Average source current?
