A 220V, 4 pole, 60 Hz, 1-phase induction motor has an effective rotor resistance and leakage...
Homework Answers
Add Answer to:
A 220V, 4 pole, 60 Hz, 1-phase induction motor has an
effective rotor resistance and leakage...
Problem Solving: 1. A 220V, 4-pole, 60Hz, 1-phase induction motor has an effective rotor resistance and...

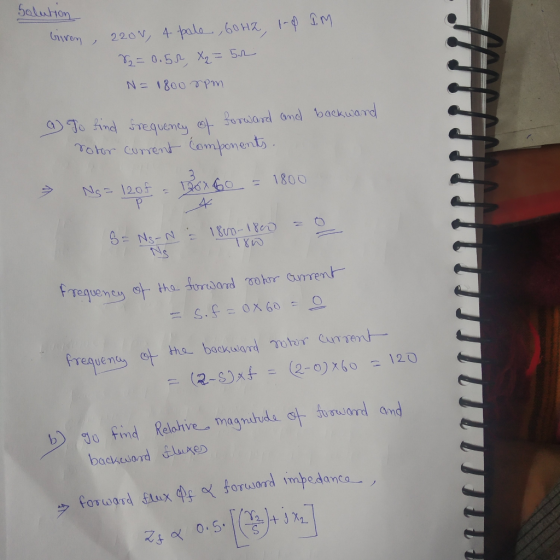

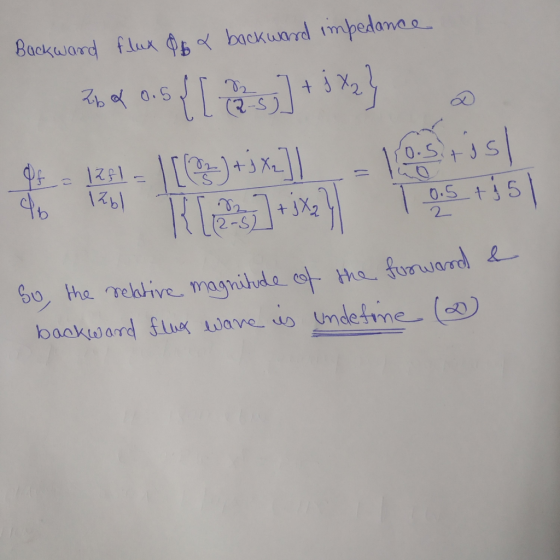

Problem Solving: 1. A 220V, 4-pole, 60Hz, 1-phase induction motor has an effective rotor resistance and leakage reactance of 0.5 Ohms and 5 ohms respectively. It is running at a speed of 1,800 rpm. Determine: a. Frequencies of forward and backward rotor current components b. Relative magnitudes of forward and backward fluxes. Neglect magnetizing current and stator impedance. A 220-W, 2-pole, 115-V, 60-Hz single-phase induction motor delivers rated output at a slip 10%. The total copper loss at full load...
A wound rotor, induction motor has a rotor resistance of 0.6 ohms per phase and a...
A wound rotor, induction motor has a rotor resistance of 0.6 ohms per phase and a rotor leakage reactance of 8 ohms . a) What is the operating speed (rpm) of this 2-pole induction motor fed from a 50 Hz supply if the slip is 5%? b) If maximum torque occurs when R2 = sX2, what is the slip at maximum torque? c) What resistance must be added to the rotor circuit to give maximum starting torque?
d) A 440V, 50 Hz, 4-pole, 3 phase induction motor has a total leakage impedance of (0.3 +j5.5+0.25/s) ohm (delta phase)...
d) A 440V, 50 Hz, 4-pole, 3 phase induction motor has a total leakage impedance of (0.3 +j5.5+0.25/s) ohm (delta phase). Determine the external resistance to be inserted in each phase of the rotor winding such that the motor produce a gross torque of 130 N-m at a speed of 1300 rpm. (10 Marks)
d) A 440V, 50 Hz, 4-pole, 3 phase induction motor has a total leakage impedance of (0.3 +j5.5+0.25/s) ohm (delta phase). Determine the external resistance to...
5 Marks) A 4-pole, 3 phase, 50 Hz, 230 V induction motor. Each phase of rotor winding b) has one-fourth the number of t...
5 Marks) A 4-pole, 3 phase, 50 Hz, 230 V induction motor. Each phase of rotor winding b) has one-fourth the number of turns of each stator. The full-load speed is 1,455 rpm. The rotor resistance is 0.3 Ω and rotor standstill reactance is 1.0 Ω per phase. The rotor and stator windings are similar. Stator losses are equal to 50 Watts. Friction and windage losses are equal to 30 W. Calculate ) Blocked rotor voltage per phase. 2 Marks)...
Consider a three-phase, 2-pole induction machine. Neglect the stator winding resistance and the leakage inductance. The...
Consider a three-phase, 2-pole induction machine. Neglect the stator winding resistance and the leakage inductance. The rated voltage is 217V (line-line, rms) at 60 Hz. Lm65mH, and the peak flux density in the air gap is 0.89T. Consider that the phase-a voltage reaches its positive peak at wt-0. Assuming that the rotor circuit is somehow open circuited, calculate the position(angle) of the magnetizing current space vector ims at wt-4g°.
A 4-pole, 60 hz, 3-phase induction motor has a blocked rotor reactance per phase that is...
A 4-pole, 60 hz, 3-phase induction motor has a blocked rotor reactance per phase that is four times the rotor resistance per phase. At what speed will the motor develop maximum torque? 1200 rpm 1500 rpm 1350 rpm 1620 rpm What is the ratio of maximum to full load torque in a motor having slip of 4% at full load and 20% at maximum torque? 15 3 2.6 5.2 If a motor has a slip of 2% at rated voltage,...
-23 An 8-pole, 230-V, 60-Hz, A-connected, three-phase induction motor has a rotor impedance of 0.025 +...
-23 An 8-pole, 230-V, 60-Hz, A-connected, three-phase induction motor has a rotor impedance of 0.025 + 0.112/phase. The stator winding impedance is negligible. Determine (a) the speed at which the motor develops the maximum torque, (b) the maximum torque of the motor, and (c) the start- ing torque as a percentage of maximum torque. What additional resistance must be inserted in the rotor circuit to make the starting torque equal to 75% of the maximum torque?
Name: 23. A 3-phase, 5000 hp, 6000 v,60 Hz, 12-pole wound-rotor induction motor has the 1, resistance between stator terminals-o12 Ω 2. resistance between rotor slip-rings-0.0073 Ω 3. windage and...
Name: 23. A 3-phase, 5000 hp, 6000 v,60 Hz, 12-pole wound-rotor induction motor has the 1, resistance between stator terminals-o12 Ω 2. resistance between rotor slip-rings-0.0073 Ω 3. windage and friction losses-51 kW following characteristics 4. iron losses in the stator-39 kW 5. locked rotor current at 6000 V-1800 A 6. active power to the stator with rotor locked 2207 kw Calculate under full-load voltage locked-rotor conditions a. Reactive power absorbed by the motor b. FR losses in the stator...
A 480 V, 60 Hz, 4-pole-pair, three-phase, delta-connected induction motor has the following parameters: R1=0.42 Ω,...
A 480 V, 60 Hz, 4-pole-pair, three-phase, delta-connected induction motor has the following parameters: R1=0.42 Ω, R2=0.23 Ω, X1=0.48 Ω, X2=0.29 Ω, Xm=29.71 Ω where: R1 is the stator resistance R2 is the rotor resistance reflected in the stator; X1 is the stator leakage inductance; X2 is the rotor leakage inductance reflected in the stator; Xm is the magnetising inductance; The rotational losses are 2450 W. The motor drives a mechanical load at a speed of...
3) A four pole 75 HP 50 Hz induction motor with an efficiency of 93.4% has...
3) A four pole 75 HP 50 Hz induction motor with an efficiency of 93.4% has equivalent resistance and equivalent reactance per phase of 0.3000and 0.78 000OTHE blocked rotor voltage per phase is 175V. If the rotor is turning at 1425 rpm, determine synchronous speed, slip, rotor impedance, rotor current, total three phase apparent power crossing the air gap, its active and reactive components, rotor power factor, shaft speed, mechanical power developed and developed torque. (30 Points)
Problem Solving: 1. A 220V, 4-pole, 60Hz, 1-phase induction motor has an effective rotor resistance and leakage reactance of 0.5 Ohms and 5 ohms respectively. It is running at a speed of 1,800 rpm. Determine: a. Frequencies of forward and backward rotor current components b. Relative magnitudes of forward and backward fluxes. Neglect magnetizing current and stator impedance. A 220-W, 2-pole, 115-V, 60-Hz single-phase induction motor delivers rated output at a slip 10%. The total copper loss at full load...
d) A 440V, 50 Hz, 4-pole, 3 phase induction motor has a total leakage impedance of (0.3 +j5.5+0.25/s) ohm (delta phase). Determine the external resistance to be inserted in each phase of the rotor winding such that the motor produce a gross torque of 130 N-m at a speed of 1300 rpm. (10 Marks)
d) A 440V, 50 Hz, 4-pole, 3 phase induction motor has a total leakage impedance of (0.3 +j5.5+0.25/s) ohm (delta phase). Determine the external resistance to...
5 Marks) A 4-pole, 3 phase, 50 Hz, 230 V induction motor. Each phase of rotor winding b) has one-fourth the number of turns of each stator. The full-load speed is 1,455 rpm. The rotor resistance is 0.3 Ω and rotor standstill reactance is 1.0 Ω per phase. The rotor and stator windings are similar. Stator losses are equal to 50 Watts. Friction and windage losses are equal to 30 W. Calculate ) Blocked rotor voltage per phase. 2 Marks)...
Consider a three-phase, 2-pole induction machine. Neglect the stator winding resistance and the leakage inductance. The rated voltage is 217V (line-line, rms) at 60 Hz. Lm65mH, and the peak flux density in the air gap is 0.89T. Consider that the phase-a voltage reaches its positive peak at wt-0. Assuming that the rotor circuit is somehow open circuited, calculate the position(angle) of the magnetizing current space vector ims at wt-4g°.
-23 An 8-pole, 230-V, 60-Hz, A-connected, three-phase induction motor has a rotor impedance of 0.025 + 0.112/phase. The stator winding impedance is negligible. Determine (a) the speed at which the motor develops the maximum torque, (b) the maximum torque of the motor, and (c) the start- ing torque as a percentage of maximum torque. What additional resistance must be inserted in the rotor circuit to make the starting torque equal to 75% of the maximum torque?
Name: 23. A 3-phase, 5000 hp, 6000 v,60 Hz, 12-pole wound-rotor induction motor has the 1, resistance between stator terminals-o12 Ω 2. resistance between rotor slip-rings-0.0073 Ω 3. windage and friction losses-51 kW following characteristics 4. iron losses in the stator-39 kW 5. locked rotor current at 6000 V-1800 A 6. active power to the stator with rotor locked 2207 kw Calculate under full-load voltage locked-rotor conditions a. Reactive power absorbed by the motor b. FR losses in the stator...
3) A four pole 75 HP 50 Hz induction motor with an efficiency of 93.4% has equivalent resistance and equivalent reactance per phase of 0.3000and 0.78 000OTHE blocked rotor voltage per phase is 175V. If the rotor is turning at 1425 rpm, determine synchronous speed, slip, rotor impedance, rotor current, total three phase apparent power crossing the air gap, its active and reactive components, rotor power factor, shaft speed, mechanical power developed and developed torque. (30 Points)
