Suppose you have the instruction “Add 900”. Given the memory as follows, the contents of AC...
Suppose you have the instruction “Add 900”. Given the memory as follows, the contents of AC and the base register are 200 and 100 respectively. [6 marks]
Memory address value
800 900
900 1000
1000 500
1100 600
1200 800
1300 250

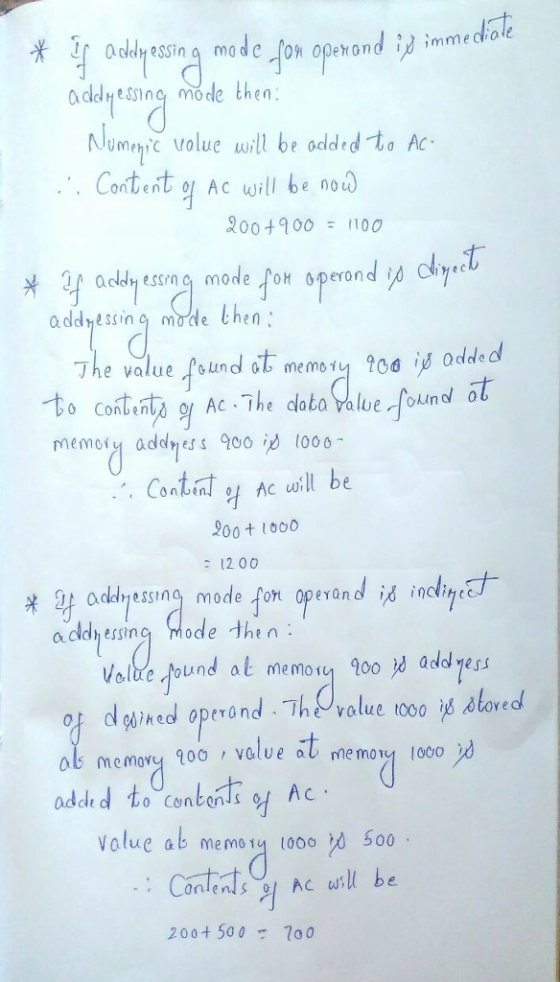

What would be loaded into the AC, if the addressing mode for the operand is:
- Immediate
- Direct
- Indirect

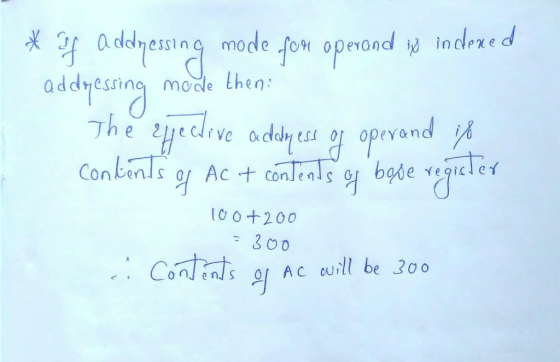

- Indexed
Homework Answers
