A certain copper wire has a resistance of 19.0 Ω . At some point along its...

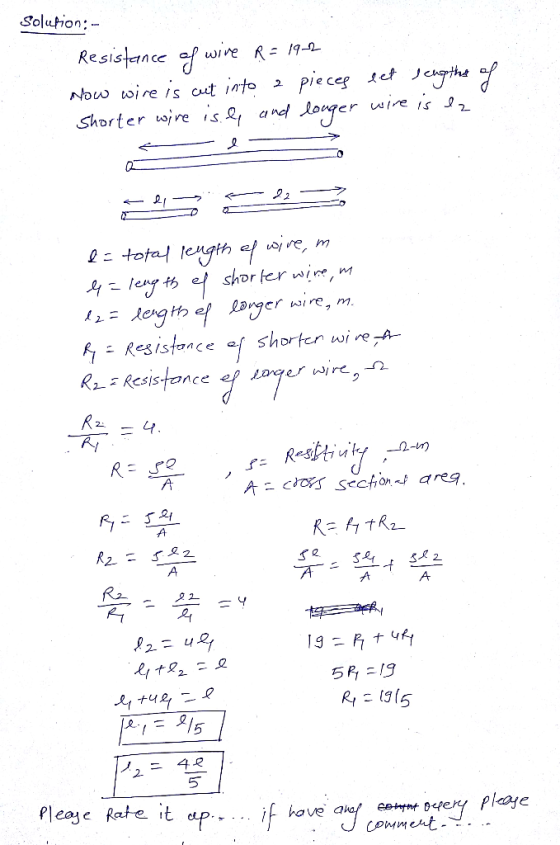

A certain copper wire has a resistance of 19.0 Ω . At some point along its length the wire was cut so that the resistance of one piece is 4.0 times the resistance of the other.
Part A: Determine the length of the short piece.
Homework Answers
Add Answer to:
A certain copper wire has a resistance of 19.0 Ω . At some point
along its...
Course Home KHome Work 3 Problem 18.16 Constants A certain copper wire has a resistance of...
Course Home KHome Work 3 Problem 18.16 Constants A certain copper wire has a resistance of 11.0 Ω At some point along its length the wire was cut so that the resistance of one piece is 5.0 times the resistance of the other
(1 point) 8. At 20°C, a length of copper wire has a resistance of 5.0 Ω...
(1 point) 8. At 20°C, a length of copper wire has a resistance of 5.0 Ω What is its resistance when the wire is heated to 80°C? Let α-0.004 at 20°C 01.2Ω 07.5 Ω 06.2 Ω 010 Ω
The resistance of a certain copper wire is 0.4 Ω. Determine the resistance of a tungsten...
The resistance of a certain copper wire is 0.4 Ω. Determine the resistance of a tungsten wire having the same dimensions as the copper wire. Express your answer to three significant figures and include the appropriate units.
A wire with a resistance of 50 Ω is drawn through a die so that its...
A wire with a resistance of 50 Ω is drawn through a die so that its new length is 2 times its original length. Find the resistance of the longer wire, assuming that the resistivity and density of the material are unchanged.
A copper wire has a resistance of 0.500 Ω at 20.0°C, and an iron wire has...
A copper wire has a resistance of 0.500 Ω at 20.0°C, and an iron wire has a resistance of 0.520 Ω at the same temperature. At what temperature are their resistances equal? The temperature coefficient of resistivity for copper is 3.90 *10^-3(°C)−1 and for iron it is 5.00 *10^-3(°C)−1.
A copper wire has a resistance of 0.540 Ω at 20.0°C, and an iron wire has...
A copper wire has a resistance of 0.540 Ω at 20.0°C, and an iron wire has a resistance of 0.579 Ω at the same temperature. At what temperature are their resistances equal? The temperature coefficient of resistivity for copper is 3.90 10-3(°C)−1 and for iron it is 5.00 10-3(°C)−1.
A wire has a resistance of 280 Ω . What will the wire's resistance be if...
A wire has a resistance of 280 Ω . What will the wire's resistance be if it is stretched to be 4.5 times its original length but its volume stays the same?
One copper wire has a cross sectional area of A and resistance R and length L....
One copper wire has a cross sectional area of A and resistance R and length L. A second copper wire has a length L and cross-sectional area 2A. What is the resistance of the second wire in terms of R? R/2 R 2R 4R Some other value
A certain wire has a resistance of 120 Ω. What is the resistance of a second...
A certain wire has a resistance of 120 Ω. What is the resistance of a second wire, made of the same material, that is 1/3 as long and has 1/3 the diameter?
A certain wire has a resistance of 140 Ω. What is the resistance of a second...
A certain wire has a resistance of 140 Ω. What is the resistance of a second wire, made of the same material, that is 1/3 as long and has 1/5 the diameter? (answer in ohms)
Course Home KHome Work 3 Problem 18.16 Constants A certain copper wire has a resistance of 11.0 Ω At some point along its length the wire was cut so that the resistance of one piece is 5.0 times the resistance of the other
(1 point) 8. At 20°C, a length of copper wire has a resistance of 5.0 Ω What is its resistance when the wire is heated to 80°C? Let α-0.004 at 20°C 01.2Ω 07.5 Ω 06.2 Ω 010 Ω
