Electrons passing through a flat semiconductor strip (lying in the x-y plane) carry a current of...

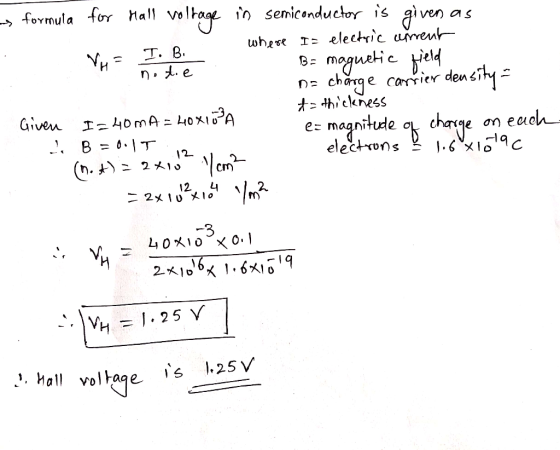

Electrons passing through a flat semiconductor strip (lying in the x-y plane) carry a current of 40 mA in the y-direction. If a magnetic field of 0.1 Tesla is applied in the z-direction (i.e. perpendicular to the strip) and the number of electrons per unit area is 2×1012 cm-2, what is the (Hall) voltage measured across the device in the x-direction?
Homework Answers
