Question

PROJECT TASKS 1. Read the problem definition below and write a C++ program that implements your solution. Readability of the program will be graded based on variable naming, indentation, commenting (not too little and not too much), spacing, consistency, and styling in general including choice of functions. [NOTE: the code at the end of this document does not completely meet requirements as it uses many single letter variables and has no internal documentation. You need to improve it.]

2. Compile and test your program

3. Run experiments and write a report of the performance of your implementation.

4. After you finish writing, testing, and running your experiments, you will need submit the program and your report for grading

PROBLEM Write a C++ program that has the following:

A) i. A class called AssortedSorter that has an array of integers of size at least 20001 and a counter that keeps track of how may numbers are in the array. ii. Member functions representing different sort methods as follows: • BubbleSort: implement the BubbleSort algorithm given in section 8.3 of textbook by Gaddis, Starting out with C++ from Control Structures through Objects. You should pass the array of numbers, how many numbers are in the array, and two reference parameters of type long int one to count loops and another to count swaps. Initialize the reference parameters to 0. First copy the data from the parameter array to the array in the class. The function should sort the array in the class. Put a statement to add one to the loop count just before “if (array[count] > array[count+1])”. Put a statement to add one to the swap count just before “temp = array[index]”.

• SelectionSort: implement the SelectionSort algorithm given in section 8.3 of textbook by Gaddis, Starting out with C++ from Control Structures through Objects. You should pass the array of numbers, how many numbers are in the array, and two reference parameters of type long int one to count loops and another to count swaps. Initialize the reference parameters to 0. First copy the data from the parameter array to the array in the class. The function should sort the array in the class. Put a statement to add one to the loop count just before the line “if (array[index] > minValue)”. Put a statement to add one to the swap count just before line “array[minIndex] = array[startScan]”.

• ShellSort: implement the ShellSort algorithm given at the end of this document. You should pass the array of numbers, a sequence array, how many numbers are in the array, and two reference parameters of type long int one to count loops and another to count swaps. Initialize the reference parameters to 0. First copy the data from the parameter array to the array in the class. The function should sort the array in the class. You will need a sequence array that contains number of elements in segments sorted per pass. An example may be: int sequence[] = { 364, 121, 40, 13, 4, 1, 0} ; Put a statement to add one to the loop count in the while loop. Put a statement to add one to the swap count just before the statement “array[j] = val”. Pass 0 for the variable start and stop is the number of elements minus 1.

• QuickSort: implement the non-recursive QuickSort algorithm given at the end of this document. You should pass the array of numbers, how many numbers are in the array, and two reference parameters of type long int one to count loops and another to count swaps. Initialize the reference parameters to 0. First copy the data from the parameter array to the array in the class. You will pass the count variables further by reference to the partition() function. Put two statements to add one to the loop count in the partition() function in the inner while loops. The first will be just before up++ and the second just before down--. Put two statements to add one to the swap count in the partition() function next to each of the calls to the swap() function. B) main(): In the main() function, declare an array of integers. You may choose any size of the array larger or equal to 20001. DO NOT USE THE C++11 array or STL vector. In the main function, ask a user how many numbers should be generated. Read the number into a variable which you may call UserNumOfNumbers. The number should be between 10 and 20000. The default should be 10000 numbers (that is to say the user should be able to say, “choose a number for me”). That many numbers are then generated and stored in the array using the rand() function found in the cstdlib standard library. You also need the ctime standard library to seed the time. Next, in the main function, create an object of AssortedSorter and call the four sort member functions described above one after another passing the array of numbers and assign the returned count of loop and data movements accordingly. Finally, display the counts that were returned by the different functions as follows: SORT ALGORITHM RUN EFFICIENCY ALGORITHM LOOP COUNT DATA MOVEMENT Bubble xxxxxxxxxx xxxxxxxxxx Selection xxxxxxxxxx xxxxxxxxxx Shell xxxxxxxxxx xxxxxxxxxx Quick xxxxxxxxxx xxxxxxxxxx The random number generator may look like this: srand(time(0)); for (int i = 0; i < UserNumOfNumbers; i++) array[i] = rand()%1000000 + 1;

Answer 1

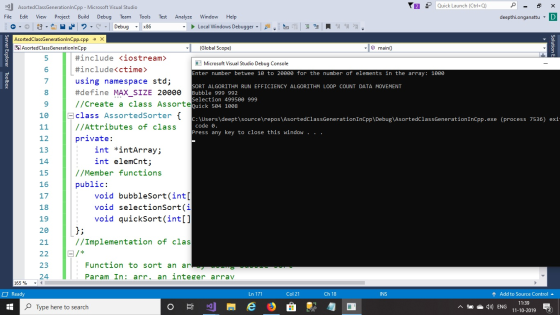

Screenshot

Program

#include <iostream>
#include<ctime>
using namespace std;
#define MAX_SIZE 20000
//Create a class AssortedSorter
class AssortedSorter {
//Attributes of class
private:
   int *intArray;
   int elemCnt;
//Member functions
public:
   void bubbleSort(int[], int, long int&, long int&);
   void selectionSort(int[], int, long int&, long int&);
   void quickSort(int[], int, long int&, long int&);
};
//Implementation of class
/*
Function to sort an array using bubble sort
Param In: arr, an integer array
            sz, number of elements in the array
           loopCnt, reference variable to count loop
           swapCnt, reference variable to count swaps
   Param Out: None
*/
void AssortedSorter::bubbleSort(int arr[], int sz, long int& loopCnt, long int& swapCnt) {
   //Initialize refernce values
   loopCnt = 0;
   swapCnt = 0;
   //Copy array and size
   intArray = arr;
   elemCnt = sz;
        //Loop through the array
       for (int i = 0; i < elemCnt - 1; i++)
       {
           //increment loop count by one
           loopCnt++;
           if (intArray[i] > intArray[i + 1])
           {
               //Increment swap count by 1
               swapCnt++;
               int temp = intArray[i];
               intArray[i] = intArray[i + 1];
               intArray[i + 1] = temp;
           }
       }
}
/*
Function to sort an array using selection sort
Param In: arr, an integer array
           sz, number of elements in the array
           loopCnt, reference variable to count loop
           swapCnt, reference variable to count swaps
   Param Out: None
*/
void AssortedSorter::selectionSort(int arr[], int sz, long int& loopCnt, long int& swapCnt) {
   //Initialize refernce values
   loopCnt = 0;
   swapCnt = 0;
   //Copy array and size
   intArray = arr;
   elemCnt = sz;
   //smallest value index
   int minIndex;
   //Loop for sorting
   for (int i = 0; i < elemCnt - 1; i++) {
       minIndex = i;

       for (int index = i + 1; index < elemCnt; index++) {
           // count comparison
           loopCnt++;
           if (intArray[index] < intArray[minIndex]) {
               minIndex = index;
           }
       }
       swapCnt++;
       int temp = intArray[minIndex];
       intArray[minIndex] = intArray[i];
       intArray[i] = temp;
   }
}
/*
Function to sort an array using quick sort
Param In: arr, an integer array
           sz, number of elements in the array
           loopCnt, reference variable to count loop
           swapCnt, reference variable to count swaps
   Param Out: None
*/
void AssortedSorter::quickSort(int arr[], int sz, long int& loopCnt, long int& swapCnt) {
   //Initialize refernce values
   loopCnt = 0;
   swapCnt = 0;
   //Copy array and size
   intArray = arr;
   int h = sz, l = 0;
   elemCnt = elemCnt - 0 + 1;
   //Temporary array act as stack
   int *stackArray;
   stackArray = new int[elemCnt];
   // initialize top of stack
   int top = -1;
   // push initial values of l and h to stack
   stackArray[++top] = 0;
   stackArray[++top] = elemCnt;

   // Keep popping from stack while is not empty
   while (top >= 0) {
       loopCnt++;
       // Pop h and l
       h = stackArray[top--];
       l = stackArray[top--];

       // Set pivot element at its correct position
       // in sorted array
       int x = intArray[h];
       int i = (l - 1);

       for (int j = l; j <= h - 1; j++) {
           if (intArray[j] <= x) {
               i++;
               int t = intArray[i];
               intArray[i]= intArray[j];
               intArray[j] = t;
               swapCnt++;
           }
       }
       int t = intArray[i+1];
       intArray[i+1] = intArray[h];
       intArray[h] = t;
       swapCnt++;
       int p = (i + 1);

       // If there are elements on left side of pivot,
       // then push left side to stack
       if (p - 1 > l) {
           stackArray[++top] = l;
           stackArray[++top] = p - 1;
       }
       // If there are elements on right side of pivot,
       // then push right side to stack
       if (p + 1 < h) {
           stackArray[++top] = p + 1;
           stackArray[++top] = h;
       }
   }
}
int main()
{
   //Delcare an array
   int array[MAX_SIZE];
   int UserNumOfNumbers;
   srand(time(0));
   //Prompt for array size
   cout << "Enter number betwee 10 to 20000 for the number of elements in the array: ";
   cin >> UserNumOfNumbers;
   while (UserNumOfNumbers<10 || UserNumOfNumbers>MAX_SIZE) {
       cout << "Enter number betwee 10 to 20000 for the number of elements in the array: ";
       cin >> UserNumOfNumbers;
   }
   //Generate array
   for (int i = 0; i < UserNumOfNumbers; i++)
       array[i] = rand() % 1000000 + 1;
   //Create object of the class
   AssortedSorter sorter;
   long int lCnt, sCnt;
   //Display result
   cout << "\nSORT ALGORITHM RUN EFFICIENCY ALGORITHM LOOP COUNT DATA MOVEMENT \n";
   sorter.bubbleSort(array, 1000, lCnt, sCnt);
   cout << "Bubble " << lCnt << " " << sCnt << endl;
   sorter.selectionSort(array, 1000, lCnt, sCnt);
   cout << "Selection " << lCnt << " " << sCnt << endl;
   sorter.quickSort(array, 1000, lCnt, sCnt);
   cout << "Quick " << lCnt << " " << sCnt << endl;
}

-----------------------------------------------------------------------------------

Output

Enter number betwee 10 to 20000 for the number of elements in the array: 1000

SORT ALGORITHM RUN EFFICIENCY ALGORITHM LOOP COUNT DATA MOVEMENT
Bubble 999 992
Selection 499500 999
Quick 504 1008

--------------------------------------------

Note:-

Please provide shell sort details.Then only i can implement that part as per your requirement
