A high performance engine uses a turbine to drive a compressor that raises the pressure of...

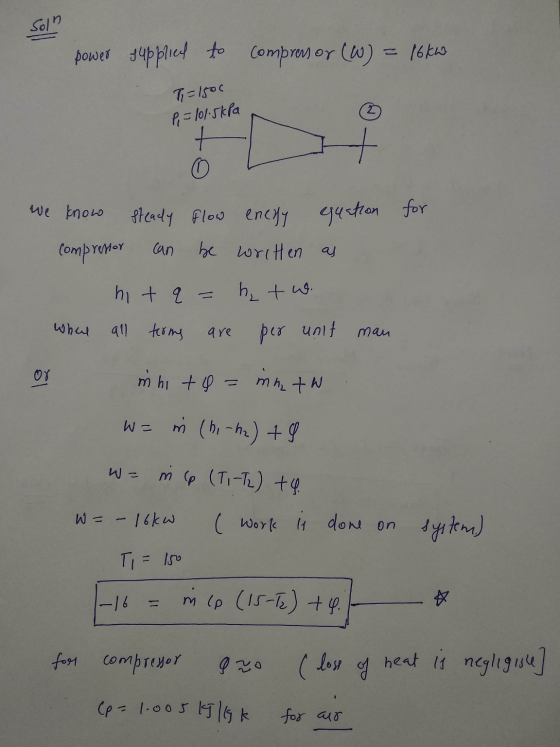

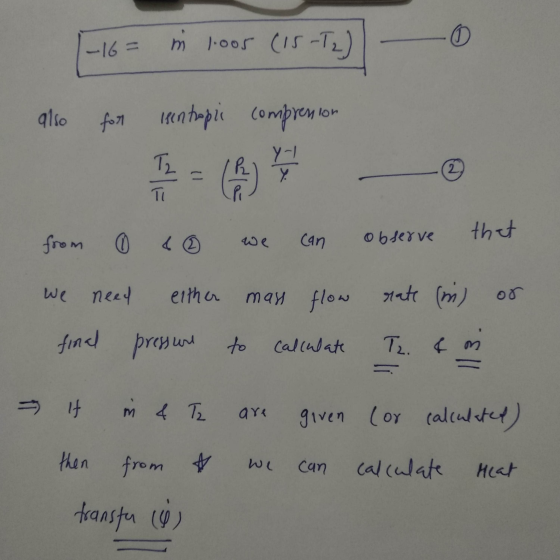

A high performance engine uses a turbine to drive a compressor that raises the pressure of air entering an engine. The turbine is supplying 16kW of power to compress incoming air from the surroundings at 15 C and 101.5kPa. Determine the change in enthalpy, temperature, pressure. Perhaps you can explain what Q out would be too, and how to find Mdot. Thanks!
Homework Answers
