A 3300/230V, 50Hz, i-phase transformer has a flux density of 1.2Tesla in the core. The effective...
A 3300/230V, 50Hz, i-phase transformer has a flux density of
1.2Tesla in the core. The effective cross-sectional area of the
transformer core is 150cm2. What will be the primary and secondary
turns used (make it a whole number)
Please show step by step solution
Thank you in advance

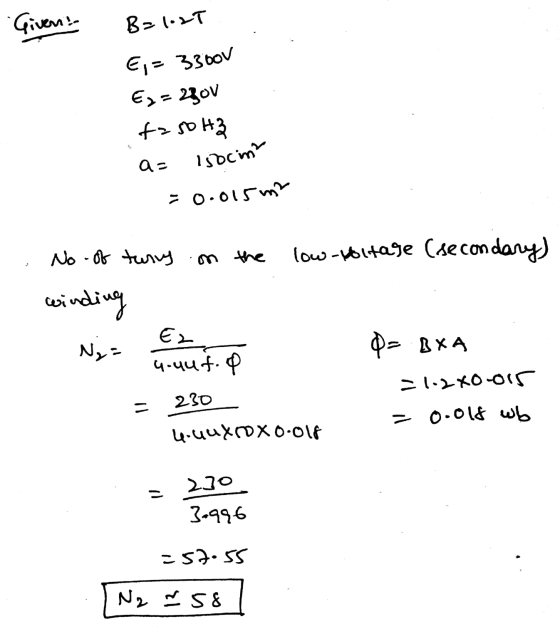

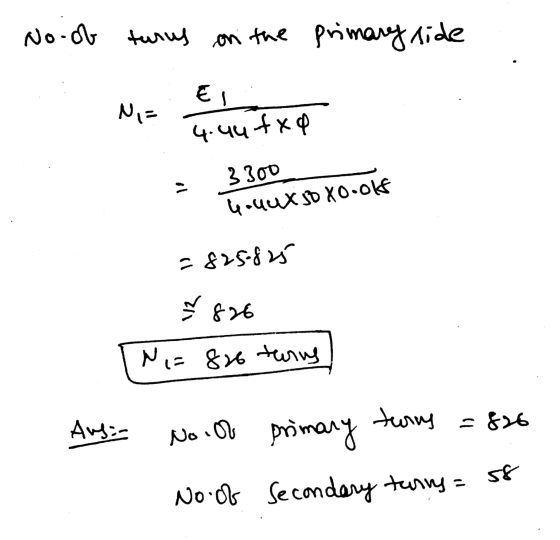

Homework Answers
Add Answer to:
A 3300/230V, 50Hz, i-phase transformer has a flux density of
1.2Tesla in the core. The effective...
A single phase transformer core, for use in a 50Hz electrical network, has the following magnetic...
A single phase transformer core, for use in a 50Hz electrical network, has the following magnetic characteristic Flux Density B Magnetic Field Strength H Total Core Loss 0.8 1.28 1.68 2.09297RMS Ampere-Turns/cm 1.23 1.85 2.2 2.73 Watts/k 1.0 1.1 1.2 Tesla The core has a cross-sectional area of 175cm2, the mean magnetic path length is 160cm and the density of the core material is 7.5gm/cm3. (a) If a no-load voltage ratio of 6600/231 is required, choose a suitable number of...
Problem Solving A 3200/240-V, 60-Hz, 1-phase transformer is built on a core having an effective cross-sectional...
Problem Solving A 3200/240-V, 60-Hz, 1-phase transformer is built on a core having an effective cross-sectional area of 125 cm^2 and has 80 turns in the low-voltage winding. Calculate (a) the value of the maximum flux density in the core and (b) the number of turns in the high-voltage winding.
The core of a three-phase, 50Hz, 11 000/550 V mesh/star, 300 kVA transformer has a gross...
The core of a three-phase, 50Hz, 11 000/550 V mesh/star, 300 kVA transformer has a gross cross sectional are of 13000mm2. If the core density should not exceed 1,3 testa and the stacking factor is 0,9 . calculate the emf per turn. Show all work, use drawing to show
Q3. A forward converter drives a transformer at a frequency of 100 kHz. The transformer core has...
Q3. A forward converter drives a transformer at a frequency of 100 kHz. The transformer core has an effective area of 125 mm2. The converter runs at a maximum duty factor of 0.42 and is supplied from a voltage of 450 V. If the transformer carries 75 primary turns, calculate the core flux density excursion. (202 mT)
15 marks] B. A toroidal core with a mean diameter of 200 mm and a cross-sectional area of 800 mm has an air gap of length 1.1 mm cut in it Fringing and leakage of flux around the air gap may be negle...
15 marks] B. A toroidal core with a mean diameter of 200 mm and a cross-sectional area of 800 mm has an air gap of length 1.1 mm cut in it Fringing and leakage of flux around the air gap may be neglected (i) Determine the current required in a coil of 1100 turns to produce a flux density of 1 T The relative permeability , of the core material (iron) may be assumed to be 3000 for this level...
Transformer 10:1 his i 0 12 V Figure 4: Transformer with dc source. Shown in Figure...
Transformer 10:1 his i 0 12 V Figure 4: Transformer with dc source. Shown in Figure 4 is a very bad way to connect a transformer, which involves a 12 V battery. You may assume that the battery is ideal (i.e., zero internal resistance). The transformer has 10 turns on the primary winding, a saturation flux density of 1.2 T, a core cross-sectional area (Ac) of 10-4 m², and a relative permeability of 100 (i.e., He=100). You may assume that...
1. If 480 volts is applied to the primary winding of a transformer which has 300...
1. If 480 volts is applied to the primary winding of a transformer which has 300 turns in the primary winding and 15 turns in the secondary winding, the secondary voltage will be A. 0.0417 volts. C. 56.8 volts B. 24 volts. D. 9600 volts. 2. A distribution transformer with a grain-orientented steel core is highly efficent because its A. exciting current is sufficiently high. B. flux direction is parallel to the stell-rolling direction C. permeability is increased due to...
Al. A 1 kVA single-phase step-down transformer is connected to a 220 V, 50 Hz A.C....
Al. A 1 kVA single-phase step-down transformer is connected to a 220 V, 50 Hz A.C. source and delivers power to a load. The winding resistance and reactance at secondary side are 0.02 2 and 0.1 12 respectively. The maximum value of core flux is 0.248 mWb and the secondary winding contains 1000 turns. Evaluate a. b. the voltage induced on the secondary side; the turn ratio of primary side to secondary side; the rated current on both sides; and...
[Magnetic circuits – 20 points] A two-legged magnetic core with an airgap is shown in the...
[Magnetic circuits – 20 points] A two-legged magnetic core with an airgap is shown in the below figure. The cross-sectional area of the core is A. = 20 cm?, the mean length of the core is l. =80 cm, and the length of the airgap is 0.06 cm. The number of turns on the coil is 200. The relative permeability of the core can be assumed to be constant and equal to 2000. The fringing effect causes a 6% increase...
3. [Magnetic circuits – 20 points] A two-legged magnetic core with an airgap is shown in...
3. [Magnetic circuits – 20 points] A two-legged magnetic core with an airgap is shown in the below figure. The cross-sectional area of the core is A = 20 cm², the mean length of the core is l. =80 cm, and the length of the airgap is 0.06 cm. The number of turns on the coil is 200. The relative permeability of the core can be assumed to be constant and equal to 2000. The fringing effect causes a 6%...
A single phase transformer core, for use in a 50Hz electrical network, has the following magnetic characteristic Flux Density B Magnetic Field Strength H Total Core Loss 0.8 1.28 1.68 2.09297RMS Ampere-Turns/cm 1.23 1.85 2.2 2.73 Watts/k 1.0 1.1 1.2 Tesla The core has a cross-sectional area of 175cm2, the mean magnetic path length is 160cm and the density of the core material is 7.5gm/cm3. (a) If a no-load voltage ratio of 6600/231 is required, choose a suitable number of...
Problem Solving A 3200/240-V, 60-Hz, 1-phase transformer is built on a core having an effective cross-sectional area of 125 cm^2 and has 80 turns in the low-voltage winding. Calculate (a) the value of the maximum flux density in the core and (b) the number of turns in the high-voltage winding.
15 marks] B. A toroidal core with a mean diameter of 200 mm and a cross-sectional area of 800 mm has an air gap of length 1.1 mm cut in it Fringing and leakage of flux around the air gap may be neglected (i) Determine the current required in a coil of 1100 turns to produce a flux density of 1 T The relative permeability , of the core material (iron) may be assumed to be 3000 for this level...
Transformer 10:1 his i 0 12 V Figure 4: Transformer with dc source. Shown in Figure 4 is a very bad way to connect a transformer, which involves a 12 V battery. You may assume that the battery is ideal (i.e., zero internal resistance). The transformer has 10 turns on the primary winding, a saturation flux density of 1.2 T, a core cross-sectional area (Ac) of 10-4 m², and a relative permeability of 100 (i.e., He=100). You may assume that...
Al. A 1 kVA single-phase step-down transformer is connected to a 220 V, 50 Hz A.C. source and delivers power to a load. The winding resistance and reactance at secondary side are 0.02 2 and 0.1 12 respectively. The maximum value of core flux is 0.248 mWb and the secondary winding contains 1000 turns. Evaluate a. b. the voltage induced on the secondary side; the turn ratio of primary side to secondary side; the rated current on both sides; and...
[Magnetic circuits – 20 points] A two-legged magnetic core with an airgap is shown in the below figure. The cross-sectional area of the core is A. = 20 cm?, the mean length of the core is l. =80 cm, and the length of the airgap is 0.06 cm. The number of turns on the coil is 200. The relative permeability of the core can be assumed to be constant and equal to 2000. The fringing effect causes a 6% increase...
3. [Magnetic circuits – 20 points] A two-legged magnetic core with an airgap is shown in the below figure. The cross-sectional area of the core is A = 20 cm², the mean length of the core is l. =80 cm, and the length of the airgap is 0.06 cm. The number of turns on the coil is 200. The relative permeability of the core can be assumed to be constant and equal to 2000. The fringing effect causes a 6%...
