Question 6: Explain encoding and decoding with an example. Explain multiplexing and demultiplexing with an example....

Question 6: Explain encoding and decoding with an example.

  1. Explain multiplexing and demultiplexing with an example.
  2. Describe four types of storage devices. Explain the function of the counter.
  3. Briefly explain each step in the programming process.
  4. Explain the difference between microcontroller and microprocessor.
engineering   Electrical-Engineering
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

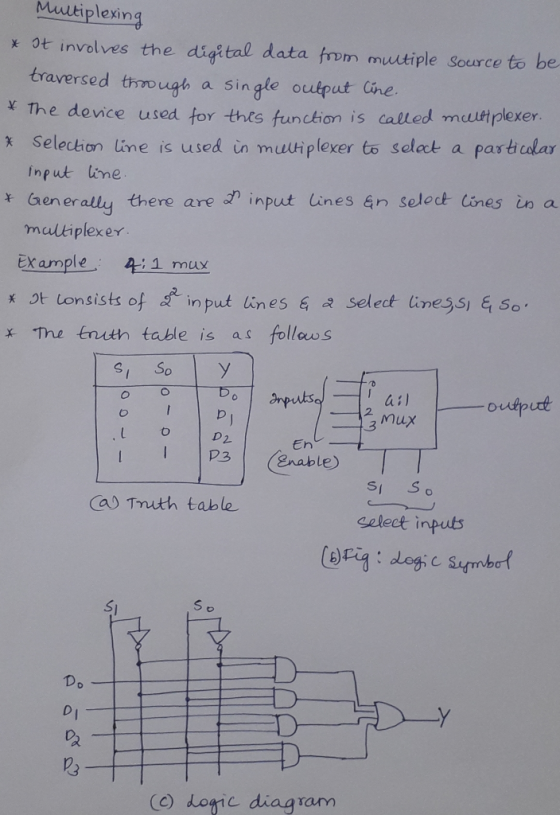

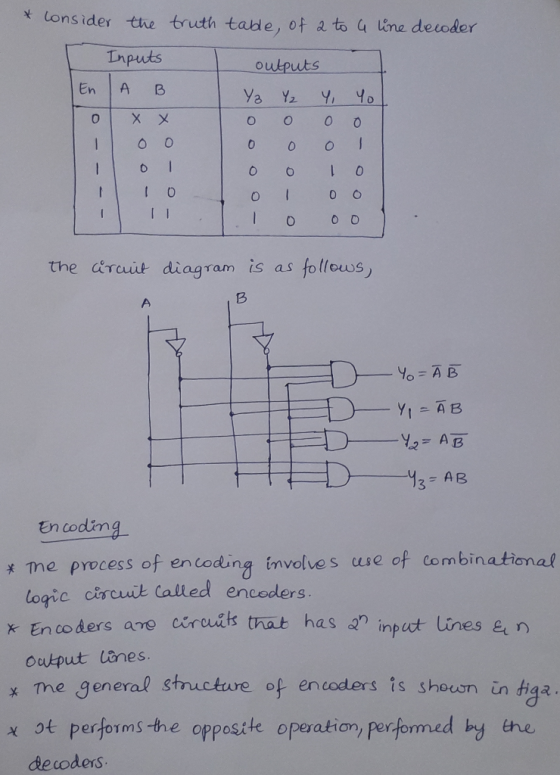

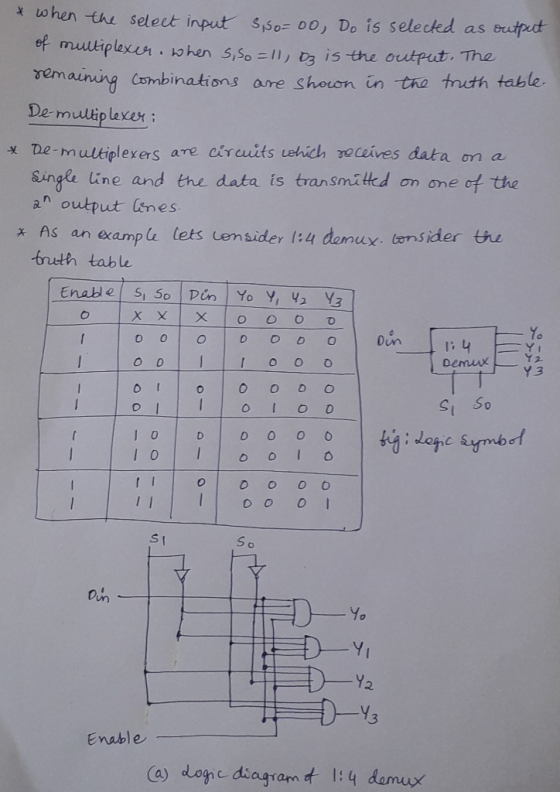

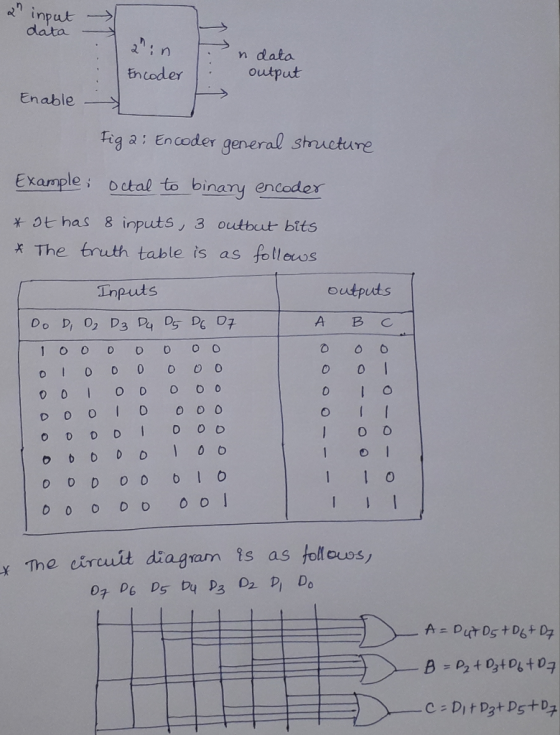

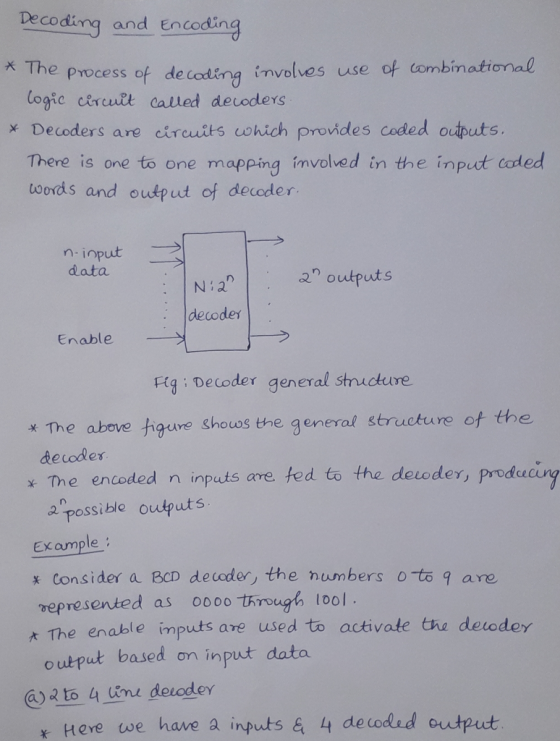

In the above images we have the detailed explanation of decoding,encoding,multiplexing and demultiplexing with examples
