A parallel LC tuned circuit has a coil of 4μH and a capacitance of 68pF. The...
A parallel LC tuned circuit has a coil of 4μH and a capacitance of 68pF. The coil resistance is 9Ω. What is the Q factor and the fr (resonant frequency) of the circuit?
Homework Answers

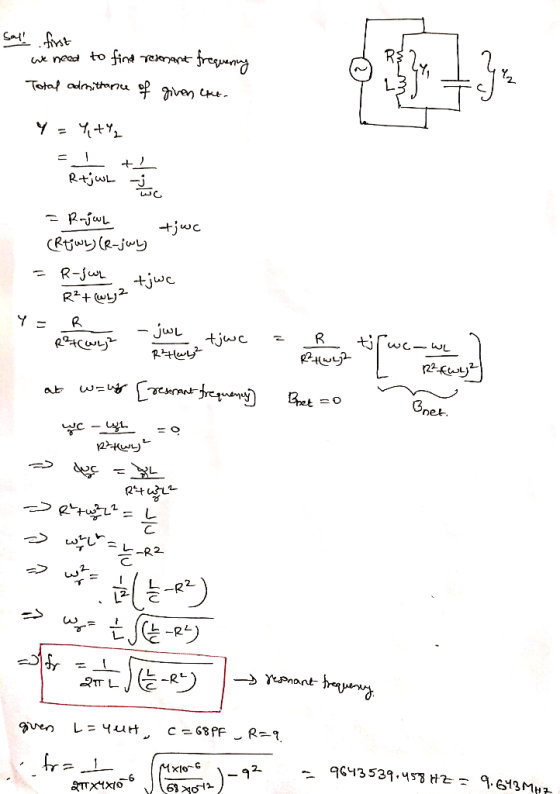

for this problem, first I found resonant
frequency formula by derivation and substituted the given values

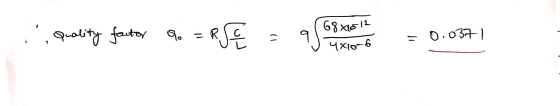

and found valye of resonant frequency.and then quality factory.
Thank you.
Add Answer to:
A parallel LC tuned circuit has a coil of 4μH and a capacitance
of 68pF. The...
A flat coil of wire is used with an LC-tuned circuit as a receiving antenna. The...
A flat coil of wire is used with an LC-tuned circuit as a receiving antenna. The coil has a radius of 0.20 m and consists of 400 turns. The transmitted radio wave has a frequency of 1.1 MHz. The magnetic field of the wave is parallel to the normal to the coil and has a maximum value of 2.0 x 1013 T. Using Faraday's law of electromagnetic induction and the fact that the magnetic field changes from zero to its...
An LC circuit has .09 H of inductance and 4 uF of capacitance. a. What is...
An LC circuit has .09 H of inductance and 4 uF of capacitance. a. What is the frequency of oscillation? b. A resistance of 70 Ohms is added to the circuit. What is the new frequency of oscillation? c. Adding resistance makes the frequency decrease more and more. What resistance would be needed so that there was no oscillation at all (critical damping)?
19. What is the resonant frequency of a series-tuned LC circuit that contains a 2 mH...
19. What is the resonant frequency of a series-tuned LC circuit that contains a 2 mH inductor and a 30 μF capacitor? (Round your answer to the nearest Hz.) A. 278 Hz B. 550 Hz C. 420 Hz D. 650 Hz 21. How is the proper phase shift produced in a phase-shift oscillator? A. Through a transistor B. Through RC combinations C. Through an inductor D. Through RL combinations 22. An RC phase-shift oscillator has a load resistance...
need help with both please Consider an AC series circuit containing a coil, capacitor and resistance....
need help with both please
Consider an AC series circuit containing a coil, capacitor and resistance. Tripling the frequency will change the inductive reactance by what factor? 03 O 1.73 O 1/3 O 1 D. Question 2 1 pts An RLC circuit has resistance Ro, inductance Lo, and capacitance Co. If the resistance value is now doubled, which values of inductance and capacitance will result in the same resonant frequency as before. 9 Lo/2, C0/2 2Lo.Co/2 2Lo.Co 2L0 200
TASK (i): Find time-domain equations for a parallel LC resonant circuit An LC resonant circuit is...
TASK (i): Find time-domain equations for a parallel LC resonant circuit An LC resonant circuit is sometimes referred to as an LC-tank or tuned circuit. It is made up of two components: an inductor (L) and a capacitor (C), hence the name. CAPACITOR 4 e V - + V - Figure 1: Capacitor symbol The charge on a capacitor is proportional to the voltage across it, the constant of proportionality being the capacitance C, measured in Farads (F). Since current...
A radio can be tuned into a particular station frequency by adjusting the capacitance in an...
A radio can be tuned into a particular station frequency by adjusting the capacitance in an L-C circuit. Suppose that the minimum capacitance of a variable capacitor in a radio is 4.14 pF . What is the inductance L of a coil connected to this capacitor if the oscillation frequency of the L-C circuit is 1.60 MHz , corresponding to one end of the AM radio broadcast band, when the capacitor is set to its minimum capacitance? The frequency at...
A radio can be tuned into a particular station frequency by adjusting the capacitance in an...
A radio can be tuned into a particular station frequency by adjusting the capacitance in an L-C circuit. Suppose that the minimum capacitance of a variable capacitor in a radio is 4.17 pF a.)What is the inductance L of a coil connected to this capacitor if the oscillation frequency of the L-C circuit is 1.70 MHz , corresponding to one end of the AM radio broadcast band, when the capacitor is set to its minimum capacitance? b.)The frequency at the...
An LC circuit in an AM tuner (in a car stereo) uses a coil with an...
An LC circuit in an AM tuner (in a car stereo) uses a coil with an inductance of 8.1 mH and a variable capacitor. If the natural frequency of the circuit is to be adjustable over the range 540 to 1,600 kHz (the AM broadcast band), what range of capacitance (in pF) is required? smaller value .107 X PF larger value 1.22 X PF
An LC circuit has a resonance frequency of If the inductor in the circuit has a...
An LC circuit has a resonance frequency of If the inductor in the circuit has a value of what is the capacitance of the circuit? 3.0kHz.
A radio can be tuned into a particular station frequency by adjusting the capacitance in an...
A radio can be tuned into a particular station frequency by adjusting the capacitance in an L-C circuit. Suppose that the minimum capacitance of a variable capacitor in a radio is 4.12 pF . What is the inductance L of a coil connected to this capacitor if the oscillation frequency of the L-C circuit is 1.50 MHz , corresponding to one end of the AM radio broadcast band, when the capacitor is set to its minimum capacitance? Express your answer...
A flat coil of wire is used with an LC-tuned circuit as a receiving antenna. The coil has a radius of 0.20 m and consists of 400 turns. The transmitted radio wave has a frequency of 1.1 MHz. The magnetic field of the wave is parallel to the normal to the coil and has a maximum value of 2.0 x 1013 T. Using Faraday's law of electromagnetic induction and the fact that the magnetic field changes from zero to its...
need help with both please
Consider an AC series circuit containing a coil, capacitor and resistance. Tripling the frequency will change the inductive reactance by what factor? 03 O 1.73 O 1/3 O 1 D. Question 2 1 pts An RLC circuit has resistance Ro, inductance Lo, and capacitance Co. If the resistance value is now doubled, which values of inductance and capacitance will result in the same resonant frequency as before. 9 Lo/2, C0/2 2Lo.Co/2 2Lo.Co 2L0 200
TASK (i): Find time-domain equations for a parallel LC resonant circuit An LC resonant circuit is sometimes referred to as an LC-tank or tuned circuit. It is made up of two components: an inductor (L) and a capacitor (C), hence the name. CAPACITOR 4 e V - + V - Figure 1: Capacitor symbol The charge on a capacitor is proportional to the voltage across it, the constant of proportionality being the capacitance C, measured in Farads (F). Since current...
An LC circuit in an AM tuner (in a car stereo) uses a coil with an inductance of 8.1 mH and a variable capacitor. If the natural frequency of the circuit is to be adjustable over the range 540 to 1,600 kHz (the AM broadcast band), what range of capacitance (in pF) is required? smaller value .107 X PF larger value 1.22 X PF
