An LC circuit has .09 H of inductance and 4 uF of capacitance. a. What is...
An LC circuit has .09 H of inductance and 4 uF of capacitance.
a. What is the frequency of oscillation?
b. A resistance of 70 Ohms is added to the circuit. What is the new frequency of oscillation?
c. Adding resistance makes the frequency decrease more and more. What resistance would be needed so that there was no oscillation at all (critical damping)?

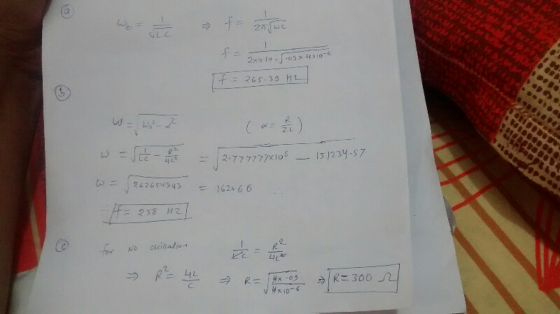

Homework Answers
Add Answer to:
An LC circuit has .09 H of inductance and 4 uF of
capacitance.
a. What is...
An LCR circuit has an inductance of 35 mH, a capacitance of 4.5 uF, and a...
An LCR circuit has an inductance of 35 mH, a capacitance of 4.5 uF, and a resistance of 550 ohms? what is the impedance of the circuit at its naturally reasonant frequency?
For an LRC series circuit containing a resistance of 15 k2, a capacitance of 6 uF,...
For an LRC series circuit containing a resistance of 15 k2, a capacitance of 6 uF, and an inductance of 25 H, what frequency is needed to minimize the impedance? o 1.7x10-2 kHz o 9.1x10-3 kHz o 1.3x10-2 kHz 02.1x10-2 kHz
An RLC circuit has a capacitance of 0.29 uF. A. What inductance will produce a resonance...
An RLC circuit has a capacitance of 0.29 uF. A. What inductance will produce a resonance frequency of 95 MHz? B. It is desired that the impedance at resonance be one-fifth the impedance at 11 kHz. What value of R should be used to obtain this result? I had some problems with the algebra. Thank you.
An L-R-C circuit has an inductance of 0.460 H. a capacitance of 2.90x10-5F, and a resistance...
An L-R-C circuit has an inductance of 0.460 H. a capacitance of 2.90x10-5F, and a resistance of Ras shown in (Figure 1). Part A What is the angular frequency of the circuit when R=0? Express your answer in radians per second. View Available Hint(s) Η ΑΣΦ t o ? 301 radis Submit Previous Answers X Incorrect; Try Again; 29 attempts remaining Part B Figure 1 of 1 What value must have to give a decrease in angular frequency of 11.0...
The LC circuit of a radar transmitter oscillates at 38.9 GHz. (a) What inductance is required...
The LC circuit of a radar transmitter oscillates at 38.9 GHz. (a) What inductance is required for the circuit to resonate at this frequency if its capacitance is 3.80 pF? pH (b) What is the inductive reactance of the circuit at this frequency? ?
8.1 The resistance, inductance, and capacitance in a parallel RLC circuit are 1 kN, 12.5 H,...
8.1 The resistance, inductance, and capacitance in a parallel RLC circuit are 1 kN, 12.5 H, and 2 uF, respectively. a. Calculate the roots of the characteristic equation that describe the voltage response of the circuit. b. Will the response be over-, under-, or critically damped? c. What value of R will yield a damped frequency of 120 rad/s? d. What are the roots of the characteristic equation for the value of R found in (c)? e. What value of...
Constan An L-R-C circuit has an inductance of 0.470 H, a capacitance of 2.10 10-5 F,...
Constan An L-R-C circuit has an inductance of 0.470 H, a capacitance of 2.10 10-5 F, and a resistance of R as shown in (Figure 1). What is the angular frequency of the circuit when R=0? Express your answer in radians per second. View Available Hint(s) 318 rad/s Submit ✓ Correct Correct answer is shown. Your answer 318.3 rad s was either rounded differently or used a different number of significant figures than required for this part. Figure (< 1...
= 4.25 uF, and the inductance Consider a series RLC circuit where the resistance R =...
= 4.25 uF, and the inductance Consider a series RLC circuit where the resistance R = 753 12, the capacitance C L 15.0 mH. Determine the resonance frequency 0 of the circuit. 00 rad/s What is the maximum current Imax when the circuit is at resonance, if the amplitude of the AC driving voltage is 60.0 V? Imax = A
A parallel LC tuned circuit has a coil of 4μH and a capacitance of 68pF. The...
A parallel LC tuned circuit has a coil of 4μH and a capacitance of 68pF. The coil resistance is 9Ω. What is the Q factor and the fr (resonant frequency) of the circuit?
4) An ideal LC circuit comprises an ideal inductor having inductance L, a capacitor having capacitance...
4) An ideal LC circuit comprises an ideal inductor having inductance L, a capacitor having capacitance C, and a switch. The circuit does not include a battery nor does it include any resistance The switch is initially open and the initial charge on the capacitor is Qo. At time t o the switch is closed. Determine expressions (L, C, Qo) for the i) charge on the capacitor, and ii) the current flowing through the circuit at the following times: a)...
For an LRC series circuit containing a resistance of 15 k2, a capacitance of 6 uF, and an inductance of 25 H, what frequency is needed to minimize the impedance? o 1.7x10-2 kHz o 9.1x10-3 kHz o 1.3x10-2 kHz 02.1x10-2 kHz
An L-R-C circuit has an inductance of 0.460 H. a capacitance of 2.90x10-5F, and a resistance of Ras shown in (Figure 1). Part A What is the angular frequency of the circuit when R=0? Express your answer in radians per second. View Available Hint(s) Η ΑΣΦ t o ? 301 radis Submit Previous Answers X Incorrect; Try Again; 29 attempts remaining Part B Figure 1 of 1 What value must have to give a decrease in angular frequency of 11.0...
8.1 The resistance, inductance, and capacitance in a parallel RLC circuit are 1 kN, 12.5 H, and 2 uF, respectively. a. Calculate the roots of the characteristic equation that describe the voltage response of the circuit. b. Will the response be over-, under-, or critically damped? c. What value of R will yield a damped frequency of 120 rad/s? d. What are the roots of the characteristic equation for the value of R found in (c)? e. What value of...
Constan An L-R-C circuit has an inductance of 0.470 H, a capacitance of 2.10 10-5 F, and a resistance of R as shown in (Figure 1). What is the angular frequency of the circuit when R=0? Express your answer in radians per second. View Available Hint(s) 318 rad/s Submit ✓ Correct Correct answer is shown. Your answer 318.3 rad s was either rounded differently or used a different number of significant figures than required for this part. Figure (< 1...
= 4.25 uF, and the inductance Consider a series RLC circuit where the resistance R = 753 12, the capacitance C L 15.0 mH. Determine the resonance frequency 0 of the circuit. 00 rad/s What is the maximum current Imax when the circuit is at resonance, if the amplitude of the AC driving voltage is 60.0 V? Imax = A
4) An ideal LC circuit comprises an ideal inductor having inductance L, a capacitor having capacitance C, and a switch. The circuit does not include a battery nor does it include any resistance The switch is initially open and the initial charge on the capacitor is Qo. At time t o the switch is closed. Determine expressions (L, C, Qo) for the i) charge on the capacitor, and ii) the current flowing through the circuit at the following times: a)...
