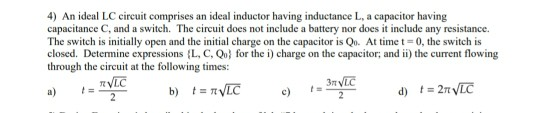

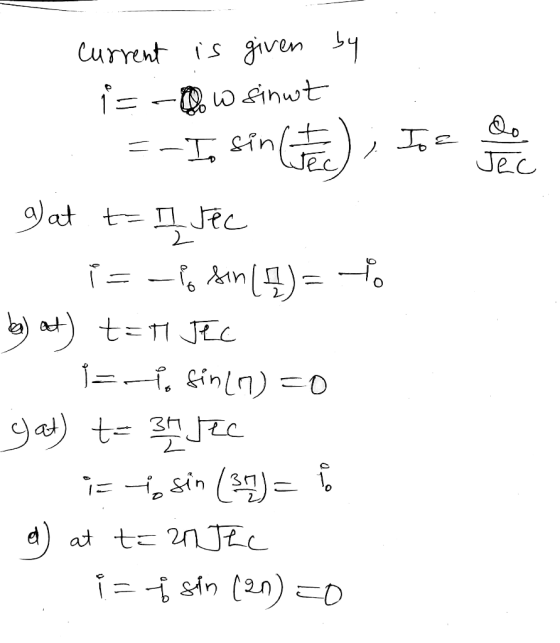

4) An ideal LC circuit comprises an ideal inductor having inductance L, a capacitor having capacitance...
3) An ideal LC circuit comprises an ideal inductor having inductance L, a capacitor having capacitance...

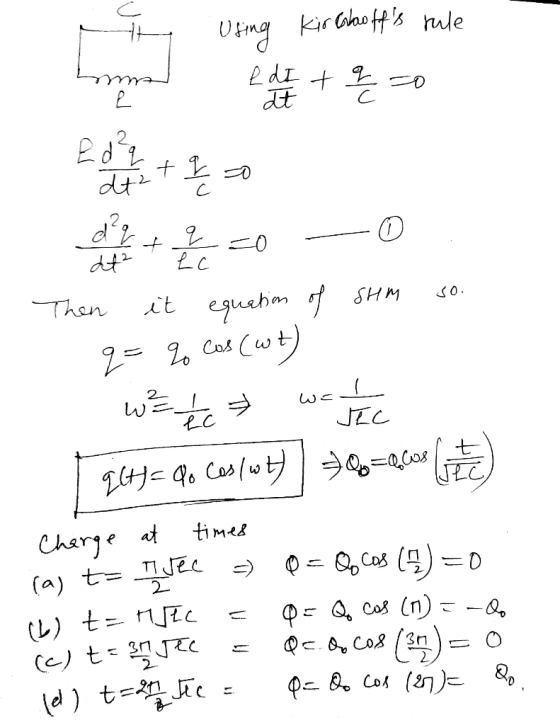

3) An ideal LC circuit comprises an ideal inductor having inductance L, a capacitor having capacitance C, and a switch. The circuit does not include a battery nor does it include any resistance. The switch is initially open and the initial charge on the capacitor is Qo. The switch is closed at time 1-0. Show that the charge, 4, on the capacitor is given by the time dependent function 9(t) = Qocos(at) where o is given by W= Hint: Apply...
2. An ideal inductor with inductance L and an ideal capacitor with capacitance C are connected...
2. An ideal inductor with inductance L and an ideal capacitor with capacitance C are connected in series with a battery with voltage and a switch. Att 0 the switch is closed. In this scenario, the charge on the capacitor will oscillate sinusoidally but will have a DC offset. It can be expressed in general using three parameters (Ao, Ai, and A2) with the following. q(t) AA cos(ut)A2 sin(ut) where wis the natural frequency of the circuit. Note also that...
1. A circuit is composed of a capacitor connected in series to an inductor (L=2E-3 H)...
1. A circuit is composed of a capacitor connected in series to an inductor (L=2E-3 H) and resistor (R=100 Ohms). The capacitor is initially uncharged. What is the instantaneous current flowing through the circuit at time t = 0.34 s. 2. An LR circuit contains an ideal 50-V battery, a 42-H inductor having no resistance, a 21-Ω resistor, and a switch S, all in series. Initially, the switch is open and has been open for a very long time. At...
In an oscillating LC circuit with capacitance C, the maximum potential difference across the capacitor during...
In an oscillating LC circuit with capacitance C, the maximum potential difference across the capacitor during the oscillations is VC and the maximum current through the inductor is IL. (Use any variable or symbol stated above as necessary.) (a) What is the inductance L? L = ____ (b) What is the frequency of the oscillations? f = ____ (c) How much time is required for the charge on the capacitor to rise from zero to its maximum value? t =...
An L-C circuit consists of an inductor with an inductance of 65.0 mH and a capacitor...
An L-C circuit consists of an inductor with an inductance of 65.0 mH and a capacitor with a capacitance of 250 μF . The initial charge on the capacitor is 5.50 μC , and the initial current in the inductor is zero. a) What is the maximum voltage across the capacitor? b) What is the maximum current in the inductor? c) What is the maximum energy stored in the inductor? d) When the current in the inductor has half its...
In an LC circuit, at time zero, there is a non-zero charge in the capacitor and...
In an LC circuit, at time zero, there is a non-zero charge in the capacitor and a non-zero current. As the circuit oscillates, the energy in the circuit can be found with: The inductance of the inductor Starting current att=0 The starting voltage at t-0 The capacitance of the capacitor
An LC circuit like that in the figure below consists of a 3.30-H inductor and an...
An LC circuit like that in the figure below consists of a 3.30-H inductor and an 836-pF capacitor that initially carries a 111-C charge. The switch is open for <0 and is then thrown closed at t = 0. Compute the following quantities at t = 5.00 ms. L8 (a) the energy stored in the capacitor (b) the total energy in the circuit (c) the energy stored in the inductor
An LC circuit like that in the figure below consists of a 3.10-H inductor and an...
An LC circuit like that in the figure below consists of a 3.10-H inductor and an 890-pF capacitor that initially carries a 105-µC charge. The switch is open for t < 0 and is then thrown closed at t = 0. Compute the following quantities at t = 2.00 ms. (a) the energy stored in the capacitor (b) the energy stored in the inductor (c) the total energy in the circuit
The LC circuit shown above has a capacitance C 0.05 pF and inductance L - 420...
The LC circuit shown above has a capacitance C 0.05 pF and inductance L - 420 mH. Suppose that at time t = 0, the stored electric and magnetic energies are equal to one another and the instantaneous current is 75 mA. What is the maximum charge that is stored on the capacitor in this situation? Qmax = C Submit You currently have O submissions for this question. Only 10 submission are allowed. You can make 10 more submissions for...
Incorrect Question 7 0/1 pts An inductor inductance L) and a capacitor (capacitance C) are connected...
Incorrect Question 7 0/1 pts An inductor inductance L) and a capacitor (capacitance C) are connected as shown. +9 || -9 Travel llll 2012 Inc The value of the capacitor charge q oscillates between positive and negative values. At any instant, the potential difference between the capacitor plates is proportional to dq/dt. proportional to q. both A and B Incorrect Question 3 0/1 pts A current i flows through an inductor Lin the direction from point b toward point a....
3) An ideal LC circuit comprises an ideal inductor having inductance L, a capacitor having capacitance C, and a switch. The circuit does not include a battery nor does it include any resistance. The switch is initially open and the initial charge on the capacitor is Qo. The switch is closed at time 1-0. Show that the charge, 4, on the capacitor is given by the time dependent function 9(t) = Qocos(at) where o is given by W= Hint: Apply...
2. An ideal inductor with inductance L and an ideal capacitor with capacitance C are connected in series with a battery with voltage and a switch. Att 0 the switch is closed. In this scenario, the charge on the capacitor will oscillate sinusoidally but will have a DC offset. It can be expressed in general using three parameters (Ao, Ai, and A2) with the following. q(t) AA cos(ut)A2 sin(ut) where wis the natural frequency of the circuit. Note also that...
In an LC circuit, at time zero, there is a non-zero charge in the capacitor and a non-zero current. As the circuit oscillates, the energy in the circuit can be found with: The inductance of the inductor Starting current att=0 The starting voltage at t-0 The capacitance of the capacitor
An LC circuit like that in the figure below consists of a 3.30-H inductor and an 836-pF capacitor that initially carries a 111-C charge. The switch is open for <0 and is then thrown closed at t = 0. Compute the following quantities at t = 5.00 ms. L8 (a) the energy stored in the capacitor (b) the total energy in the circuit (c) the energy stored in the inductor
The LC circuit shown above has a capacitance C 0.05 pF and inductance L - 420 mH. Suppose that at time t = 0, the stored electric and magnetic energies are equal to one another and the instantaneous current is 75 mA. What is the maximum charge that is stored on the capacitor in this situation? Qmax = C Submit You currently have O submissions for this question. Only 10 submission are allowed. You can make 10 more submissions for...
Incorrect Question 7 0/1 pts An inductor inductance L) and a capacitor (capacitance C) are connected as shown. +9 || -9 Travel llll 2012 Inc The value of the capacitor charge q oscillates between positive and negative values. At any instant, the potential difference between the capacitor plates is proportional to dq/dt. proportional to q. both A and B Incorrect Question 3 0/1 pts A current i flows through an inductor Lin the direction from point b toward point a....
