In an oscillating LC circuit with capacitance C, the maximum potential difference across the capacitor during...

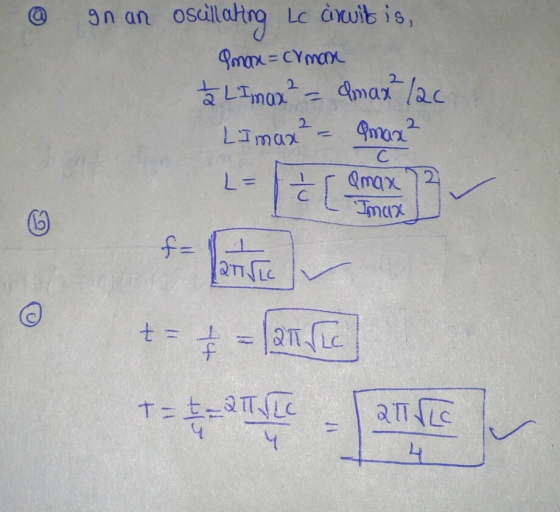

In an oscillating LC circuit with capacitance C, the maximum potential difference across the capacitor during the oscillations is VC and the maximum current through the inductor is IL. (Use any variable or symbol stated above as necessary.)
(a) What is the inductance L?
L = ____
(b) What is the frequency of the oscillations?
f = ____
(c) How much time is required for the charge on the capacitor to
rise from zero to its maximum value?
t = ____
Homework Answers
Add Answer to:
In an oscillating LC circuit with capacitance
C, the maximum potential difference across the capacitor
during...
In an oscillating LC circuit in which C = 4.4 PF, the maximum potential difference across...
In an oscillating LC circuit in which C = 4.4 PF, the maximum potential difference across the capacitor during the oscillations is 1.9 V and the maximum current through the inductor is 41.7 mA. What are (a) the inductance L and (b) the frequency of the oscillations? (c) How much time is required for the charge on the capacitor to rise from zero to its maximum value? (a) Number Units Units (b) Number (c) Number Units
Chapter 31, Problem 020 GO In an oscillating LC circuit in which C = 3.7 uF,...
Chapter 31, Problem 020 GO In an oscillating LC circuit in which C = 3.7 uF, the maximum potential difference across the capacitor during the oscillations is 1.1 V and the maximum current through the inductor is 54.0 mA. What are (a) the inductance L and (b) the frequency of the oscillations? (c) How much time on the capacitor to rise from zero to its maximum value? required for the charge (a) Number (b) Number (c) Number Units Units Units
The inductor in an LC oscillator has inductance of 1.8 mH.The maximum potential difference across the...
The inductor in an LC oscillator has inductance of 1.8 mH.The maximum potential difference across the capacitor is 7.2 V. When the potential difference across the capacitor is 2.4 V, the current through the inductor is 76 mA. What is the total energy stored in the oscillator, in ud?
What is the capacitance of an oscillating LC circuit in nanofarads if the maximum charge on...
What is the capacitance of an oscillating LC circuit in nanofarads if the maximum charge on the capacitor is 2.21 μC and the total energy is 139 μJ
An oscillating LC circuit has a current amplitude of 9.70 mA, a potential amplitude of 274...
An oscillating LC circuit has a current amplitude of 9.70 mA, a potential amplitude of 274 mV, and a capacitance of 233 nF. What are (a) the period of oscillation, (b) the maximum energy stored in the capacitor, (c)the maximum energy stored in the inductor, (d) the maximum rate at which the current changes, and (e) the maximum rate at which the inductor gains energy?
TASK (i): Find time-domain equations for a parallel LC resonant circuit An LC resonant circuit is...
TASK (i): Find time-domain equations for a parallel LC resonant circuit An LC resonant circuit is sometimes referred to as an LC-tank or tuned circuit. It is made up of two components: an inductor (L) and a capacitor (C), hence the name. CAPACITOR 4 e V - + V - Figure 1: Capacitor symbol The charge on a capacitor is proportional to the voltage across it, the constant of proportionality being the capacitance C, measured in Farads (F). Since current...
4) An ideal LC circuit comprises an ideal inductor having inductance L, a capacitor having capacitance...
4) An ideal LC circuit comprises an ideal inductor having inductance L, a capacitor having capacitance C, and a switch. The circuit does not include a battery nor does it include any resistance The switch is initially open and the initial charge on the capacitor is Qo. At time t o the switch is closed. Determine expressions (L, C, Qo) for the i) charge on the capacitor, and ii) the current flowing through the circuit at the following times: a)...
In an LC circuit, at time zero, there is a non-zero charge in the capacitor and...
In an LC circuit, at time zero, there is a non-zero charge in the capacitor and a non-zero current. As the circuit oscillates, the energy in the circuit can be found with: The inductance of the inductor Starting current att=0 The starting voltage at t-0 The capacitance of the capacitor
An L-C circuit consists of an inductor with an inductance of 65.0 mH and a capacitor...
An L-C circuit consists of an inductor with an inductance of 65.0 mH and a capacitor with a capacitance of 250 μF . The initial charge on the capacitor is 5.50 μC , and the initial current in the inductor is zero. a) What is the maximum voltage across the capacitor? b) What is the maximum current in the inductor? c) What is the maximum energy stored in the inductor? d) When the current in the inductor has half its...
In an oscillating LC circuit, L = 4.26 mH and C = 2.18 μF. At t...
In an oscillating LC circuit, L = 4.26 mH and C = 2.18 μF. At t = 0 the charge on the capacitor is zero and the current is 1.60 A. (a) What is the maximum charge that will appear on the capacitor? (b) At what earliest time t > 0 is the rate at which energy is stored in the capacitor greatest, and (c) what is that greatest rate?
In an oscillating LC circuit in which C = 4.4 PF, the maximum potential difference across the capacitor during the oscillations is 1.9 V and the maximum current through the inductor is 41.7 mA. What are (a) the inductance L and (b) the frequency of the oscillations? (c) How much time is required for the charge on the capacitor to rise from zero to its maximum value? (a) Number Units Units (b) Number (c) Number Units
Chapter 31, Problem 020 GO In an oscillating LC circuit in which C = 3.7 uF, the maximum potential difference across the capacitor during the oscillations is 1.1 V and the maximum current through the inductor is 54.0 mA. What are (a) the inductance L and (b) the frequency of the oscillations? (c) How much time on the capacitor to rise from zero to its maximum value? required for the charge (a) Number (b) Number (c) Number Units Units Units
The inductor in an LC oscillator has inductance of 1.8 mH.The maximum potential difference across the capacitor is 7.2 V. When the potential difference across the capacitor is 2.4 V, the current through the inductor is 76 mA. What is the total energy stored in the oscillator, in ud?
TASK (i): Find time-domain equations for a parallel LC resonant circuit An LC resonant circuit is sometimes referred to as an LC-tank or tuned circuit. It is made up of two components: an inductor (L) and a capacitor (C), hence the name. CAPACITOR 4 e V - + V - Figure 1: Capacitor symbol The charge on a capacitor is proportional to the voltage across it, the constant of proportionality being the capacitance C, measured in Farads (F). Since current...
4) An ideal LC circuit comprises an ideal inductor having inductance L, a capacitor having capacitance C, and a switch. The circuit does not include a battery nor does it include any resistance The switch is initially open and the initial charge on the capacitor is Qo. At time t o the switch is closed. Determine expressions (L, C, Qo) for the i) charge on the capacitor, and ii) the current flowing through the circuit at the following times: a)...
In an LC circuit, at time zero, there is a non-zero charge in the capacitor and a non-zero current. As the circuit oscillates, the energy in the circuit can be found with: The inductance of the inductor Starting current att=0 The starting voltage at t-0 The capacitance of the capacitor
