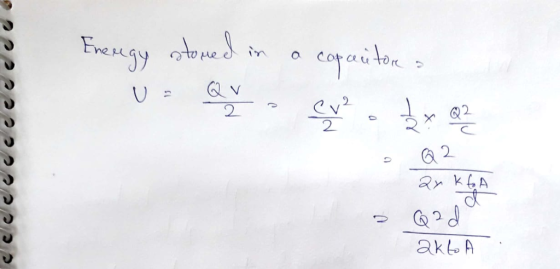

Write down the energy stored in the dielectric material inside the parallel plates. Show the electric...

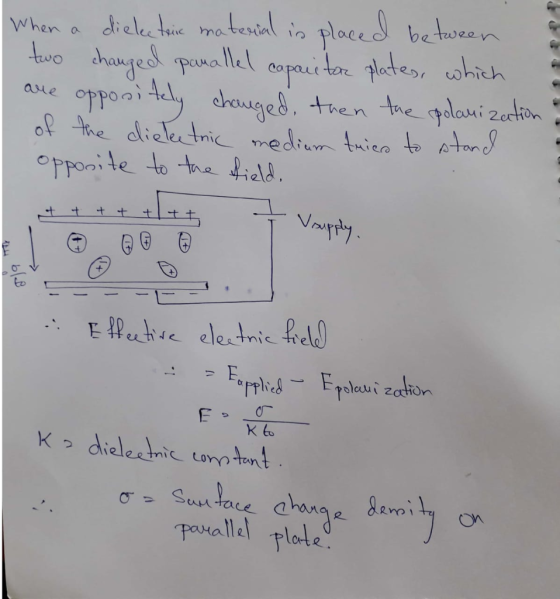

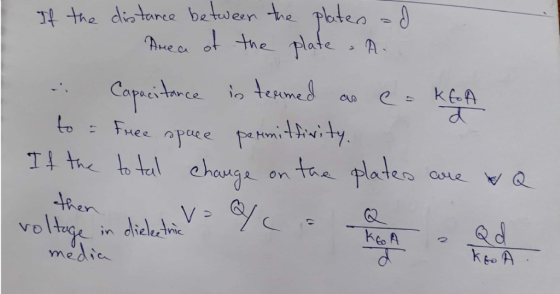

Write down the energy stored in the dielectric material inside the parallel plates. Show the electric field and the polarization. Write down the electric field and voltage equations of the system.
Homework Answers
Add Answer to:
Write down the energy stored in the dielectric material inside
the parallel plates. Show the electric...
A dielectric material is inserted between the charged plates of a parallel-plate capacitor. Do the following...
A dielectric material is inserted between the charged plates of a parallel-plate capacitor. Do the following quantities increase, decrease, or remain the same as equilibrium is reestablished? 1. Charge on plates (plates remain connected to battery) 2. Electric potential energy (plates isolated from battery before inserting dielectric) 3.Capacitance (plates isolated from battery before inserting dielectric) 4. Voltage between plates (plates remain connected to battery) 5. Charge on plates (plates isolated from battery before inserting dielectric) 6. Capacitance (plates remain connected...
A parallel plate capacitor is made of plates of area 0.05 m? each. The plates are...
A parallel plate capacitor is made of plates of area 0.05 m? each. The plates are separated by a distance of 0.200 mm. Initially, the space between the plates is filled with air. (a) What is the capacitance of this air-filled capacitor? (b) If the electric field inside the capacitor exceeds 3.00 x 106 V/m, the air undergoes electrical break- down. (This maximum field is known as the dielectric strength of air.) From this, calculate the maxi- mum voltage (potential...

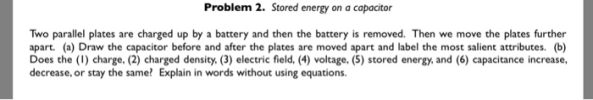

Problem 2. Stored energy on a capocitor Two parallel plates are charged up by a battery...
Problem 2. Stored energy on a capocitor Two parallel plates are charged up by a battery and then the battery is removed. Then we move the plates further apart. (a) Draw the capacitor before and after the plates are moved apart and label the most salient attributes. (b) Does the (1) charge, (2) charged density. (3) electric field, (4) voltage, (5) stored energy, and (6) capacitance increase, decrease, or stay the same? Explain in words without using equations.
dielectric constant of the paper is 3.5 The plates of a parallel plate capacitor are 4...
dielectric constant of the paper is 3.5
The plates of a parallel plate capacitor are 4 cm wide and 6 cm long. The plates are separated by a 1.8-mm-thick layer of paper (a) Calculate the capacitance of the device (in pF) using the dielectric constant of paper from this table. 0.0836 X pF (b) Any dielectric material other than a vacuum has a maximum electric field that can be generated in the dielectric material before it physically or chemically breaks...
A parallel-plate vacuum capacitor is connected to a batteryand charged until the stored electric energy is...
A parallel-plate vacuum capacitor is connected to a battery and charged until the stored electric energy is U. The
battery is removed, and then a dielectric material with dielectric
constant K is inserted
into the capacitor, filling the space between the plates. Finally,
the capacitor is fully discharged through a resistor (which is
connected across the capacitor terminals).A.)Find Ur, the
the energy dissipated in the resistor.Express your answer in terms
of U and other
given quantities.B.) Consider the same situation...
Pease show the steps of the solutions There are 2 square parallel conducting plates separated by...
Pease show the steps of the solutions
There are 2 square parallel conducting plates separated by 0.5 cm with a length of 10cm on one side. The total charge on the positive plate is +10/ mu C. Determine the following: Electric field between the square plates Voltage, capacitance, and energy storage Voltage, capacitance, and energy storage after a dielectric with K = 2.8 is inserted between the two plates
Which statements are true for two oppositely charged, isolated parallel plates: C capacitance, U-stored energy (Q...
Which statements are true for two oppositely charged, isolated parallel plates: C capacitance, U-stored energy (Q and -Q-charge on the plates). Note: Isolated plates can not lose their charge. True When the distance is doubled, U increases. False When the distance is halved, Q stays the same. False Inserting a dielectric increases C. True When the distance is doubled, C increases. True Increasing the distance increases the Electric field. True Inserting a dielectric decreasesU True Inserting a dielectric increasesQ. Isolated...
A parallel plate capacitor has square plates with sides of length 11 cm. The distance between...
A parallel plate capacitor has square plates with sides of length 11 cm. The distance between the plates is 2 mm. The plates are charged up to 20volts. Part A What is the electric field between the plates? Express your answer using three significant figures. Electric field = N/C Part B What is the amount of charge on each plate? charge = C Part C What is the capacitance? Capacitance = μF Part D What is the energy stored by...
A parallel plate capacitor is filled with a material of dielectric constant K and conductivity g....
A parallel plate capacitor is filled with a material
of dielectric constant K and conductivity g. It is charged with an
initial charge Q. (a) Show that the charge leaks off the plates as
an exponential function of time. (b) Show that the total joule heat
production equals the electrostatic energy stored initially. (c)
What is the time constant for the discharge if the material is
silicon oxide? (See tables 4-1 and 7-1)
table 4-1
table 7-1
the surface charge...
Calculate the electric energy stored in each capacitor, (a) if the plates are separated by vacuum,...
Calculate the electric energy
stored in each capacitor, (a) if the plates are separated by
vacuum, (b) or if separated by paper as a dielectric.
A parallel plate capacitor is made of plates of area 0.05 m? each. The plates are separated by a distance of 0.200 mm. Initially, the space between the plates is filled with air. (a) What is the capacitance of this air-filled capacitor? (b) If the electric field inside the capacitor exceeds 3.00 x 106 V/m, the air undergoes electrical break- down. (This maximum field is known as the dielectric strength of air.) From this, calculate the maxi- mum voltage (potential...
Problem 2. Stored energy on a capocitor Two parallel plates are charged up by a battery and then the battery is removed. Then we move the plates further apart. (a) Draw the capacitor before and after the plates are moved apart and label the most salient attributes. (b) Does the (1) charge, (2) charged density. (3) electric field, (4) voltage, (5) stored energy, and (6) capacitance increase, decrease, or stay the same? Explain in words without using equations.
dielectric constant of the paper is 3.5
The plates of a parallel plate capacitor are 4 cm wide and 6 cm long. The plates are separated by a 1.8-mm-thick layer of paper (a) Calculate the capacitance of the device (in pF) using the dielectric constant of paper from this table. 0.0836 X pF (b) Any dielectric material other than a vacuum has a maximum electric field that can be generated in the dielectric material before it physically or chemically breaks...
A parallel-plate vacuum capacitor is connected to a battery and charged until the stored electric energy is U. The
battery is removed, and then a dielectric material with dielectric
constant K is inserted
into the capacitor, filling the space between the plates. Finally,
the capacitor is fully discharged through a resistor (which is
connected across the capacitor terminals).A.)Find Ur, the
the energy dissipated in the resistor.Express your answer in terms
of U and other
given quantities.B.) Consider the same situation...
Pease show the steps of the solutions
There are 2 square parallel conducting plates separated by 0.5 cm with a length of 10cm on one side. The total charge on the positive plate is +10/ mu C. Determine the following: Electric field between the square plates Voltage, capacitance, and energy storage Voltage, capacitance, and energy storage after a dielectric with K = 2.8 is inserted between the two plates
Which statements are true for two oppositely charged, isolated parallel plates: C capacitance, U-stored energy (Q and -Q-charge on the plates). Note: Isolated plates can not lose their charge. True When the distance is doubled, U increases. False When the distance is halved, Q stays the same. False Inserting a dielectric increases C. True When the distance is doubled, C increases. True Increasing the distance increases the Electric field. True Inserting a dielectric decreasesU True Inserting a dielectric increasesQ. Isolated...
A parallel plate capacitor is filled with a material
of dielectric constant K and conductivity g. It is charged with an
initial charge Q. (a) Show that the charge leaks off the plates as
an exponential function of time. (b) Show that the total joule heat
production equals the electrostatic energy stored initially. (c)
What is the time constant for the discharge if the material is
silicon oxide? (See tables 4-1 and 7-1)
table 4-1
table 7-1
the surface charge...
Calculate the electric energy
stored in each capacitor, (a) if the plates are separated by
vacuum, (b) or if separated by paper as a dielectric.
