An 0.80-m conducting rod is dropped from rest from a bridge 25.0 m above the surface...

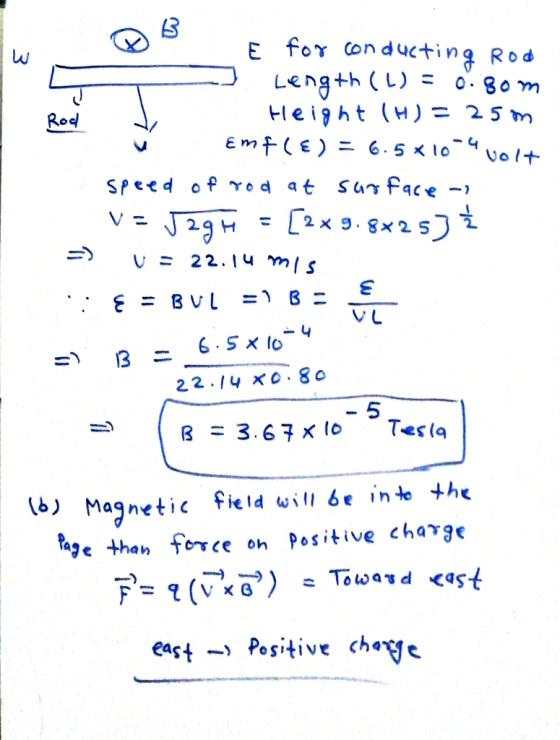

An 0.80-m conducting rod is dropped from rest from a bridge 25.0 m above the surface below. As it falls, it remains parallel to the ground and its length remains along the east-west direction. Just before the rod hits the ground below, the induced emf across its length is 6.5×10-4 V. Assuming the earth’s magnetic field at this location points due north.
-
a) Determine the magnitude of the earth’s magnetic field at this location (just above the ground).
-
b) Which end of the rod, east or west, is positively charged?
