11. (10 pts). Water flows through a horizontal pipe with an inner diameter of 5.22 cm...

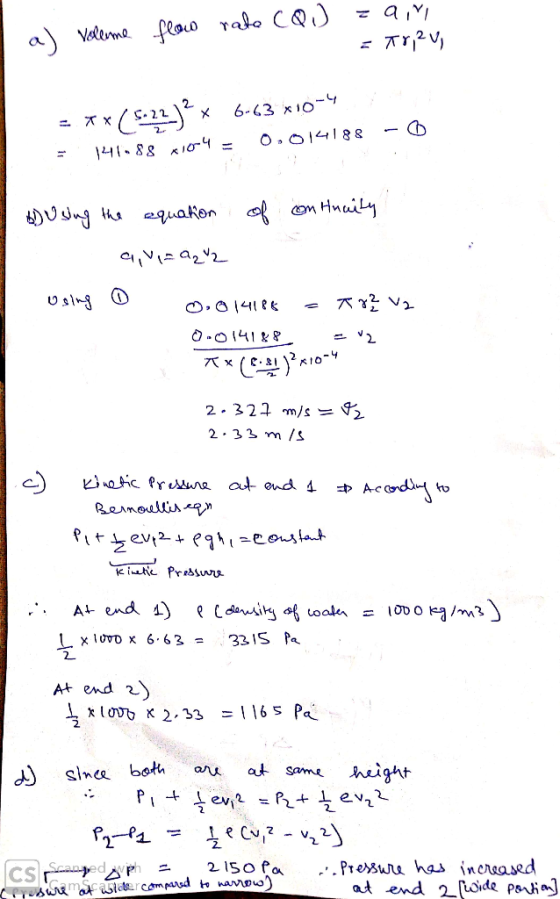

11. (10 pts). Water flows through a horizontal pipe with an inner diameter of 5.22 cm at a speed of 6.63 m/s. The pipe eventually widens to a diameter of 8.81 cm.
a) Determine the volume flow rate for the water.
b) How fast is the water moving in the wide portion of the pipe?
c) What is the kinetic pressure in each portion of the pipe?
d) Did the water pressure change in the wide portion of the pipe compared to the narrow portion?

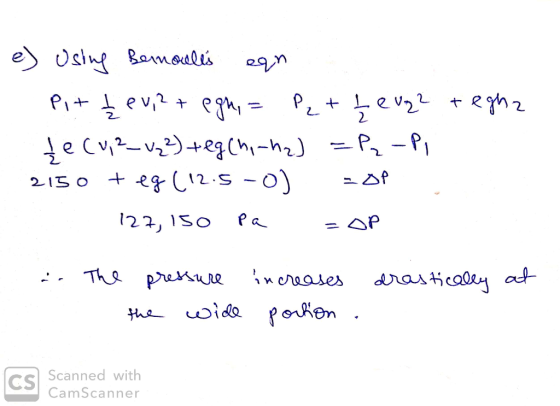

e) If the narrow portion of the pipe were located 12.5 m above the wide portion, determine the effect on the water pressure in the wide portion.
Homework Answers
Add Answer to:
11. (10 pts). Water flows through a horizontal pipe with an
inner diameter of 5.22 cm...
Water flows at speed of 6 m/s through a horizontal pipe of diameter 3.5 cm. The...
Water flows at speed of 6 m/s through a horizontal pipe of
diameter 3.5 cm. The gauge pressure P1 of the water in the pipe is
1.7 atm. A short segment of the pipe is constricted to a smaller
diameter of 2.4 cm .
What is the gauge pressure of the water flowing through the
constricted segment? Atmospheric pressure is 1.013 × 10^5 Pa. The
density of water is 1000 kg/m^3 . The viscosity of water is
negligible. Answer in...
A 7.5-cm-diameter horizontal pipe gradually narrows to 5.0 cm . When water flows through this pipe...
A 7.5-cm-diameter horizontal pipe gradually narrows to 5.0 cm . When water flows through this pipe at a certain rate, the gauge pressure in these two sections is 31.0 kPa and 25.0 kPa , respectively. What is the volume rate of flow? Q= ____ m^3/s Please explain step by step.
A 6.0-cm-diameter horizontal pipe gradually narrows to 4.0 cm . When water flows through this pipe...
A 6.0-cm-diameter horizontal pipe gradually narrows to 4.0 cm . When water flows through this pipe at a certain rate, the gauge pressure in these two sections is 33.0 kPa and 24.0 kPa , respectively. What is the volume rate of flow
A 6.5-cm-diameter horizontal pipe gradually narrows to 5.0 cm . When water flows through this pipe...
A 6.5-cm-diameter horizontal pipe gradually narrows to 5.0 cm . When water flows through this pipe at a certain rate, the gauge pressure in these two sections is 33.0 kPa and 22.0 kPa , respectively. What is the volume rate of flow?
A 7.0-cm-diameter horizontal pipe gradually narrows to 4.0 cm . When water flows through this pipe...
A 7.0-cm-diameter horizontal pipe gradually narrows to 4.0 cm . When water flows through this pipe at a certain rate, the gauge pressure in these two sections is 32.0 kPa and 24.0 kPa , respectively. What is the volume rate of flow?
A 7.3 cm diameter horizontal pipe gradually narrows to 5.2 cm . When water flows through...
A 7.3 cm diameter horizontal pipe gradually narrows to 5.2 cm . When water flows through this pipe at a certain rate, the gauge pressure in these two sections is 35.0 kPa and 26.0 kPa , respectively.
10. Water flows at a rate of 610.0 liters/min through a horizontal 5.10-cm diameter pipe under...
10. Water flows at a rate of 610.0 liters/min through a horizontal 5.10-cm diameter pipe under a pressure of 6.20x10^5 Pa. At one point, calcium deposits reduce the cross-sectional area of the pipe to 5.50 cm². What is the pressure at this point?
A 7.5-cm-diameter horizontal pipe gradually narrows to 5.0 cm . When water flows through this pipe...
A 7.5-cm-diameter horizontal pipe gradually narrows to 5.0 cm . When water flows through this pipe at a certain rate, the gauge pressure in these two sections is 31.0 kPa and 25.0 kPa , respectively. What is the volume rate of flow? Q= ____m^3/s
A 6.4 cm diameter horizontal pipe gradually narrows to 5.4 cm . When water flows through...
A 6.4 cm diameter horizontal pipe gradually narrows to 5.4 cm . When water flows through this pipe at a certain rate, the gauge pressure in these two sections is 30.0 kPa and 21.0 kPa , respectively. A.) What is the volume rate of flow?
A 7.5-cm-diameter horizontal pipe gradually narrows to 4.0 cm . When water flows through this pipe...
A 7.5-cm-diameter horizontal pipe gradually narrows to 4.0 cm . When water flows through this pipe at a certain rate, the gauge pressure in these two sections is 30.0 kPa and 22.0 kPa , respectively. What is the volume rate of flow? Express your answer using two significant figures.
Water flows at speed of 6 m/s through a horizontal pipe of
diameter 3.5 cm. The gauge pressure P1 of the water in the pipe is
1.7 atm. A short segment of the pipe is constricted to a smaller
diameter of 2.4 cm .
What is the gauge pressure of the water flowing through the
constricted segment? Atmospheric pressure is 1.013 × 10^5 Pa. The
density of water is 1000 kg/m^3 . The viscosity of water is
negligible. Answer in...
