Construct a B+ tree for the following set of key values under the assumption that the...

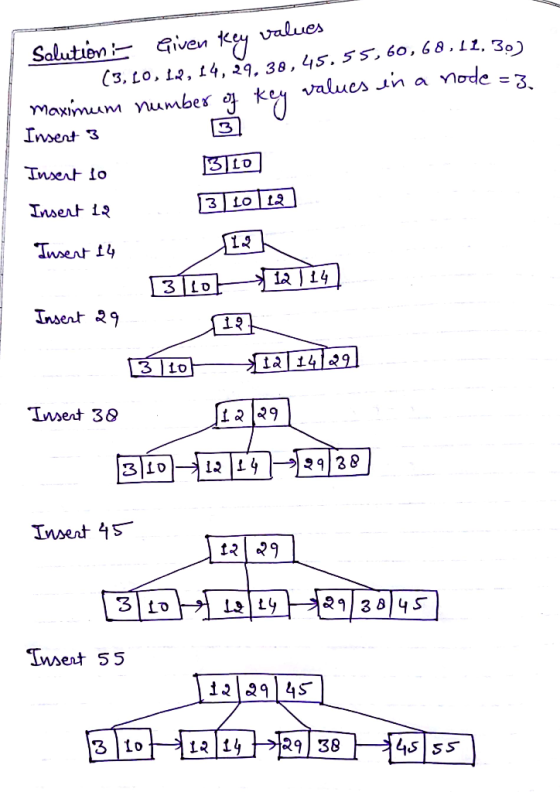

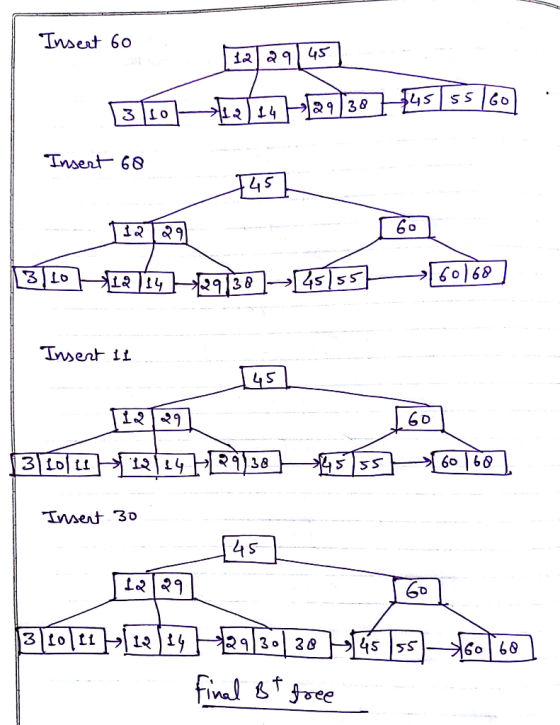

Construct a B+ tree for the following set of key values under the assumption that the number of key values that fit in a node is 3.
Key values (3,10,12,14,29,38,45,55,60,68,11,30) S
how the step involved in inserting each key value.
