To practice Problem-Solving Strategy 26.1 Resistors in Series and Parallel. Two bulbs are connected in parallel...
To practice Problem-Solving Strategy 26.1 Resistors in Series and Parallel.

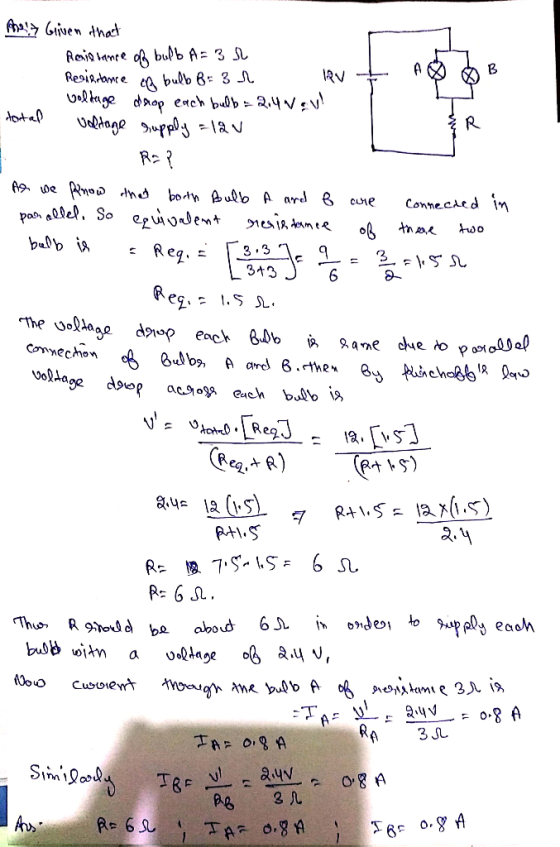

Two bulbs are connected in parallel across a source of emf EEEMF = 12.0 VV with a negligible internal resistance. One bulb has a resistance of 3.0 ΩΩ , and the other is 3.0 ΩΩ . A resistor RRR is connected in the circuit in series with the two bulbs. What value of RRR should be chosen in order to supply each bulb with a voltage of 2.4 VV ?
What is the current through each individual bulb? Let Ib1Ib1I_b1 be the current through the bulb of resistance 3.0 ΩΩ , and Ib2Ib2I_b2 the current through the bulb of resistance 3.0 ΩΩ .
Enter each current value in amperes using three significant figures and separated by commas.
