A spring of negligible mass has a force constant of k=1600 N m. You place the...

A spring of negligible mass has a force constant of k=1600 N m. You place the spring vertically with one end on the floor. You then drop a 1.20 kg book onto it from a height of 0.80 m above the spring. Find the maximum distance the spring will be compressed. Caution: This is tricky, think about it carefully.

The steps are:

1. Draw a picture.

2. Identify the system.

3. FBDs

4. Newton’s Second Law

5. Isolated or not?

6. Initial and Final

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

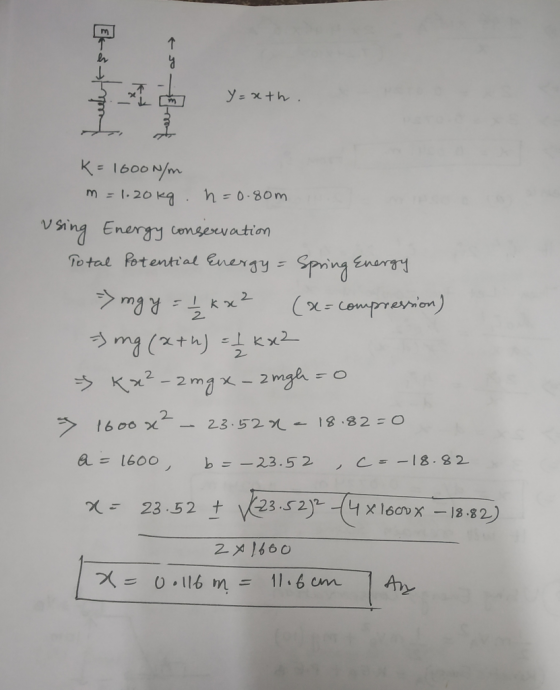

Answer #1

0 0
Add a comment
