A 100 N box sits on a 30 degree incline. If the static coefficient of friction...
A 100 N box sits on a 30 degree incline. If the static coefficient of friction is 0.1, what is the magnitude of the static frictional force acting on the box?
Select one:
a. 5.0 N
b. 8.7 N
c. 10N
Homework Answers

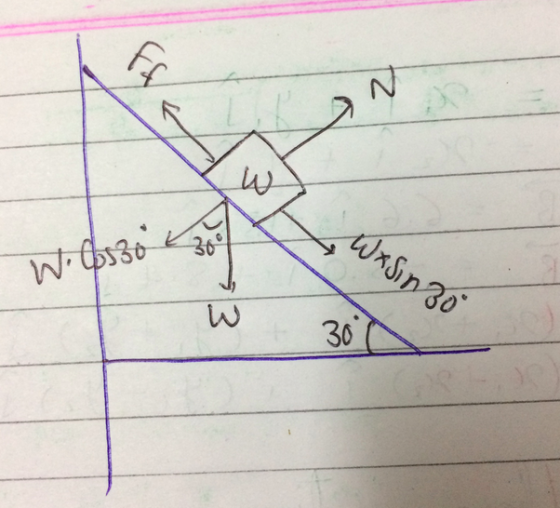

From FBD, Using Force balance along the incline:
Ff = us*N
Ff = us*W*cos A
Using given values:
Ff = 0.1*100**cos 30 deg
Ff = 8.66 N = 8.7 N
Correct option is B.
Let me know if you've any query.
Add Answer to:
A 100 N box sits on a 30 degree incline. If the static
coefficient of friction...
A cardboard box sits on top of an asphalt driveway. The coefficient of static friction is...
A cardboard box sits on top of an asphalt driveway. The coefficient of static friction is 0.8 and the coefficient of friction is 0.3 . The mass of the box is 5 Kg and a horizontal force of 9 N is applied. What is the Gravitational Force? What is the Frictional Force? What is the Acceleration?
A 5 kg block rests on a 30 degree incline. The coefficient of static friction between...
A 5 kg block rests on a 30 degree incline. The coefficient of static friction between the block and the incline is .20. How large a horizontal force must push on the block if the block is to be on the verge of sliding A) up the incline and B) down an incline Answer: A) 43 N B) 16.6 N What would be the work to get me to this answer?
The coefficient of static friction between the 3.00 kg crate and the 33 degree incline of...
The coefficient of static friction between the 3.00 kg crate and the 33 degree incline of above Fig. is 0.250. What minimum force F(-N) must be applied to the crate perpendicular to the incline to prevent the crate form sliding down the incline?
A box remains at rest on an incline. The force of gravity acting on the box...
A box remains at rest on an incline. The force of gravity acting on the box is directed down and has a magnitude of 10.0 N. The angle the incline makes with the horizontal is 40.0 degrees - this is the maximum angle the incline can have before the box starts to slide. Calculate the magnitude of the normal force acting on the box. Calculate the magnitude of the force of static friction acting on the box. Calculate the value...
A mass of 8.4 kg is placed on a incline with friction. The coefficient static friction...
A mass of 8.4 kg is placed on a incline with friction. The coefficient static friction is 0.9 and the coefficient of kinetic friction is 0.44. If the angle of inclination of the incline is 63.1 degrees, what is the amount of friction acting on it in Newtons?
A 10.0kg mass is placed on a 25 degree incline and friction keeps it from sliding....
A 10.0kg mass is placed on a 25 degree incline and friction keeps it from sliding. The coefficient of static friction in this case is 0.580, and the coefficient of sliding friction is 0.520. What is the frictional force in this situation? Please show your work. Thanks!
An 85 kg box rests on a horizontal surface. The coefficient of static friction between the...
An 85 kg box rests on a horizontal surface. The coefficient of static friction between the box and the surface is 0.50. A horizontal force 250 N force is applied to the box. What is the magnitude of the static friction force on the box? A.42N B.250N C.16.5N D.130N E.0.00N
A 50-N crate sits on a horizontal floor where the coefficient of static friction between the...
A 50-N crate sits on a horizontal floor where the coefficient of static friction between the crate and the floor is .50 and that of kinetic is .40 gradually increasing horizontal force to the right is applied to the crate how would you describe the motion of the box at the moment forces reached to 20 N (a) Not moving (b) not moving bit anootbto move (c) moving with a constant speed (d) Accelerating
3.) An 80kg box is being lowered down a ramp with a 15 degree incline. The...
3.) An 80kg box is being lowered down a ramp with a 15 degree incline. The coefficient of static friction between the box and the ramp is .25. a) What is the Normal force the ramp applies to the box? b) What is the force due to friction on the box? c) What is the Force up the ramp required to keep the box at constant velocity?
John is pushing a 50 kg box with a force of 100 N. The maximum static...
John is pushing a 50 kg box with a force of 100 N. The maximum static frictional force is 125 N. a) Draw a free body diagram. b) What is the coefficient of friction between the box and ground? Suppose John then pushes the box with Sally on top of it, who is 80 kg. The box comes to a stop and Sally then holds a present of an unknown mass. The maximum static frictional force is found to be...
The coefficient of static friction between the 3.00 kg crate and the 33 degree incline of above Fig. is 0.250. What minimum force F(-N) must be applied to the crate perpendicular to the incline to prevent the crate form sliding down the incline?
A box remains at rest on an incline. The force of gravity acting on the box is directed down and has a magnitude of 10.0 N. The angle the incline makes with the horizontal is 40.0 degrees - this is the maximum angle the incline can have before the box starts to slide. Calculate the magnitude of the normal force acting on the box. Calculate the magnitude of the force of static friction acting on the box. Calculate the value...
3.) An 80kg box is being lowered down a ramp with a 15 degree incline. The coefficient of static friction between the box and the ramp is .25. a) What is the Normal force the ramp applies to the box? b) What is the force due to friction on the box? c) What is the Force up the ramp required to keep the box at constant velocity?
