A long thin wire carrying a current I1 =10 A (out of page) is located at...

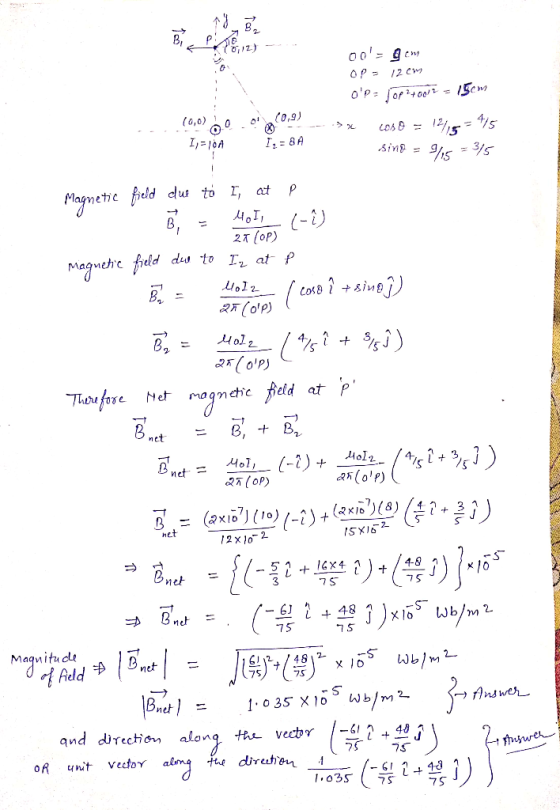

A long thin wire carrying a current I1 =10 A (out of page) is located at (0, 0) and another wire carrying a current I2 =8A (into the page) is located at (x=9cm, y=0). Find the magnitude and direction the magnetic field due to these two currents at (x=0, y=12 cm).Your solution must include a neat diagram.
Homework Answers
Add Answer to:
A long thin wire carrying a current I1 =10 A (out of page) is
located at...
A long thin wire carrying a current I, -10 A (out of page) is located at...
A long thin wire carrying a current I, -10 A (out of page) is located at (0, 0) and another wire carrying a current I, -8A (into the page) is located at (x-9cm, y-0). Find the magnitude and direction the magnetic field due to these two currents at (x=0, y-12 cm) Your solution must include a neat diagram.
A long, straight wire carrying a current of I1 =5.0 A perpendicular to the xy plane...
A long, straight wire carrying a current of I1 =5.0 A perpendicular to the xy plane (page on a table) intersects the x-axis at the origin and points +z direction (out of page). A second, long wire carrying I2 = 12 A intersects the x-axis at x= 6.0 cm and points -z direction (into the page). Find the direction and magnitude of the net magnetic field due to these two currents at (x=0, y= 8.0 cm). First draw a neat...
A long, straight wire carrying a current of I1 =5.0 A perpendicular to the xy plane...
A long, straight wire carrying a current of I1 =5.0 A perpendicular to the xy plane (page on a table) intersects the x-axis at the origin and points +z direction (out of page). A second, long wire carrying I2 = 12 A intersects the x-axis at x= 6.0 cm and points -z direction (into the page). Find the direction and magnitude of the net magnetic field due to these two currents at (x=0, y= 8.0 cm). First draw a neat...
A long, straight wire carrying a current I1 is placed on a horizontal table in front...
A long, straight wire carrying a current I1 is placed on a horizontal table in front of you and the direction of the current points +x axis. The magnetic field produced by the current I1 at a point 5 cm above the wire is 0.2 T. A second parallel wire carrying a current I2 = 3I1 is placed 10 cm above the first wire and the direction of the current also points +x axis. What is the direction of the...
A long straight wire parallel to the y-axis carries a current of I1 = 3.6 A...
A long straight wire parallel to the y-axis carries a current of I1 = 3.6 A in the -y-direction crosses the x-axis at a point that is 12.0 cm to the left of the origin. Another long straight wire that is 8.40 cm to the right of the origin on the x-axis carries a current of I2 = 4.2 into the page. a) What is the net magnetic field (magnitude and direction) produced by these currents at the origin? b)...
A 10 m long wire that is fixed (stationary) carries a current I1 = 10 A...
A 10 m long wire that is fixed (stationary) carries a current
I1 = 10 A to the right, as
shown in the figure.
a) Find an expression for the intensity of the magnetic field
generated by this long wire at the observation point with
coordinates (0, - y0 , 0) in
terms of the
current I1
and y0
b) What is the direction of the magnetic field generated by this
wire? (Entering, leaving the page; right, left, up or down)
c)...
A long wire carrying a 10 A current perpendicular to the xy plane intersects the x-axis...
A long wire carrying a 10 A current perpendicular to the xy plane intersects the x-axis at x= 4.0 cm. A second, parallel wire carrying 5.0 A current intersects the x-axis at 10 cm. At what point or points on the x-axis is the magnetic field zero if the two currents are in the opposite directions? Your solution must include a neat diagram.
A long wire carrying a 10 A current perpendicular to the xy plane intersects the x-axis...
A long wire carrying a 10 A current perpendicular to the xy plane intersects the x-axis at x= 4.0 cm. A second, parallel wire carrying 5.0 A current intersects the x-axis at 10 cm. At what point or points on the x-axis is the magnetic field zero if the two currents are in the opposite directions? [similar to HW 24-10] Your solution must include a neat diagram.
Two long, parallel wires carry currents of I1 = 2.85 A and I2 = 5.45 A...
Two long, parallel wires carry currents of I1 = 2.85 A and I2 =
5.45 A in the directions indicated in the figure below, where d =
19.5 cm. (Take the positive x direction to be to the right.)
(a) Find the magnitude and direction of the magnetic field at a
point midway between the wires.
magnitude______ μT
direction________ ° counterclockwise from the +x axis
(b) Find the magnitude and direction of the magnetic field at
point P, located d =...
A long straight wire carrying a current I1 is near a wire loop as shown.
A long straight wire carrying a current I1 is near a wire loop as shown. For each part, determine whether the magnetic flux Φ through the loop due to Ii is into the page, out of the page or zero, and whether the current 12 induced in the loop is clockwise, counterclockwise or zero. a) I1 is constant to the left and the loop is moving toward the wireΦ: into page/out of page/zero I2: clockwise/counterclockwise/zero b) I1 is increasing to the right Φ: into...
A long thin wire carrying a current I, -10 A (out of page) is located at (0, 0) and another wire carrying a current I, -8A (into the page) is located at (x-9cm, y-0). Find the magnitude and direction the magnetic field due to these two currents at (x=0, y-12 cm) Your solution must include a neat diagram.
A 10 m long wire that is fixed (stationary) carries a current
I1 = 10 A to the right, as
shown in the figure.
a) Find an expression for the intensity of the magnetic field
generated by this long wire at the observation point with
coordinates (0, - y0 , 0) in
terms of the
current I1
and y0
b) What is the direction of the magnetic field generated by this
wire? (Entering, leaving the page; right, left, up or down)
c)...
Two long, parallel wires carry currents of I1 = 2.85 A and I2 =
5.45 A in the directions indicated in the figure below, where d =
19.5 cm. (Take the positive x direction to be to the right.)
(a) Find the magnitude and direction of the magnetic field at a
point midway between the wires.
magnitude______ μT
direction________ ° counterclockwise from the +x axis
(b) Find the magnitude and direction of the magnetic field at
point P, located d =...
