Methane enters a 3.00-cm ID pipe at 30.0°C and 10.0 bar with an average velocity of...

Methane enters a 3.00-cm ID pipe at 30.0°C and 10.0 bar with an average velocity of 4.00 m/s and emerges at a point 200.0 m lower than the inlet at 30.0°C and 9.00 bar. Calculate deltaEk and , deltaEp assuming that the methane behaves as an ideal gas.

engineering Chemical-Engineering

Add a comment Improve this question Transcribed image text

Answer 1

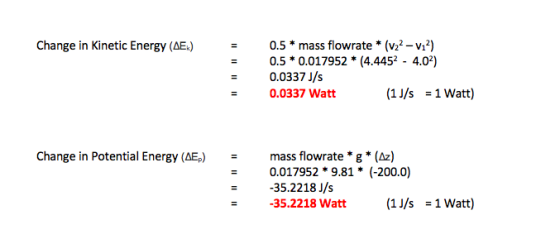

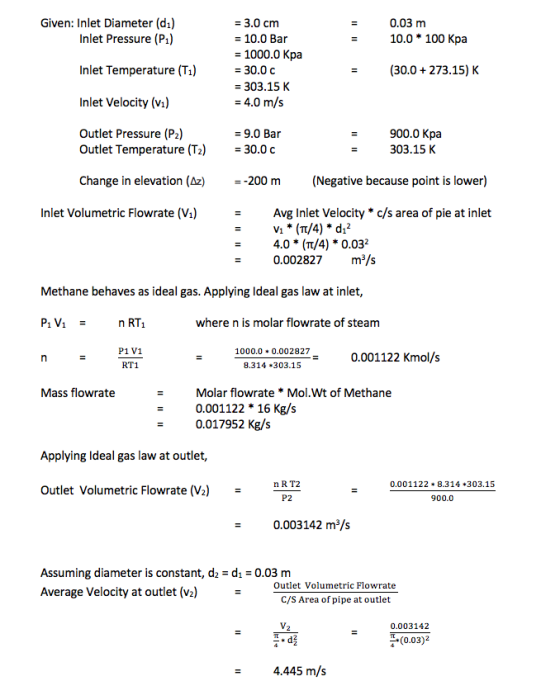

Answer #1

Add a comment

Answer 2
