Question

Sag Vertical Curve) An existing highway-railway at-grade crossing is being redesigned as grade separated to improve traffic operations. The railway must remain at the same elevation. The highway is being reconstructed to travel under the railway. The underpass will be a sag curve that has an initial grade of -2% and a final grade of 2%. The PVI of the sag curve will be centered under the railway (a symmetrical alignment). The sag curve design speed is 45 mi/h. How many feet below the railway should the curve PVI be located?

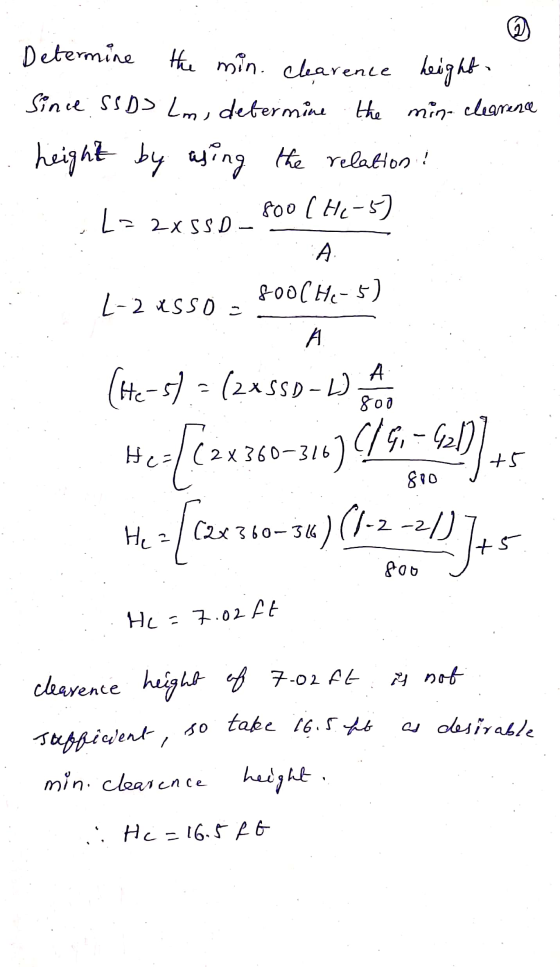

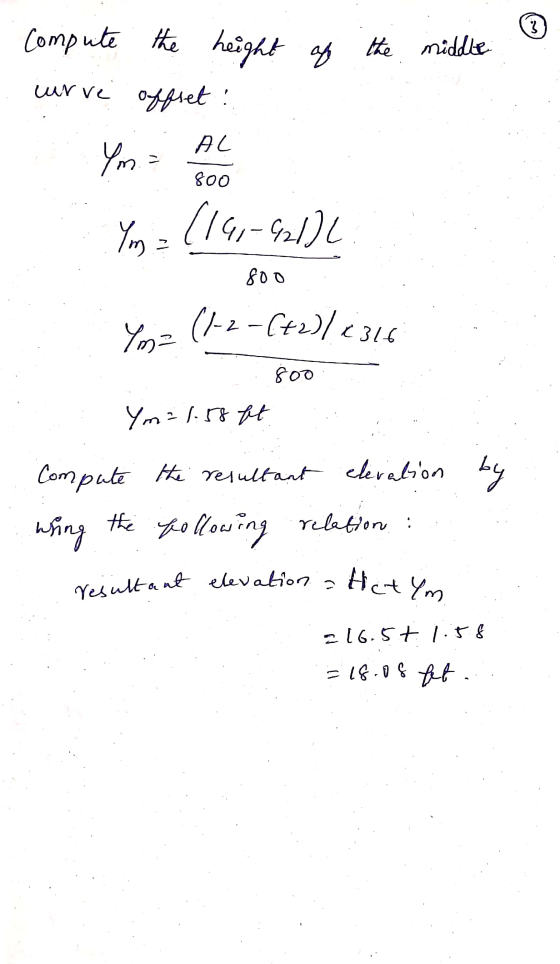

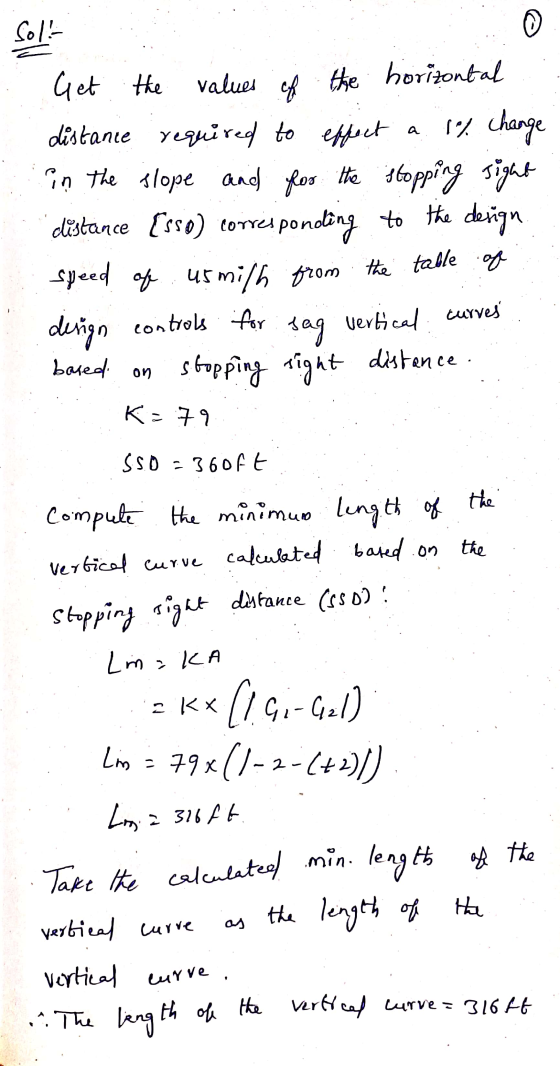

Answer 1
