Laser power losses in optical fibers are due to either intrinsic or extrinsic factors. • What...
Laser power losses in optical fibers are due to either intrinsic or extrinsic factors.

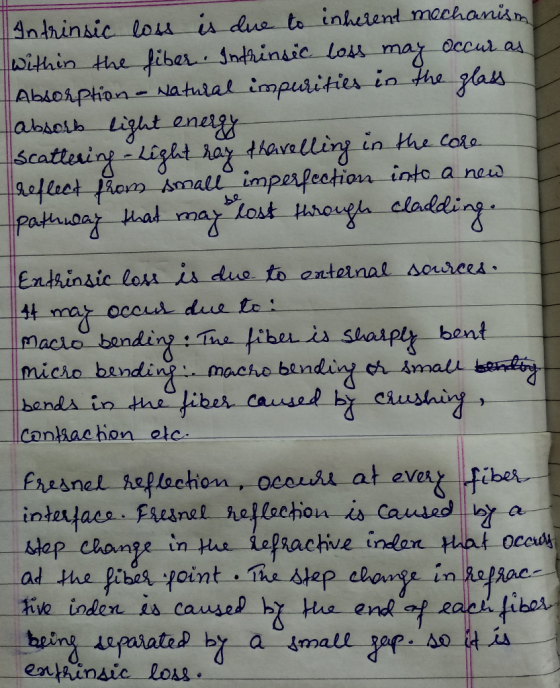

• What is the difference between intrinsic and extrinsic losses?
• Fresnel losses are caused by inevitable reflections at the interface of the fiber, increasing with the difference between the core index of refraction and that of the outside medium. Explain why this is considered an extrinsic loss and not an intrinsic one?
Homework Answers
