Laboratory measurements of an RTD produce the following data. If T0 is chosen as 20°C, estimate...

Laboratory measurements of an RTD produce the following data. If T0 is chosen as 20°C, estimate R0 and α0 for the device under test.

Temperature (°C)

Resistance (Ω)

0

890

100

1440
engineering   Electrical-Engineering
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

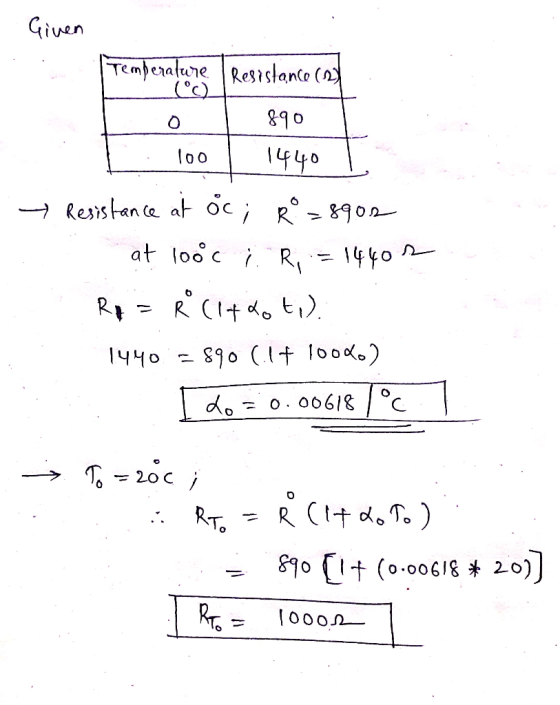

Answer #1

0 0
Add a comment
