Use LTSpice to simulate the circuits studied in the theoretical section. Use an LT1638 op-amp for...
- Use LTSpice to simulate the circuits studied in the theoretical section. Use an LT1638 op-amp for your simulations, with power supplies of +/-5V. Make sure you label your input and output nodes.

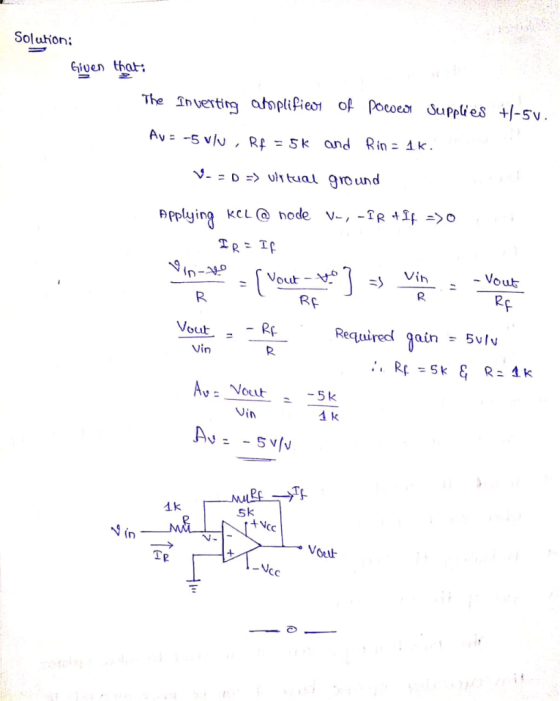

- Is an inverting amplifier circuit with a gain Av = -5 V/V, Rf=5k and Rin = 1k
Homework Answers
Add Answer to:
Use LTSpice to simulate the circuits studied in the theoretical
section. Use an LT1638 op-amp for...
5.8 a) Design an inverting amplifier with a gain of 4. Use an ideal op amp,...
5.8 a) Design an inverting amplifier with a gain of 4. Use an ideal op amp, a resistor in the feedback path, and 12 V power supplies. b) Using your design from part (a), determine the range of input voltages that will keep the op amp in its linear operating region. c) Suppose you wish to amplify a 2 V signal, using your design from part (a) with a variable feedback resistor. What is the largest value of feedback resistance...
3. Operational Amplifier (op-amp) I The op-amp has several applications such in analog computers,...
3. Operational Amplifier (op-amp) I The op-amp has several applications such in analog computers, instrumentation ts use as an inverting amplifier results are shown below: Table 3.1 OP-Amp Inverting amplifier results Rf= 100 Kn Gain Nominal 100 VN Measured gain 53.1 95.4 95.7 Frequency KHz 0.1 0.2 0.5 1.0 2.0 5.0 10.0 20.0 50.0 100.0 200.0 500.0 1000.0 Gain Nominal 10 V/V Measured gain 11.2 11.6 11.7 11.4 11.6 11.9 11.6 11.6 11.4 10.9 9.0 4.7 8.3 95.6 95.4 95.2...
Inverting Amplifier Figure 4.2 shows the fundamental configuration of Op-Amp in which it is used as...
Inverting Amplifier Figure 4.2 shows the fundamental configuration of Op-Amp in which it is used as an inverting amplifier. In this configuration the ratio, R2/R1 completely controls the effective gain of the amplifier and it can be verified that the output voltage is equal to Vo = - (R2/R1)Vin R2 100K Q-10V R1 Vinow 20K 1 2 7 V Vo 3 -10v Figure 4.2 Part 1 - Inverting Amp: Procedure 1. Construct the circuit of figure 4.2 using Op-Amp IC...
2. Design a non-inverting op-amp circuit with two resistors under the following conditions: a. The gain of the ampl...
2. Design a non-inverting op-amp circuit with two resistors under the following conditions: a. The gain of the amplifier must be +10 b. The input range is ± 2V c. The total power consumed by the resistors must be less than 100 mW Show all the calculations required to design the amplifier circuit with the shown specifications.in details Use MULTISIM to create the op-amp circuit and print a fully labelled diagram of the circuits with the voltmeters displays showing both...
KEE 211/212 HW #05 -- Operational Amplifiers 2 of 10 Inverting Op-Amp Circuits Learning Goal: To...
KEE 211/212 HW #05 -- Operational Amplifiers 2 of 10 Inverting Op-Amp Circuits Learning Goal: To analyze op-amp circuits that invert the voltage applied to the negative op-armp terminal. Part A - Calculating the output voltage of an inverting op-amp circuit Before proceeding, review inverting op-amp circuits and the ideal op-amp assumptions. For the circuit shown (Figure 1), determine Vo when R = 8.0 k, R2= 9.0 k V, = 1870 iV , and Ve = 15 V Express your...
Laboratory 1: operation amplifier characteristics A. Objectives: 1. To study the basic characteri...
thanks
Laboratory 1: operation amplifier characteristics A. Objectives: 1. To study the basic characteristics of an operational amplifier 2. To study the bias circuit of an operational amplifier B. Apparatus: 1. DC Power supply 2. Experimental board and corresponding components 3. Electronic calculator (prepared by students) 4. Digital camera (prepared by students for photo taking of the experimental results) 5. Laptop computer with the software PicoScope 6 and Microsoft Word installed. 6. PicoScope PC Oscilloscope and its accessories. 7. Multimeter...
pts) Consider the following Op Amp Circuit, use Op Amp rules to calculate vo vi and...
pts) Consider the following Op
Amp Circuit, use Op Amp rules to calculate vo vi and vx vi . hint:
you may need to introduce a variable Vx in your KCL equations. Use
R1 = 1Ω, R2 = R3 = R4 = 2kΩ, Rf = 3kΩ.
1. (40 pts) Consider the following Op Amp Circuit, use Op Amp rules to calculated and hint: you may need to introduce a variable Vx in your KCL equations. Use R1 = 12, R2...
Part A only please Part A - Analysis of an op-amp circuit using a realistic circuit...
Part A only please
Part A - Analysis of an op-amp circuit using a realistic circuit model Learning Goal For an ideal op-amp, we assume that the current flowing into the More realistically, calculatei in the circuit given when R1 9.6 k, R2 -4.2 kQ R3-95 ko. V,-2920 μν , and Voe-15 V . Assume that the op-amp can be modeled with an input resistance of Ri-6.00 M, an output resistance of Ro- 9.5 kS2, and an open-loop gain of...
A. (10 pts) Implement the voltage amplifier shown below using an ideal op amp circuit. You have o...
a. (10 pts) Implement the voltage amplifier shown below using an ideal op amp circuit. You have one op amp available for this circuit, and a range of resistors with values from 1 kΩ to 100 ka. Draw the schematic of your op amp circuit, labeling resistor values. Make sure the gain, input resistance, and output resistance of your circuit matches the model in the schematic. R=012 *100v, RL 100 b. (5 pts) Your amplifier circuit should have a frequency...
Easy circuits problem. Design and simulate each of the cases: Ltspice and explanation will be he...
Easy circuits problem.
Design and simulate each of the cases:
Ltspice and explanation will be helpful. Thanks
In this lab you must design a ferrite-core transformer to illustrate the concepts oif mutual coupling and the impedance matching You w be provided with a ferrite core and copper wire to construct a transformer with desired primary, and secondary windings. Your instructor will give you more details on the physical construction of this transformer. Since the signal generators in our lab have...
3. Operational Amplifier (op-amp) I The op-amp has several applications such in analog computers, instrumentation ts use as an inverting amplifier results are shown below: Table 3.1 OP-Amp Inverting amplifier results Rf= 100 Kn Gain Nominal 100 VN Measured gain 53.1 95.4 95.7 Frequency KHz 0.1 0.2 0.5 1.0 2.0 5.0 10.0 20.0 50.0 100.0 200.0 500.0 1000.0 Gain Nominal 10 V/V Measured gain 11.2 11.6 11.7 11.4 11.6 11.9 11.6 11.6 11.4 10.9 9.0 4.7 8.3 95.6 95.4 95.2...
Inverting Amplifier Figure 4.2 shows the fundamental configuration of Op-Amp in which it is used as an inverting amplifier. In this configuration the ratio, R2/R1 completely controls the effective gain of the amplifier and it can be verified that the output voltage is equal to Vo = - (R2/R1)Vin R2 100K Q-10V R1 Vinow 20K 1 2 7 V Vo 3 -10v Figure 4.2 Part 1 - Inverting Amp: Procedure 1. Construct the circuit of figure 4.2 using Op-Amp IC...
2. Design a non-inverting op-amp circuit with two resistors under the following conditions: a. The gain of the amplifier must be +10 b. The input range is ± 2V c. The total power consumed by the resistors must be less than 100 mW Show all the calculations required to design the amplifier circuit with the shown specifications.in details Use MULTISIM to create the op-amp circuit and print a fully labelled diagram of the circuits with the voltmeters displays showing both...
KEE 211/212 HW #05 -- Operational Amplifiers 2 of 10 Inverting Op-Amp Circuits Learning Goal: To analyze op-amp circuits that invert the voltage applied to the negative op-armp terminal. Part A - Calculating the output voltage of an inverting op-amp circuit Before proceeding, review inverting op-amp circuits and the ideal op-amp assumptions. For the circuit shown (Figure 1), determine Vo when R = 8.0 k, R2= 9.0 k V, = 1870 iV , and Ve = 15 V Express your...
thanks
Laboratory 1: operation amplifier characteristics A. Objectives: 1. To study the basic characteristics of an operational amplifier 2. To study the bias circuit of an operational amplifier B. Apparatus: 1. DC Power supply 2. Experimental board and corresponding components 3. Electronic calculator (prepared by students) 4. Digital camera (prepared by students for photo taking of the experimental results) 5. Laptop computer with the software PicoScope 6 and Microsoft Word installed. 6. PicoScope PC Oscilloscope and its accessories. 7. Multimeter...
pts) Consider the following Op
Amp Circuit, use Op Amp rules to calculate vo vi and vx vi . hint:
you may need to introduce a variable Vx in your KCL equations. Use
R1 = 1Ω, R2 = R3 = R4 = 2kΩ, Rf = 3kΩ.
1. (40 pts) Consider the following Op Amp Circuit, use Op Amp rules to calculated and hint: you may need to introduce a variable Vx in your KCL equations. Use R1 = 12, R2...
Part A only please
Part A - Analysis of an op-amp circuit using a realistic circuit model Learning Goal For an ideal op-amp, we assume that the current flowing into the More realistically, calculatei in the circuit given when R1 9.6 k, R2 -4.2 kQ R3-95 ko. V,-2920 μν , and Voe-15 V . Assume that the op-amp can be modeled with an input resistance of Ri-6.00 M, an output resistance of Ro- 9.5 kS2, and an open-loop gain of...
a. (10 pts) Implement the voltage amplifier shown below using an ideal op amp circuit. You have one op amp available for this circuit, and a range of resistors with values from 1 kΩ to 100 ka. Draw the schematic of your op amp circuit, labeling resistor values. Make sure the gain, input resistance, and output resistance of your circuit matches the model in the schematic. R=012 *100v, RL 100 b. (5 pts) Your amplifier circuit should have a frequency...
Easy circuits problem.
Design and simulate each of the cases:
Ltspice and explanation will be helpful. Thanks
In this lab you must design a ferrite-core transformer to illustrate the concepts oif mutual coupling and the impedance matching You w be provided with a ferrite core and copper wire to construct a transformer with desired primary, and secondary windings. Your instructor will give you more details on the physical construction of this transformer. Since the signal generators in our lab have...
